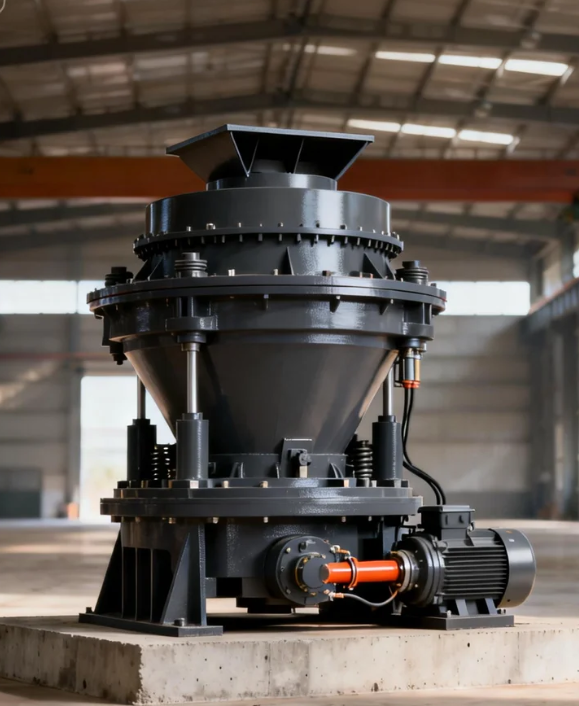

Single Cylinder Cone Crusher CS430 CH430 CS440

The Single Cylinder Cone Crusher series, including models such as CS430, CH430, and CS440, represents a highly efficient and reliable solution designed for demanding crushing applications in quarrying, mining, and aggregate production facilities. Engineered to handle medium to hard materials, this crushing equipment is developed to deliver continuous productivity while minimizing operational downtime. For purchasing managers and facility operators, investing in a high-performance cone crusher means achieving a lower cost per ton and ensuring a consistent supply of precisely shaped materials. By integrating advanced structural design with intelligent hydraulic controls, this equipment helps optimize the entire production workflow, making it an essential asset for modern material processing plants.

Single-Cylinder Hydraulic Cone Crusher Advantages & Features

Superior Crushing Performance

• Optimized crushing chamber design for high throughput and optimal product shape: The carefully engineered cavity ensures that materials are subjected to multiple crushing actions, resulting in a higher percentage of cubical end products and fewer elongated particles.

• Adjustable discharge setting for precise control of product size: Operators can easily modify the closed side setting (CSS) to meet specific project requirements, ensuring maximum flexibility across different production phases.

• High crushing ratio and uniform particle size distribution: This capability significantly reduces the need for secondary or tertiary crushing stages, thereby lowering overall energy consumption and streamlining the material handling process.

Advanced Hydraulic System

• Single cylinder hydraulic adjustment for easy setting changes: This streamlined mechanism allows for rapid modifications to the crusher settings, reducing manual labor and ensuring the equipment operates at peak efficiency.

• Hydraulic overload protection to prevent damage from uncrushable materials: In the event that tramp iron or other uncrushable objects enter the chamber, the system automatically lowers the main shaft to let the material pass, protecting internal components from catastrophic failure.

• Automatic cavity clearing function for safe and quick maintenance: This feature eliminates the need for manual digging out of materials after a sudden power loss or emergency stop, significantly reducing downtime and enhancing worker safety.

Durable Construction

• Heavy-duty frame and components for long service life: Constructed from high-strength cast steel, the main frame is designed to withstand the severe stresses and continuous vibrations inherent in heavy-duty crushing operations.

• Premium-grade materials resistant to wear and impact: Critical wear parts, such as the mantle and bowl liner, are manufactured from premium manganese steel, extending replacement intervals and reducing maintenance costs.

• Precision machined parts for smooth operation: Exacting manufacturing tolerances ensure that all moving components fit together accurately, which minimizes internal friction, reduces heat generation, and prolongs the lifespan of the bearings and gears.

User-Friendly Design

• Easy access for maintenance and inspection: The internal layout is designed with serviceability in mind, allowing maintenance teams to quickly inspect and replace wear parts without dismantling the entire machine.

• Simple operation and control system: The intuitive control interface provides real-time monitoring of critical operating parameters, empowering operators to make informed decisions and prevent potential issues before they escalate.

• Low noise and vibration levels: Advanced balancing and dampening technologies are incorporated to create a safer and more comfortable working environment, which also helps in meeting strict environmental and occupational health regulations.

With its compact design and easy maintenance, the single-cylinder hydraulic cone crusher stands out as a reliable and cost-effective solution for diverse crushing applications. The space-saving footprint allows for straightforward integration into existing plant layouts without requiring extensive structural modifications. Whether your operation requires the breakdown of large, abrasive rocks or the precise generation of fine aggregates, this cone crusher delivers dependable performance day after day. By choosing the CS430, CH430, or CS440 models, processing facilities can achieve an optimal balance between high production capacity, consistent final product quality, and long-term operational stability.

The technical parameters for the CS and CH series Single Cylinder Cone Crushers are detailed in the data sheet below. Covering models 420, 430, 440, and 660, this information is provided to assist engineers and procurement teams in precise equipment selection. Key specifications include cavity type, feeding opening, minimum discharge opening, production capacity, installed power, and overall dimensions.

Note: The capacity (t/h) parameters listed above serve as a technical reference. Actual production rates may vary based on the specific physical properties of the feed material, moisture content, and site operational conditions. Please ensure the selected model's maximum installed power and overall dimensions align with your site's infrastructure and layout requirements.

Proper equipment selection and process design are crucial for maximizing production efficiency and minimizing operational costs in aggregate production. The Single Cylinder Cone Crusher (CS430, CH430, CS440) is engineered to deliver reliable performance across various stone crushing circuits. Below are two typical processing technologies demonstrating how specific equipment configurations can address different material characteristics and project requirements.

1. Pebble Processing Technology

Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their smooth surface texture and extreme hardness. As an eco-friendly construction material, they are highly valued for demanding aggregate applications. However, processing pebbles requires durable crushing equipment capable of withstanding severe wear and tear to maintain reasonable maintenance costs.

Key Material Characteristics:

• Compressive Strength: Up to 200MPa, requiring significant crushing forces.
• Abrasion Resistance: Los Angeles wear value <20%, indicating extreme abrasiveness.
• Chemical Stability: Outstanding chemical corrosion resistance for long-term infrastructure projects.

Recommended Crushing Process Flow:

• Primary Crushing Stage:
  • Recommended Equipment: Jaw Crusher (designed for handling large, hard materials).
  • Feed Size: ≤1200mm.
  • Output Size: 150-300mm.
  • Purchasing Value: Effectively reduces the bulk size of river pebbles, preparing a consistent feed for the secondary crushing stage while protecting downstream equipment from oversized material impacts.
• Secondary/Tertiary Crushing Stage:
  • Optimal Solution: Hydraulic Cone Crusher.
  • Final Product Size: 5-30mm (adjustable depending on project requirements).
  • Special Feature: Multi-cylinder or heavy-duty single-cylinder designs are specifically recommended due to the high abrasiveness of pebbles. The hydraulic system provides reliable overload protection, ensuring stable operation even when uncrushable materials enter the chamber. This configuration significantly improves the yield of well-shaped cubical aggregates suitable for premium concrete production while reducing the replacement frequency of wear parts.

2. Limestone Processing Technology

Limestone is abundantly available worldwide and serves as a fundamental raw material capable of meeting virtually all industrial demands, including cement, metallurgy, and construction. It is generally softer and less abrasive than pebbles, meaning simple beneficiation processes can effectively purify limestone. The configuration of a limestone crushing plant focuses on high throughput and consistent particle shape.

Technical Specification Edition (GB/T 30190-2020 Compliant):

To ensure standardized production and consistent output, the typical limestone crushing circuit is designed in compliance with technical specification edition GB/T 30190-2020. This guarantees that the processing plant operates efficiently while meeting strict industry standards.

• Primary Crushing Stage:
  • Equipment: PE Series Jaw Crusher (the conventional and reliable choice for primary limestone reduction).
  • Feed Size: ≤800mm.
  • Output Size: 150-300mm.
  • Operational Benefit: Delivers high-capacity primary crushing with minimal maintenance, setting a solid foundation for continuous downstream processing.
• Secondary & Fine Crushing Stage:
  • Intermediate Crushing: Impact Crusher (Output: 30-70mm). Impact crushers are often utilized in limestone circuits to achieve an optimal cubical shape and reduce flakiness.
  • Fine Crushing: Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm).
  • Operational Benefit: When fine aggregates or manufactured sand are required, integrating a hydraulic cone crusher into the fine crushing stage ensures a continuous, high-volume output of fine materials (≤10mm). The automated hydraulic adjustment allows operators to easily maintain the closed-side setting (CSS), ensuring consistent product gradation and reducing the need for manual intervention.

By selecting the appropriate crushing technology based on material hardness and abrasiveness, plant operators can significantly optimize their equipment investment, reduce operational downtime, and ensure a steady supply of premium aggregates for their target markets.
