Product Description
The is a reliable and efficient crushing equipment designed for various materials such as ores, rocks, and construction waste. With a sturdy construction and high-quality materials, this jaw crusher offers exceptional performance and durability. The PEX series features a unique design with a large feed opening and a high crushing ratio, ensuring uniform particle size and efficient crushing.
Equipped with advanced technology and precision engineering, the High-Quality Jaw Crusher PEX Series delivers consistent and reliable performance in various applications. Its simple structure and user-friendly design make it easy to operate and maintain, reducing downtime and maintenance costs. This jaw crusher is ideal for mining, quarrying, and recycling industries, providing high productivity and excellent crushing capacity.
With customizable options and a range of models available, the High-Quality Jaw Crusher PEX Series can be tailored to meet specific requirements and production needs. Contact us today for more information on this versatile and high-performance jaw crusher.
Technical Parameters
| Model | Feeding opening size | Max.feeding size | Adjustment range of discharging opening | Capacity | Power | Overall dimension |
| C Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C80 | 520×800 | 420 | 60-150 | 80-290 | 75 | 2650×1540×1780 |
| C100 | 760×1000 | 630 | 70-175 | 130-420 | 110 | 3700×2440×2520 |
| C110 | 850×1100 | 720 | 80-200 | 160-550 | 160 | 3800×2450×2550 |
| C125 | 1100×1250 | 800 | 100-250 | 230-760 | 160 | 4100×2750×2780 |
| C145 | 1200×1450 | 920 | 125-300 | 320-1040 | 200 | 4400×3060×3210 |

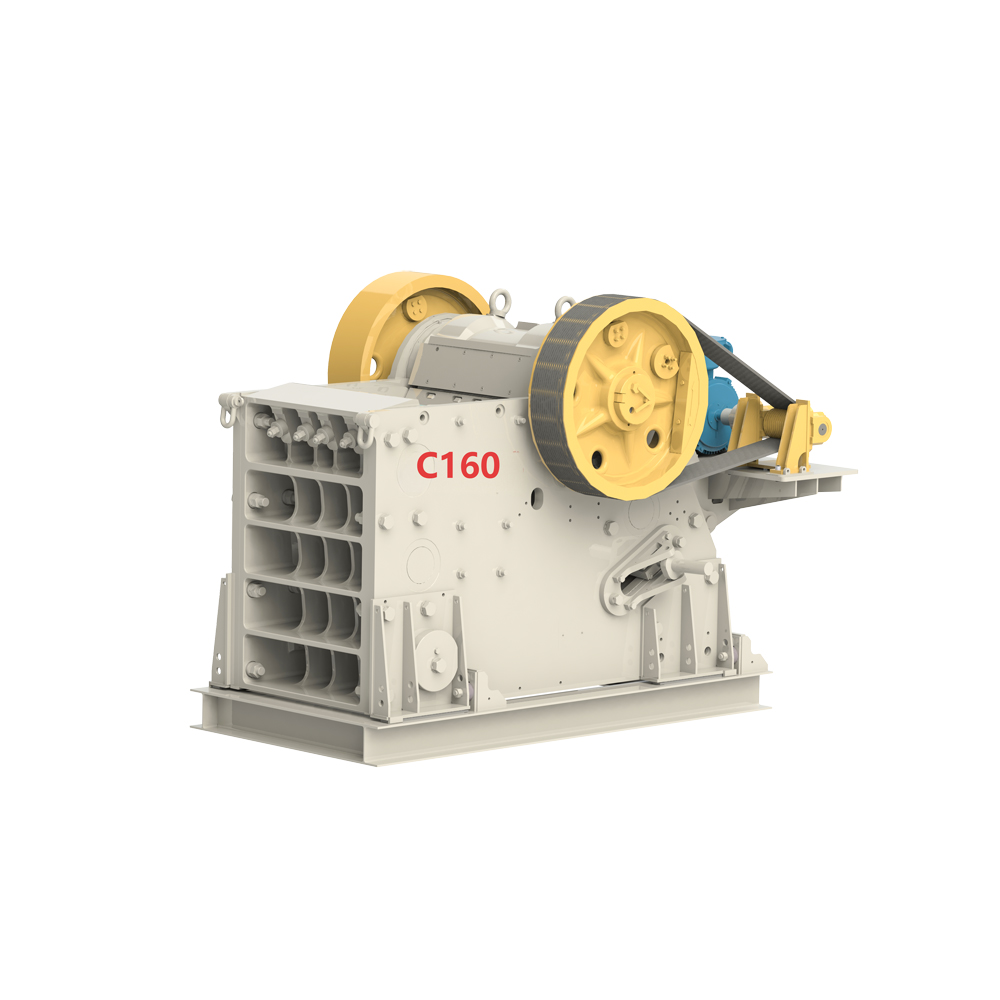

| C160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 250 | 5700×3650×3550 |
| C180 | 1200×1800 | 1020 | 150-300 | 490-1280 | 315/355 | 5700×4150×3550 |
| C200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 400 | 6500×3990×4260 |
| PE Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| PE250x400 | 250x400 | 210 | 20-80 | 5-20 | 15 | 1450x1315x1296 |
| PE400x600 | 400x600 | 350 | 40-100 | 15-65 | 30 | 1700x1732x1653 |
| PE500x750 | 500x750 | 425 | 50-100 | 45-110 | 55 | 2035x1912x2000 |
| PE600x900 | 600x900 | 500 | 65-140 | 90-180 | 55-75 | 2290x2206x2370 |
| PE750x1060 | 750x1060 | 630 | 80-160 | 110-320 | 110 | 2655x2302x3110 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 200-400 | 132 | 3380x2870x3330 |
| PE1000x1200 | 1000x1200 | 800 | 100-200 | 250-500 | 132 | 3480x2870x3330 |
| PE1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 180-220 | 4200x3750x3820 |
| PEX Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| PEX150x250 | 150x250 | 125 | 10-40 | 1-5 | 5.5 | 875x758x850 |
| PEX150x750 | 150x750 | 125 | 18-18 | 5-16 | 15 | 1200x1500x1200 |
| PEX250x750 | 250x750 | 210 | 25-60 | 13-35 | 22 | 1380x1750x1540 |
| PEX250x1000 | 250x1000 | 210 | 25-60 | 16-50 | 30-37 | 1530x1992x1380 |
| PEX250x1200 | 250x1200 | 210 | 25-60 | 20-60 | 37 | 1900x2192x1430 |
| PEX300x1300 | 300x1300 | 250 | 25-105 | 20-90 | 55-75 | 2720x1950x1600 |
Product Uses
Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their high hardness and smooth surface texture. As an eco-friendly construction material, they are renowned for their exceptional:
✓ Compressive strength (up to 200MPa)
✓ Abrasion resistance (Los Angeles wear <20%)
✓ Chemical corrosion resistance
Crushing Process Flow:
Primary Crushing:
Recommended equipment: Jaw Crusher
Feed size: ≤1200mm
Output: 150-300mm
Secondary/Tertiary Crushing:
Optimal solution: Hydraulic Cone Crusher
Final product: 5-30mm (adjustable)
Special feature: Multi-cylinder design for pebble's high abrasiveness
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of:
Primary Crushing: Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing: Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant):
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
