Product Description

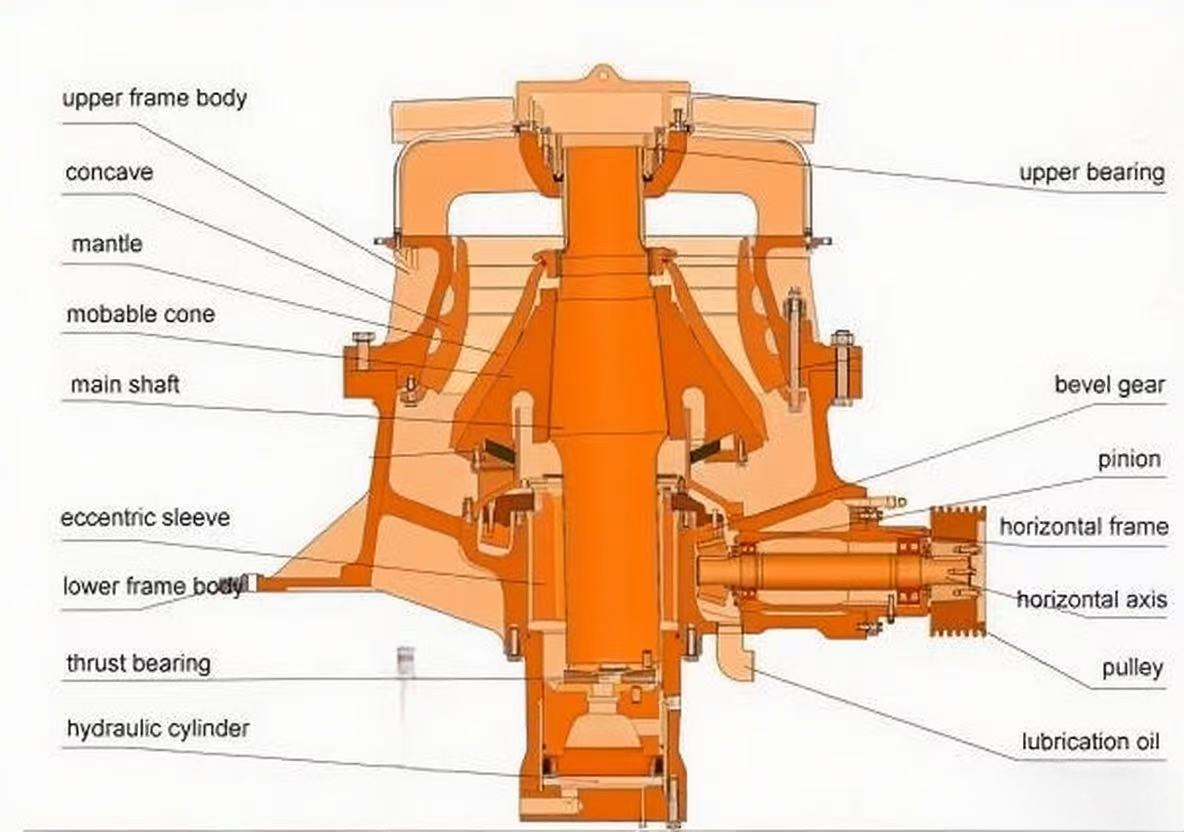

The single-cylinder hydraulic cone crusher provides multiple crushing chamber options. By selecting optimal eccentricity and motion parameters, it achieves both high production efficiency and superior product quality.
Simply replace the liners to switch between different chamber types, meeting various coarse and fine crushing requirements.
The hydraulic system absorbs shock loads smoothly to protect the machine
All maintenance and inspections can be conveniently performed from the top
4. Fully Automated Control System
Offers multiple operation modes:
Manual control，Discharge opening adjustment，Power regulation
Technical Parameters
| Model | Cavity | Feeding opening (mm) | Minimum discharge opening | Capacity | Max installed power | Overall dimension |
| (mm) | (mm) | (t/h) | (kw) | (mm) | ||
| CS420 | S1 | 240 | 22 | 85-170 | 90 | 1550×1575×2545 |
| S2 | 200 | 19 | 70-130 | |||
| CH420 | H1 | 135 | 10 | 45-115 | 1550×1575×1965 | |
| H2 | 65 | 8 | 35-80 | |||
| H3 | 35 | 4 | 27-60 | |||
| CS430 | S1 | 360 | 25 | 120-345 | 160 | 1875×1920×3195 |
| S2 | 300 | 22 | 105-305 | |||
| S3 | 235 | 19 | 90-275 | |||
| CH430 | H1 | 185 | 13 | 66-210 | 1875×1920×2400 | |
| H2 | 90 | 10 | 65-165 | |||
| H3 | 50 | 6 | 48-105 | |||

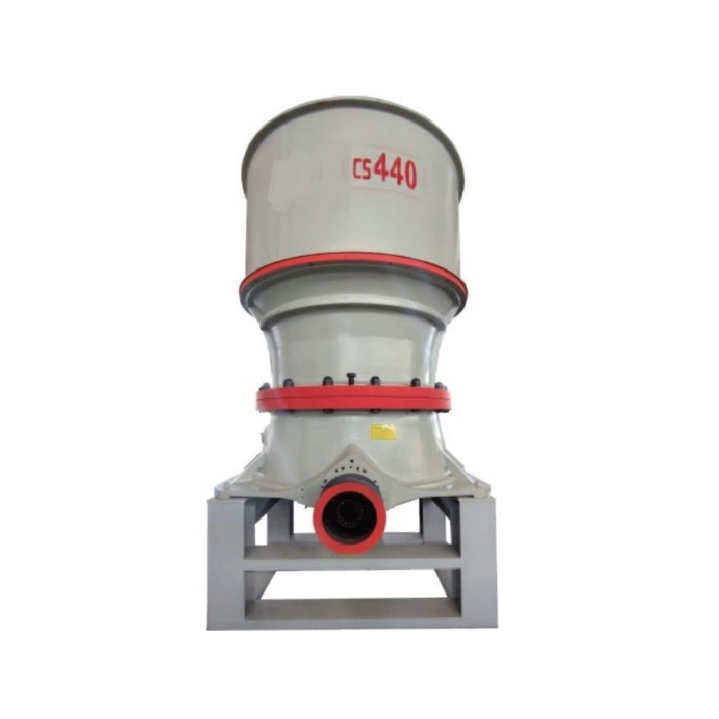

| CS440 | S1 | 450 | 35 | 255-605 | 250 | 2100×2320×4096 |
| S2 | 400 | 29 | 215-515 | |||
| S3 | 300 | 25 | 190-490 | |||
| CH440 | H1 | 215 | 16 | 110-395 | 2100×2320×2780 | |
| H2 | 110 | 13 | 115-340 | |||
| H3 | 70 | 8 | 90-255 | |||

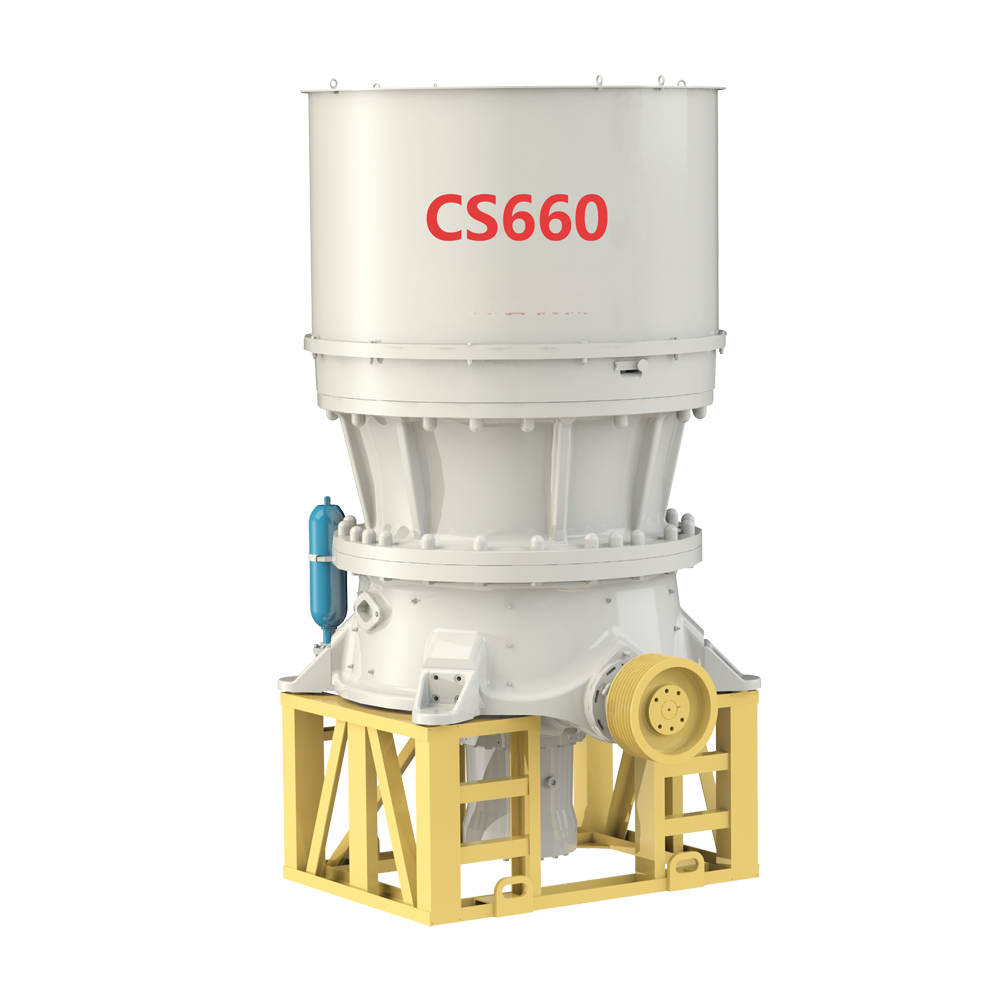

| CS660 | S1 | 560 | 41 | 335-1050 | 315 | 2380×2735×4630 |
| S2 | 500 | 38 | 305-895 | |||
| CH660 | H1 | 275 | 16 | 170-665 | 2380×2735×3265 | |
| H2 | 135 | 16 | 190-505 | |||
| H3 | 65 | 13 | 205-320 |
Product Uses
Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their high hardness and smooth surface texture. As an eco-friendly construction material, they are renowned for their exceptional :
● Compressive strength (up to 200MPa)
● Abrasion resistance (Los Angeles wear <20%)
● Chemical corrosion resistance
Crushing Process Flow :
Primary Crushing:
Recommended equipment : Jaw Crusher
Feed size : ≤1200mm
Output : 150-300mm
Secondary/Tertiary Crushing:
Optimal solution : Hydraulic Cone Crusher
Final product : 5-30mm (adjustable)
Special feature : Multi-cylinder design for pebble's high abrasiveness
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of :
Primary Crushing : Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing : Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant) :
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
