Product Description
Product Advantage

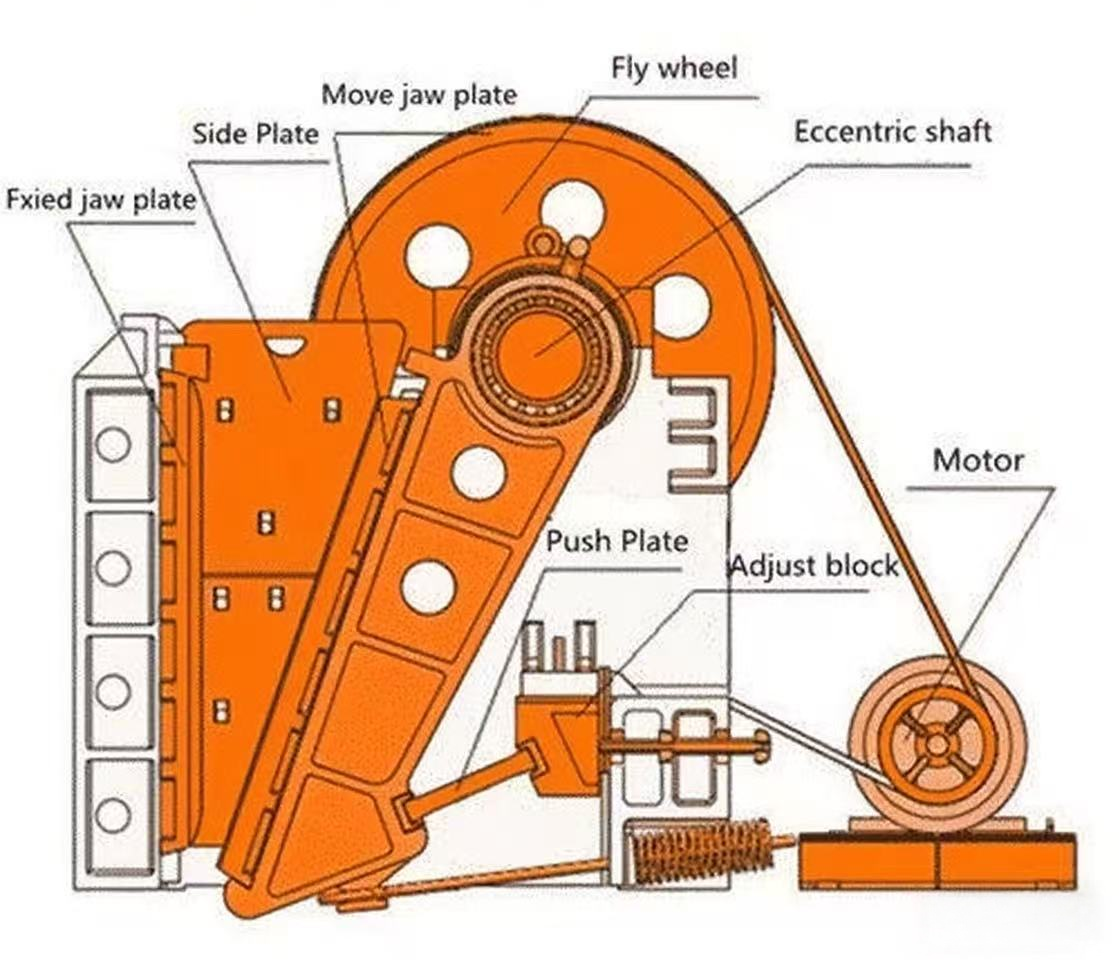

Jaw Crusher Advantages & Features
Compact & welded construction for small/medium units (impact-resistant, even stress distribution, low failure rate)
Modular assembly for large units (high-strength, enhanced reliability, ideal for confined spaces)
Superior cavity geometry for:
Larger feed size acceptance
Higher crushing efficiency
More uniform output gradation Reduced jaw plate wear
Forged high-quality eccentric shaft
Oversized bearing system
Improved impact resistance & operational stability
Extended service life
Motor base & crusher frame monoblock design:
Saves 30-50% installation space/time
Increases component durability
Custom elastic rubber mounting system:
Absorbs 60%+ dynamic loads
Protects both machine and foundation
Stationary or mobile versions available
Quick conversion kits for changing requirements
Technical Parameters
| Model | Feeding opening size | Max.feeding size | Adjustment range of discharging opening | Capacity | Power | Overall dimension |
| C Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C80 | 520×800 | 420 | 60-150 | 80-290 | 75 | 2650×1540×1780 |
| C100 | 760×1000 | 630 | 70-175 | 130-420 | 110 | 3700×2440×2520 |
| C110 | 850×1100 | 720 | 80-200 | 160-550 | 160 | 3800×2450×2550 |
| C125 | 1100×1250 | 800 | 100-250 | 230-760 | 160 | 4100×2750×2780 |
| C145 | 1200×1450 | 920 | 125-300 | 320-1040 | 200 | 4400×3060×3210 |
| C160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 250 | 5700×3650×3550 |
| C180 | 1200×1800 | 1020 | 150-300 | 490-1280 | 315/355 | 5700×4150×3550 |
| C200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 400 | 6500×3990×4260 |
| PE Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |

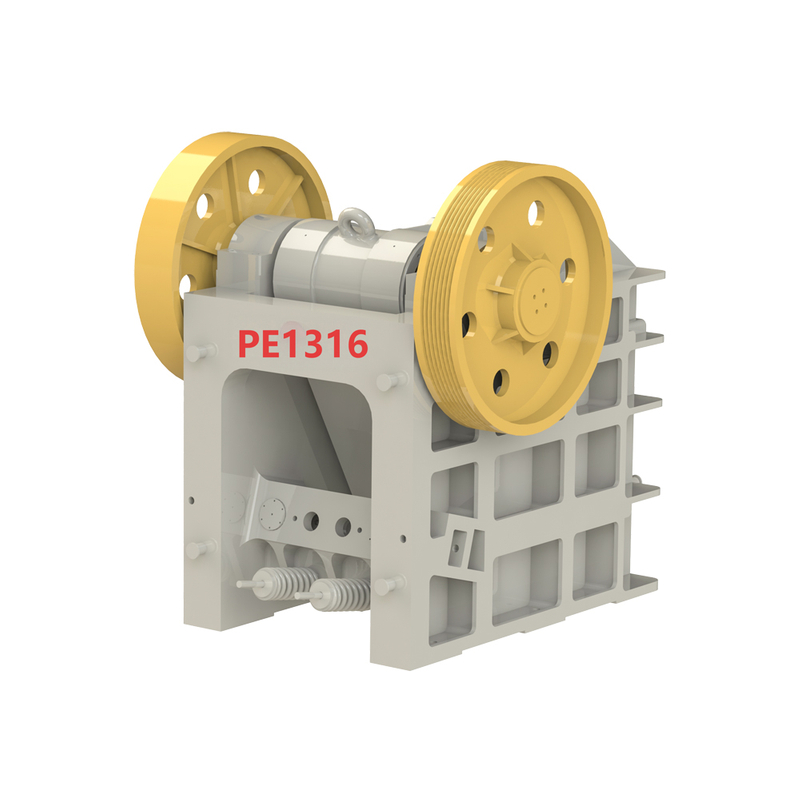

| PE250x400 | 250x400 | 210 | 20-80 | 5-20 | 15 | 1450x1315x1296 |
| PE400x600 | 400x600 | 350 | 40-100 | 15-65 | 30 | 1700x1732x1653 |
| PE500x750 | 500x750 | 425 | 50-100 | 45-110 | 55 | 2035x1912x2000 |
| PE600x900 | 600x900 | 500 | 65-140 | 90-180 | 55-75 | 2290x2206x2370 |
| PE750x1060 | 750x1060 | 630 | 80-160 | 110-320 | 110 | 2655x2302x3110 |
| PE900x1200 | 900x1200 | 750 | 95-165 | 200-400 | 132 | 3380x2870x3330 |
| PE1000x1200 | 1000x1200 | 800 | 100-200 | 250-500 | 132 | 3480x2870x3330 |
| PE1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 180-220 | 4200x3750x3820 |
| PEX Series | (mm) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| PEX150x250 | 150x250 | 125 | 10-40 | 1-5 | 5.5 | 875x758x850 |
| PEX150x750 | 150x750 | 125 | 18-18 | 5-16 | 15 | 1200x1500x1200 |
| PEX250x750 | 250x750 | 210 | 25-60 | 13-35 | 22 | 1380x1750x1540 |
| PEX250x1000 | 250x1000 | 210 | 25-60 | 16-50 | 30-37 | 1530x1992x1380 |
| PEX250x1200 | 250x1200 | 210 | 25-60 | 20-60 | 37 | 1900x2192x1430 |
| PEX300x1300 | 300x1300 | 250 | 25-105 | 20-90 | 55-75 | 2720x1950x1600 |
Product Uses
Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their high hardness and smooth surface texture. As an eco-friendly construction material, they are renowned for their exceptional:
✓ Compressive strength (up to 200MPa)
✓ Abrasion resistance (Los Angeles wear <20%)
✓ Chemical corrosion resistance
Crushing Process Flow:
Primary Crushing:
Recommended equipment: Jaw Crusher
Feed size: ≤1200mm
Output: 150-300mm
Secondary/Tertiary Crushing:
Optimal solution: Hydraulic Cone Crusher
Final product: 5-30mm (adjustable)
Special feature: Multi-cylinder design for pebble's high abrasiveness
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of:
Primary Crushing: Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing: Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant):
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
