Product Description

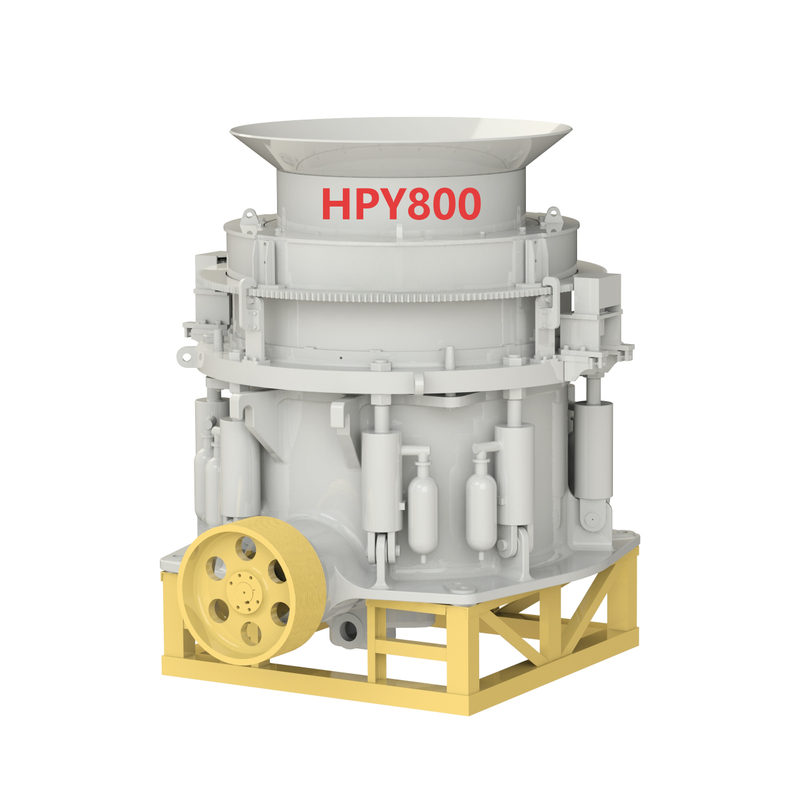

1. The multi-cylinder hydraulic cone crusher adjusts the discharge opening through a hydraulic motor driving the adjustment sleeve, enabling remote, precise and continuous adjustment of the discharge opening size.
2. The hydraulic cylinders not only provide crushing force for the equipment, but also serve as overload protection and tramp iron release, reducing impact load damage to the machine. In reverse operation, they enable cavity clearing function, minimizing downtime.
3. Through optimization of both equipment and crushing chamber design, the multi-cylinder hydraulic cone crusher improves crushing efficiency, reduces wear on consumable parts, and enhances final product quality.
4. The fixed main shaft ensures more rational force distribution on all components and higher power transmission efficiency, thereby achieving greater production output.
Technical Parameters
| Model | Cavity | Feeding opening | Minimum discharge opening | Capacity | Max installed power | Overall dimension |
| HP100 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C1 Extra Coarse | 140 | 19 | 75-140 | 90 | 1705×1510×1583 | |
| C2 Coarse | 100 | 13 | 60-110 | |||
| M Medium | 70 | 9 | 52-100 | |||
| F1Fine | 50 | 9 | 50-95 | |||
| F2 Extra Fine | 20 | 6 | 45-90 | |||
| HP200 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C2 Coarse | 185 | 19 | 145-250 | 160 | 2135×1750×1927 | |
| M Medium | 125 | 16 | 135-235 | |||
| F1Fine | 95 | 13 | 115-220 | |||
| F2 Extra Fine | 75 | 10 | 90-190 | |||
| HP300 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C1 Extra Coarse | 230 | 25 | 220-440 | 250 | 2725×2110×2871 | |
| C2 Coarse | 210 | 19 | 190-380 | |||
| M Medium | 150 | 16 | 175-320 | |||
| F1Fine | 105 | 13 | 145-280 | |||
| F2 Extra Fine | 80 | 10 | 110-240 | |||
| HP400 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C1 Extra Coarse | 295 | 30 | 300-630 | 315 | 2775×2370×2295 | |
| C2 Coarse | 251 | 25 | 285-560 | |||
| M Medium | 196 | 20 | 250-490 | |||
| F1Fine | 110 | 13 | 180-345 | |||
| F2 Extra Fine | 90 | 10 | 135-320 | |||
| HP500 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C1 Extra Coarse | 330 | 38 | 425-790 | 400 | 2800×3480×4050 | |
| C2 Coarse | 290 | 30 | 370-700 | |||
| M Medium | 210 | 22 | 330-605 | |||
| F1 Fine | 135 | 16 | 270-535 | |||
| F2 Extra Fine | 95 | 13 | 220-430 | |||
| HP800 | (/) | (mm) | (mm) | (t/h) | (kw) | (mm) |
| C1 Extra Coarse | 350 | 38 | 570-1200 | 630 | 3970×3345×4235 | |
| C2 Coarse | 299 | 32 | 520-1050 | |||
| M Medium | 265 | 25 | 475-950 | |||
| F1Fine | 220 | 16 | 370-800 | |||
| F2 Extra Fine | 150 | 13 | 310-600 |
Product Uses
Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their high hardness and smooth surface texture. As an eco-friendly construction material, they are renowned for their exceptional:
● Compressive strength (up to 200MPa)
● Abrasion resistance (Los Angeles wear <20%)
● Chemical corrosion resistance
Crushing Process Flow :
Primary Crushing :
Recommended equipment : Jaw Crusher
Feed size : ≤1200mm
Output : 150-300mm
Secondary/Tertiary Crushing:
Optimal solution: Hydraulic Cone Crusher
Final product: 5-30mm (adjustable)
Special feature: Multi-cylinder design for pebble's high abrasiveness
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of:
Primary Crushing: Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing: Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant):
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
