Product Description

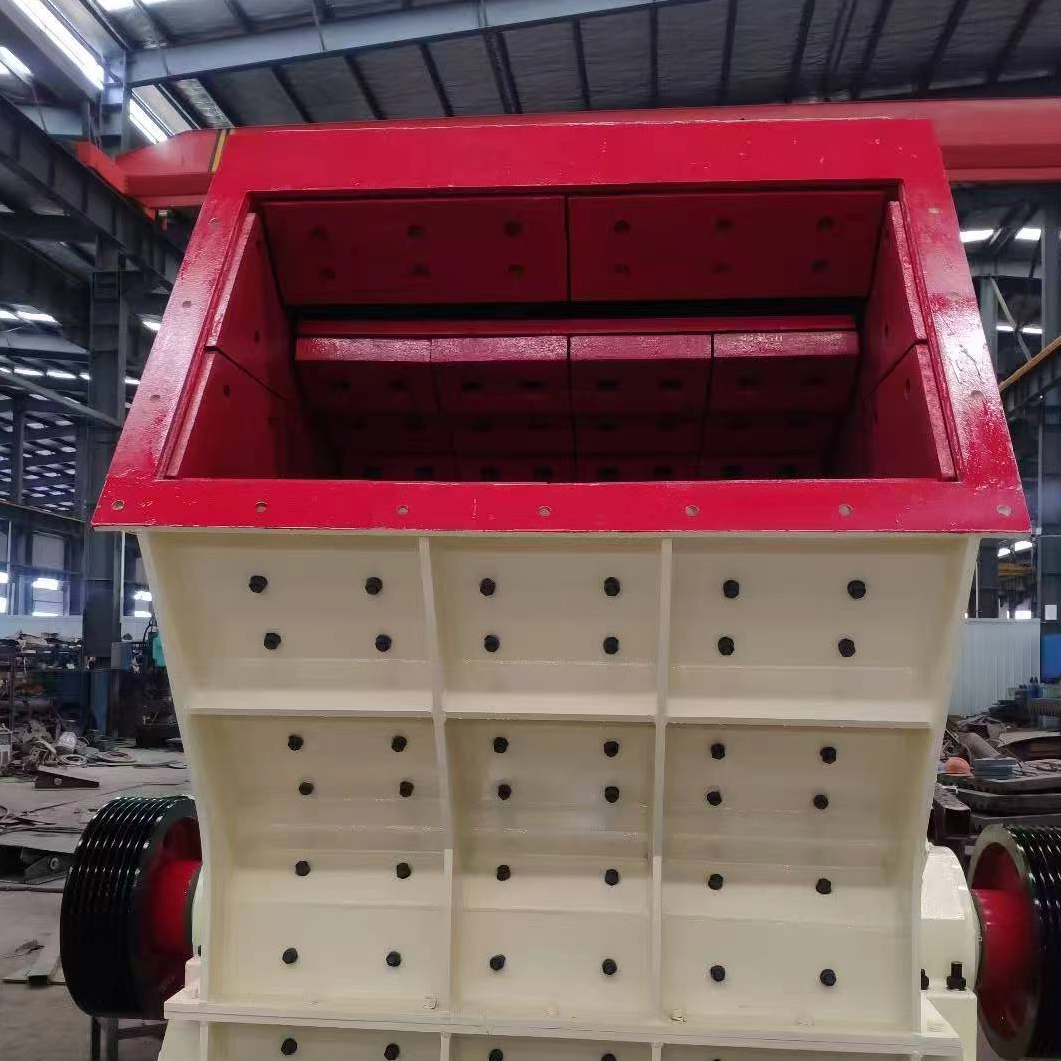

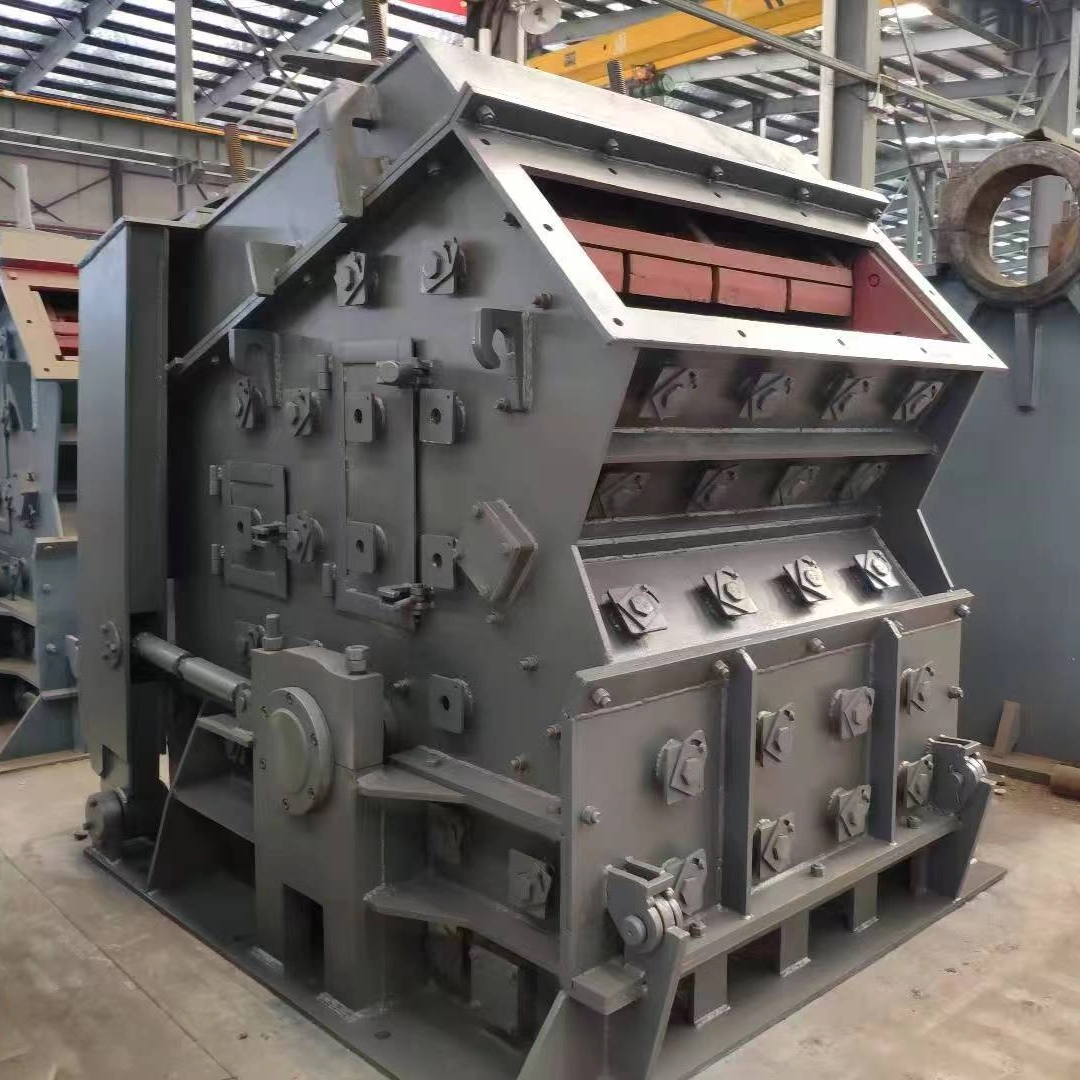

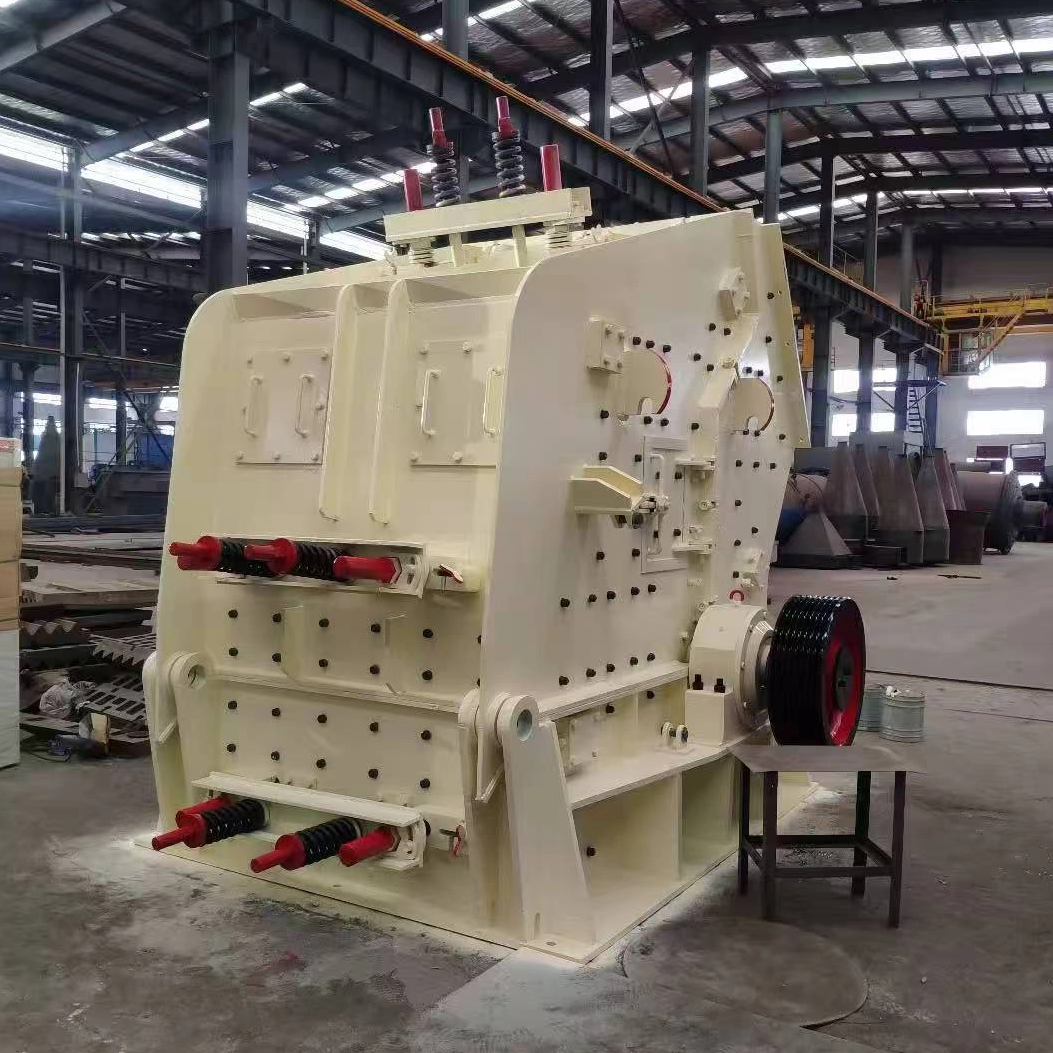

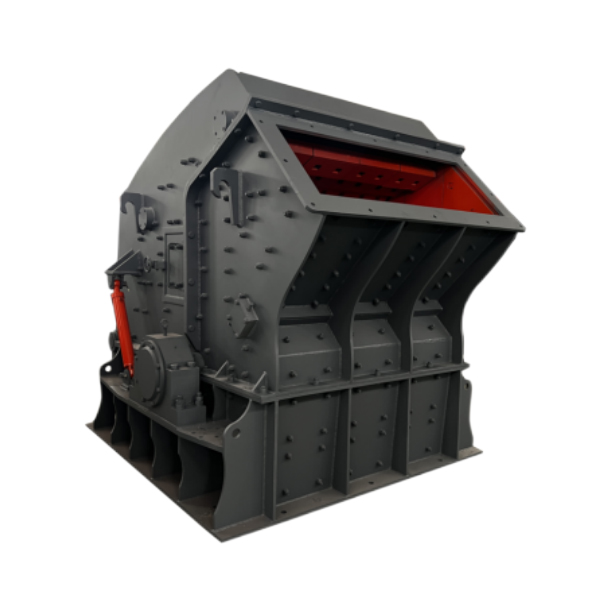

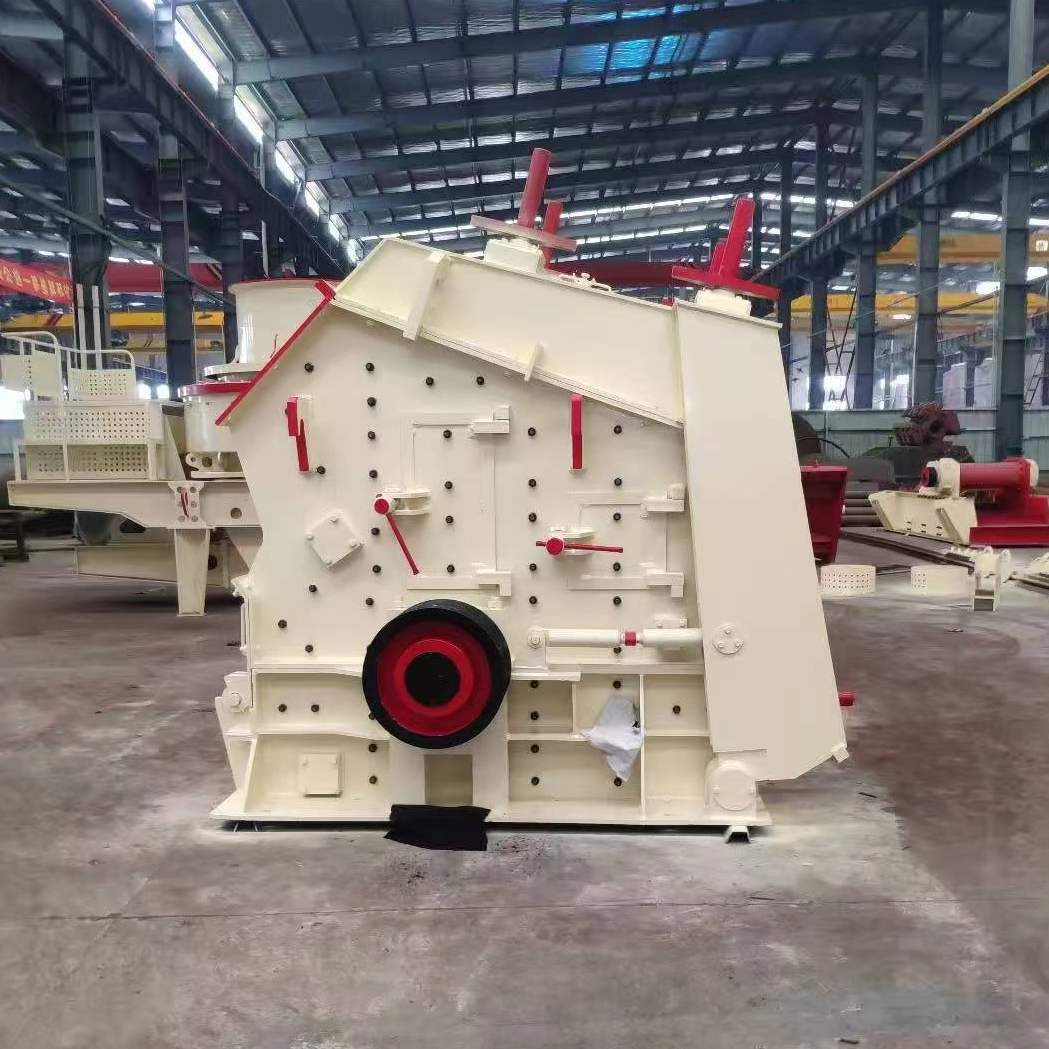

The NPH Series Impact Crusher is a cutting-edge crushing machine that is designed to efficiently crush a variety of materials with high impact force. This crusher is equipped with a heavy-duty rotor that delivers powerful crushing performance, making it ideal for processing materials such as limestone, granite, and concrete.
The NPH Series Impact Crusher features a durable construction and advanced technology, ensuring reliable operation and long-lasting performance. It is suitable for use in various industries, including mining, construction, and recycling. With its high productivity and versatility, the NPH Series Impact Crusher is a top choice for demanding crushing applications that require precision and efficiency.
Technical Parameters
| Model | Rotor spec. | Feeding opening | Max.feeding size | Capacity | Power | Overall dimension |
| PF Series | (mm) | (mm) | (mm) | （t/h） | (kw) | (mm) |
| PF1007 | 1000×700 | 400×730 | 300 | 35-50 | 55 | 2400×1558×2660 |
| PF1010 | 1000×1050 | 400×1080 | 350 | 50-80 | 4-75 | 2455×2086×2800 |
| PF1210 | 1250×1050 | 400×1080 | 350 | 60-120 | 6-110 | 2590×2050×2800 |
| PF1214 | 1250×1400 | 400×1430 | 350 | 80-160 | 6-132 | 2590×2400×2810 |
| PF1315 | 1300×1500 | 860×1520 | 350 | 120-260 | 6-200 | 2930×2760×3050 |

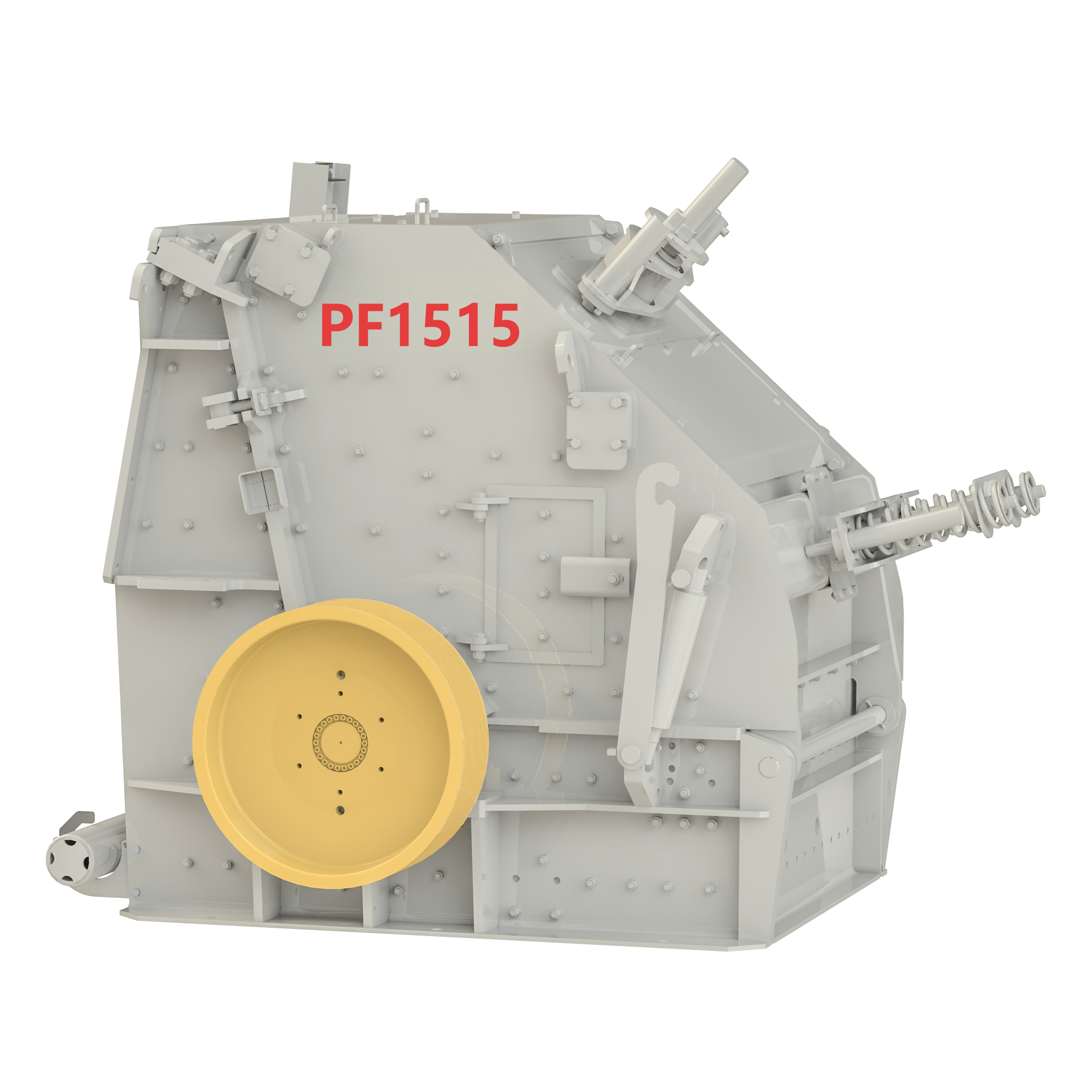

| PF1515 | 1500×1500 | 1145×1520 | 500 | 220-280 | 280 | 2690×2049×2698 |
| PF1320 | 1300×2000 | 860×3200 | 500 | 250-350 | 300 | 2900×3200×3250 |
| PF1520 | 1520×2000 | 1245×2050 | 700 | 300-550 | 315-440 | 3581×3560×3865 |
| NPH Series | (mm) | (mm) | (mm) | （t/h） | (kw) | (mm) |
| NPH1110 | 1100×1000 | 1020×820 | 500 | 110-260 | 160-200 | 2626×2106×1945 |
| NPH1213 | 1200×1300 | 1320×880 | 550 | 145-350 | 200-250 | 2809×2529×2091 |
| NPH1315 | 1300×1500 | 1540×930 | 600 | 200-450 | 250-315 | 2819×2535×2412 |
| NPH1520 | 1500×2000 | 2040×995 | 400 | 335-760 | 400-500 | 3390×3520×2790 |
| NPH1524 | 1500×2400 | 2516×767 | 400 | 410-960 | 560-630 | 3434×3955×2821 |
| NPH1630 | 1600×2700 | 2740×787 | 400 | 540-1250 | 710-800 | 3693×4520×3173 |
| NPH1313 | 1300×1300 | 1320×1225 | 800 | 280-520 | 200-250 | 2963×2560×2611 |
| NPH1415 | 1400×1500 | 1540×1320 | 900 | 340-650 | 250-315 | 3325×2804×3068 |
| NPH1620 | 1600×2000 | 2040×1630 | 1100 | 500-1050 | 400-500 | 3899×3692×3598 |
| NPH2023 | 2000×2300 | 2310×1990 | 1300 | 1000-2100 | 1000-1260 | 4890×4330×4765 |
Product Uses
Granite features homogeneous structure and rigid texture, making it premium-quality durable construction aggregate material. The crushing process typically consists of three stages :
Primary Crushing Stage: Jaw Crusher
Secondary/Tertiary Crushing Stage : Cone Crusher
Particle Shaping Stage (as required): Impact Crusher (Sand Making Machine) for particle shape optimization
Technical Specifications :
Material Characteristics :
*Compressive strength : 120-300MPa
*Mohs hardness : Grade 6-7
*SiO₂ content : ≥65%
Recommended Equipment Configuration :
• Primary crushing: PE1200×1500 Jaw Crusher (Max feed size : ≤1000mm)
• Secondary crushing: HPT500 Multi-cylinder Hydraulic Cone Crusher (Adjustable output : 5-40mm)
• Shaping: VSI6X1263 Vertical Shaft Impact Crusher (Particle roundness : ≥90%)
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of :
Primary Crushing : Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing : Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant) :
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
