Product Description

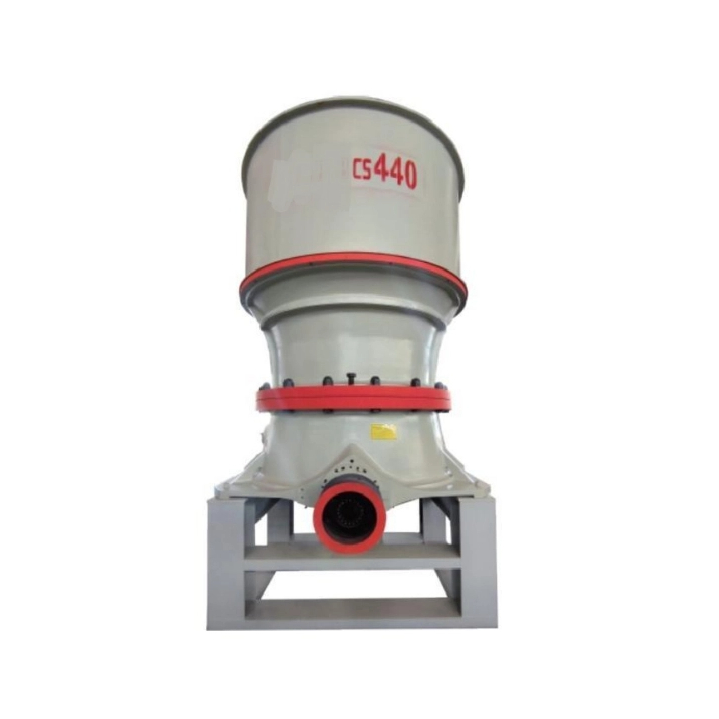

Introducing the Single Cylinder Cone Crusher CH440 CS660 CH660, a premium solution designed to meet your crushing needs with precision and efficiency. This high-performance crusher is engineered to deliver optimal results in various applications, ensuring reliable operation and superior output quality. Trust in the advanced technology and robust construction of the CH440 CS660 CH660 to enhance your productivity and achieve exceptional performance in the field of crushing.
The single-cylinder hydraulic cone crusher is a high-efficiency crusher designed to crush a variety of materials with high hardness and medium hardness. It is equipped with a hydraulic system that allows for easy adjustment of the crusher settings to achieve the desired particle size.
This cone crusher features a robust design and high-quality components that ensure reliable performance and long service life. The single-cylinder design reduces maintenance and operating costs, making it a cost-effective solution for crushing applications.
With its advanced technology and efficient crushing capabilities, this cone crusher is ideal for crushing various materials such as limestone, granite, basalt, and more. It is suitable for use in mining, construction, and other industries where high-quality aggregates are required.
The single-cylinder hydraulic cone crusher is easy to operate and maintain, making it a versatile and reliable choice for crushing operations. Its compact design and powerful performance make it a valuable addition to any crushing plant or quarry.
Technical Parameters
| Model | Cavity | Feeding opening (mm) | Minimum discharge opening | Capacity | Max installed power | Overall dimension |
| (mm) | (mm) | (t/h) | (kw) | (mm) | ||
| CS420 | S1 | 240 | 22 | 85-170 | 90 | 1550×1575×2545 |
| S2 | 200 | 19 | 70-130 | |||
| CH420 | H1 | 135 | 10 | 45-115 | 1550×1575×1965 | |
| H2 | 65 | 8 | 35-80 | |||
| H3 | 35 | 4 | 27-60 | |||
| CS430 | S1 | 360 | 25 | 120-345 | 160 | 1875×1920×3195 |
| S2 | 300 | 22 | 105-305 | |||
| S3 | 235 | 19 | 90-275 | |||
| CH430 | H1 | 185 | 13 | 66-210 | 1875×1920×2400 | |
| H2 | 90 | 10 | 65-165 | |||
| H3 | 50 | 6 | 48-105 | |||
| CS440 | S1 | 450 | 35 | 255-605 | 250 | 2100×2320×4096 |
| S2 | 400 | 29 | 215-515 | |||
| S3 | 300 | 25 | 190-490 | |||
| CH440 | H1 | 215 | 16 | 110-395 | 2100×2320×2780 | |
| H2 | 110 | 13 | 115-340 | |||
| H3 | 70 | 8 | 90-255 | |||
| CS660 | S1 | 560 | 41 | 335-1050 | 315 | 2380×2735×4630 |
| S2 | 500 | 38 | 305-895 | |||
| CH660 | H1 | 275 | 16 | 170-665 | 2380×2735×3265 | |
| H2 | 135 | 16 | 190-505 | |||
| H3 | 65 | 13 | 205-320 |
Product Uses
Pebbles are primarily composed of silicon dioxide (SiO₂), characterized by their high hardness and smooth surface texture. As an eco-friendly construction material, they are renowned for their exceptional :
● Compressive strength (up to 200MPa)
● Abrasion resistance (Los Angeles wear <20%)
● Chemical corrosion resistance
Crushing Process Flow :
Primary Crushing:
Recommended equipment : Jaw Crusher
Feed size : ≤1200mm
Output : 150-300mm
Secondary/Tertiary Crushing:
Optimal solution : Hydraulic Cone Crusher
Final product : 5-30mm (adjustable)
Special feature : Multi-cylinder design for pebble's high abrasiveness
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of :
Primary Crushing : Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing : Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant) :
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1. What is the capacity of the single-cylinder hydraulic cone crusher?
- The capacity of the crusher varies depending on the model and the type of material being crushed. Please refer to the product specifications for detailed information on capacity.
2. How does the hydraulic system of the cone crusher work?
- The hydraulic system of the cone crusher allows for easy adjustment of the crusher settings by controlling the pressure and flow of the hydraulic fluid. This enables precise control over the crushing process.
3. Is the single-cylinder hydraulic cone crusher suitable for crushing hard materials?
- Yes, the crusher is designed to crush materials with high hardness and medium hardness, making it suitable for crushing hard materials such as limestone, granite, and basalt.
4. What maintenance is required for the cone crusher?
- Regular maintenance such as lubrication, inspection of wear parts, and cleaning is necessary to ensure the optimal performance and longevity of the crusher. Refer to the user manual for detailed maintenance instructions.
5. Can the crusher be used in mobile crushing applications?
- Yes, the single-cylinder hydraulic cone crusher can be used in mobile crushing applications due to its compact design and efficient performance.
6. What safety features are included in the cone crusher?
- The crusher is equipped with safety features such as overload protection, automatic shutdown in case of a malfunction, and emergency stop buttons for added safety during operation.
7. Is the cone crusher easy to transport and install?
- The compact design of the crusher makes it easy to transport and install in various locations. It can be quickly set up and ready for operation with minimal effort.
8. Can the crusher be customized to meet specific requirements?
- Yes, the single-cylinder hydraulic cone crusher can be customized with different crushing chambers, eccentric speeds, and other features to meet specific crushing requirements. Contact us for more information on customization options.
