Product Description

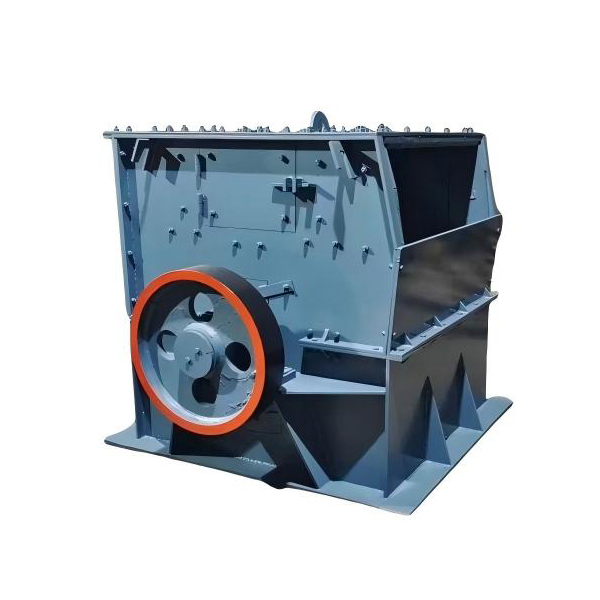

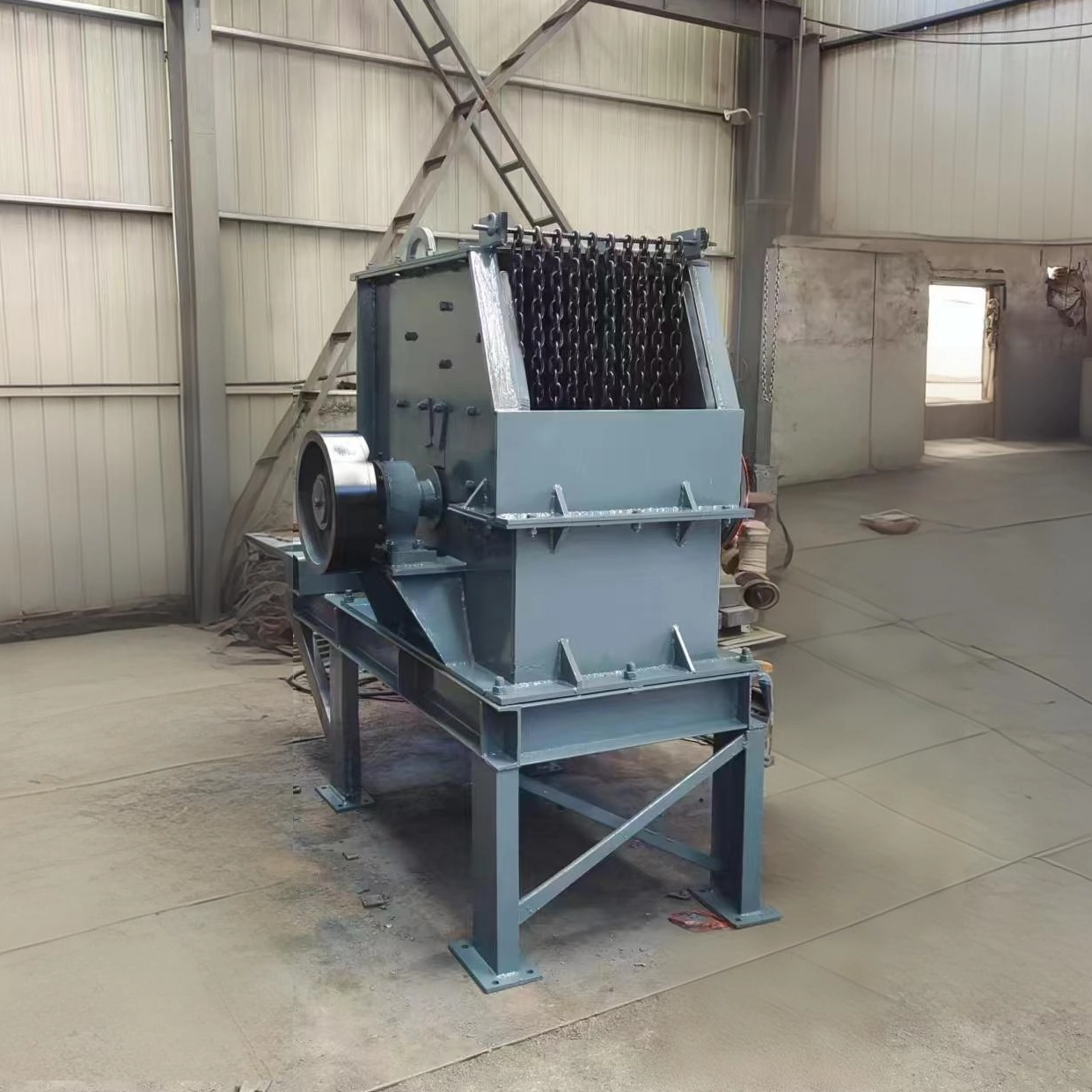

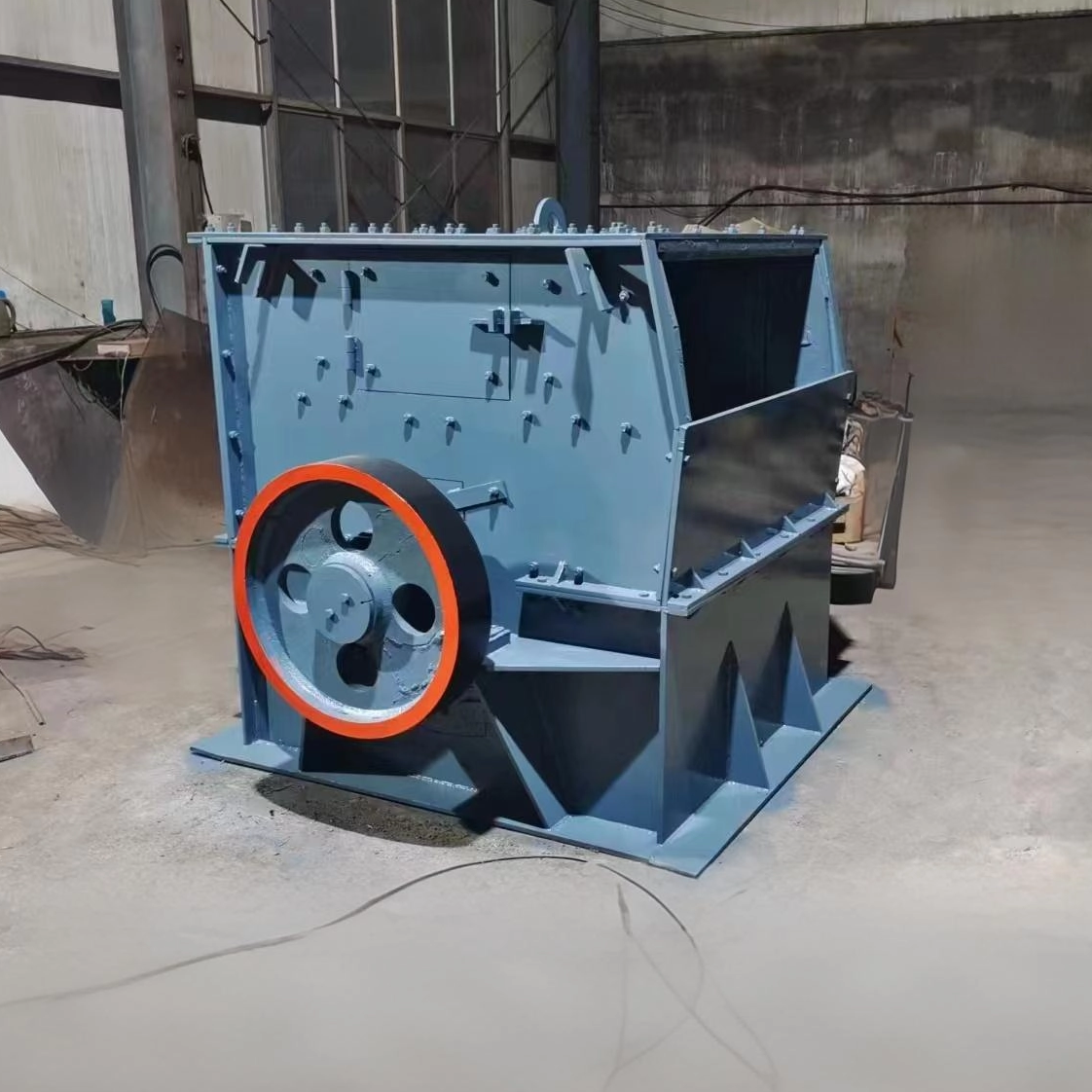

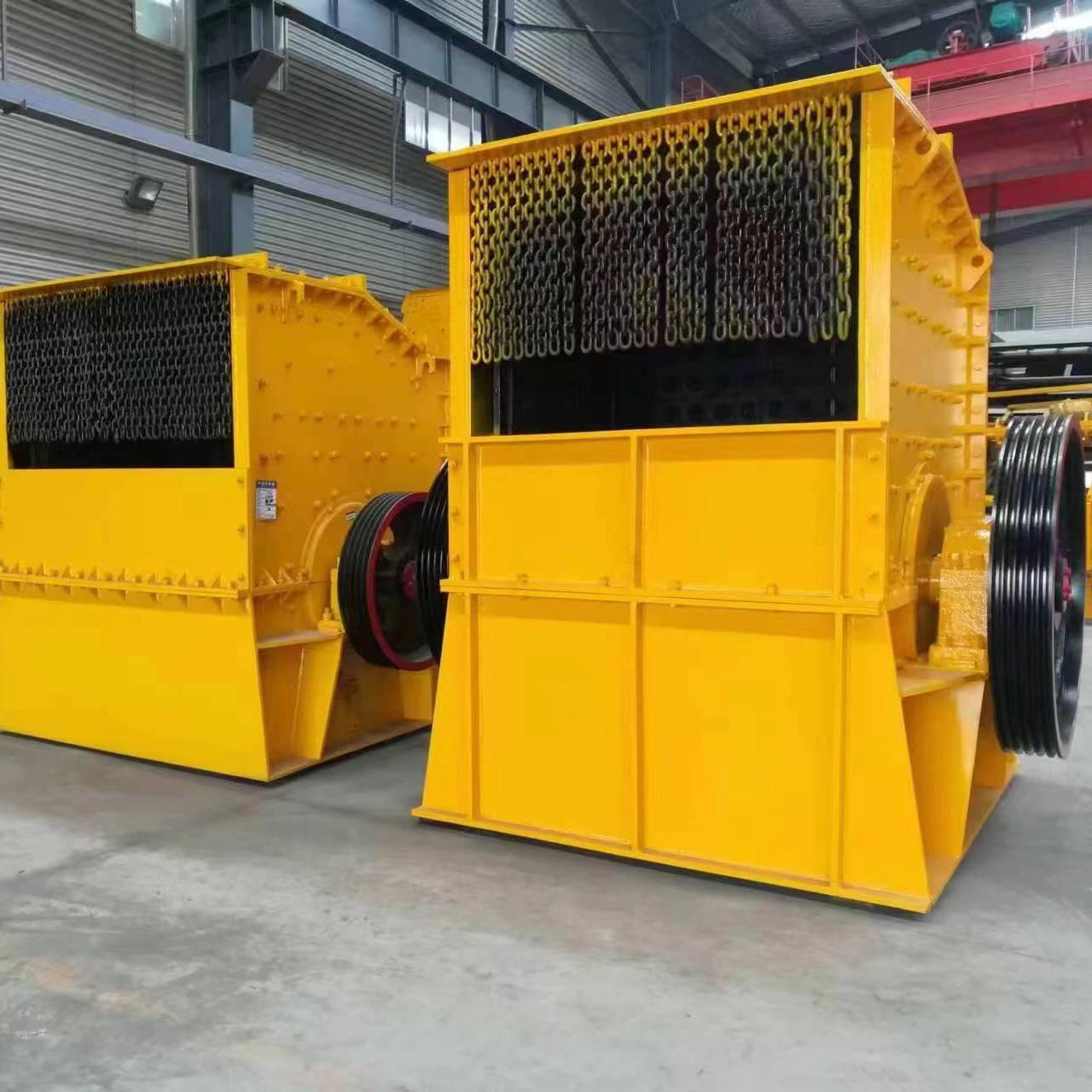

The Hammer Crusher is a robust and versatile crushing machine that utilizes high-speed impact to crush materials. It is commonly used in mining, construction, and industrial applications to reduce the size of materials such as limestone, coal, and ores.

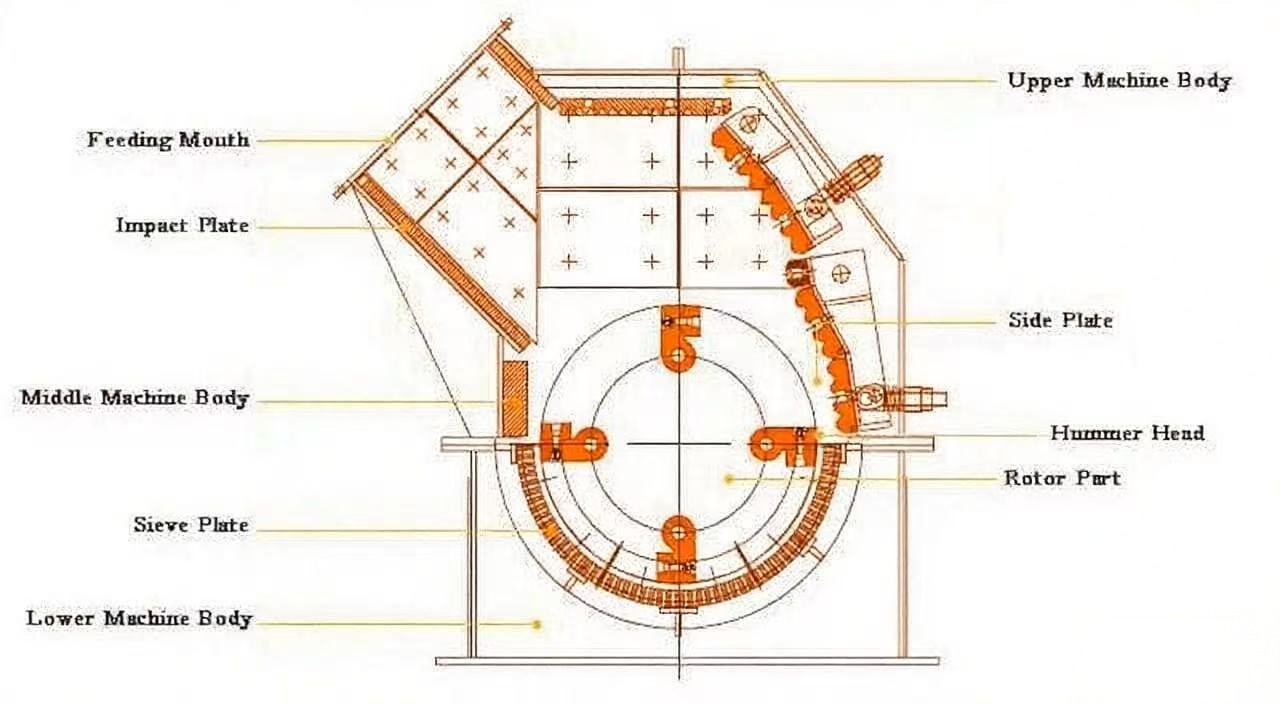

The Hammer Crusher features a heavy-duty rotor with hammers that deliver powerful impact force to break down the material. Its adjustable settings allow for precise control over the size of the final product. With its durable construction and reliable performance, the Hammer Crusher is an essential tool for crushing tasks in various industries. Its efficiency and versatility make it a valuable asset for processing a wide range of materials with ease.
Technical Parameters
| Model | Feeding size | Discharge size | Capacity | Power | Overall dimension |
| PC Series | (mm) | (mm) | (t/h) | (kw) | (mm) |
| PC400x300 | ≤200 | ≤25 | 5-10 | 11 | 900x670x860 |
| PC600x400 | ≤250 | ≤30 | 10-22 | 22 | 1200x1050x1200 |
| PC800x600 | ≤250 | ≤25 | 18-40 | 55 | 1310x1180x1310 |
| PC1000x800 | ≤350 | ≤35 | 25-50 | 75 | 1600x1390x1575 |
| PC1000x1000 | ≤300 | ≤35 | 30-55 | 132 | 1800x1590x1775 |
| PC1250x1250 | ≤350 | ≤35 | 35-65 | 180 | 2000x1600x1890 |
| PC1400x1400 | ≤350 | ≤35 | 50-100 | 280 | 2365x1870x2220 |
| PC1600x1600 | ≤350 | ≤35 | 100-150 | 480 | 3050x2850x2800 |
| Model | Diameter of roll | Length of roll (mm) | Capacity | Feeding Size(mm) | Power |
| PCX Series | (mm) | (mm) | (t/h) | (mm) | (kw) |
| PCX600x600 | 600 | 600 | 15-30 | ≤300 | 22-30 |
| PCX800x800 | 800 | 800 | 20-40 | ≤400 | 30-37 |
| PCX700x1000 | 700 | 1000 | 50-80 | ≤500 | 45-55 |
| PCX900x1200 | 900 | 1200 | 70-100 | ≤800 | 75-90 |
| PCX1000x1000 | 1000 | 1000 | 90-120 | ≤800 | 75-90 |
| PCX1200x1200 | 1200 | 1200 | 130-160 | ≤900 | 110-132 |
| PCX1400x1400 | 1400 | 1400 | 190-210 | ≤1000 | 132-160 |
| PCX1600x1600 | 1600 | 1600 | 250-300 | ≤1000 | 160-210 |
| PCX1800x1800 | 1800 | 1800 | 300-400 | ≤1200 | 210-280 |
Product Uses
Granite features homogeneous structure and rigid texture, making it premium-quality durable construction aggregate material. The crushing process typically consists of three stages:
Primary Crushing Stage: Jaw Crusher
Secondary/Tertiary Crushing Stage : Cone Crusher
Particle Shaping Stage (as required) : Impact Crusher (Sand Making Machine) for particle shape optimization
Technical Specifications :
Material Characteristics :
*Compressive strength : 120-300MPa
*Mohs hardness : Grade 6-7
*SiO₂ content : ≥65%
Recommended Equipment Configuration :
• Primary crushing : PE1200×1500 Jaw Crusher (Max feed size: ≤1000mm)
• Secondary crushing : HPT500 Multi-cylinder Hydraulic Cone Crusher (Adjustable output: 5-40mm)
• Shaping : VSI6X1263 Vertical Shaft Impact Crusher (Particle roundness: ≥90%)
Limestone is abundantly available worldwide, capable of meeting virtually all industrial demands. Simple beneficiation processes can effectively purify limestone. The typical crushing circuit consists of :
Primary Crushing : Jaw Crusher (conventional choice)
Secondary/Tertiary Crushing: Impact Crusher or Cone Crusher
Technical Specification Edition (GB/T 30190-2020 compliant):
Primary Crushing Stage
Equipment : PE Series Jaw Crusher
Feed Size : ≤800mm
Output : 150-300mm
Secondary Crushing Stage
Intermediate Crushing : Impact Crusher (Output: 30-70mm)
Fine Crushing : Multi-cylinder Hydraulic Cone Crusher (Output: ≤10mm)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
