Product Description

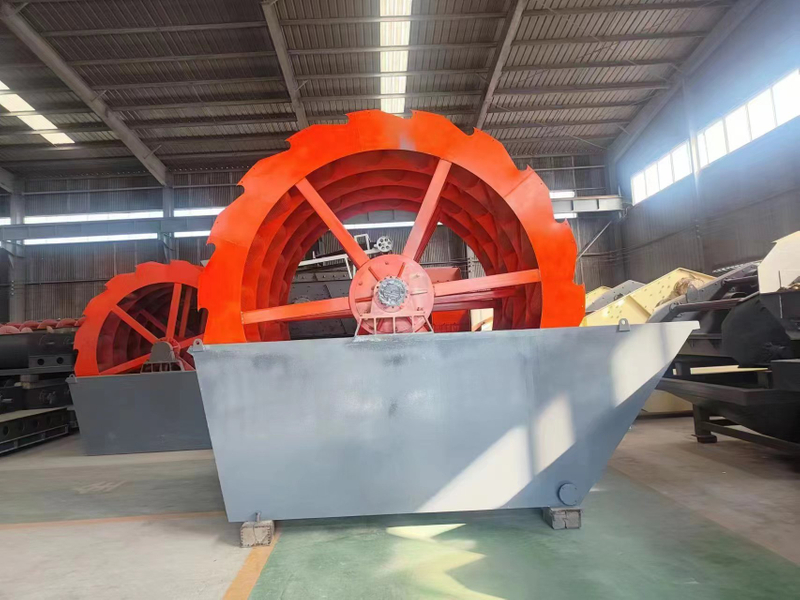

Equipped with advanced technology, the Sand Washing Machine features a powerful washing system that effectively removes contaminants such as dirt, clay, and other particles from the sand and gravel. The machine utilizes a combination of water, agitation, and scrubbing action to achieve thorough cleaning and separation of impurities, resulting in clean and well-graded sand output.
With its robust construction and high-quality components, the Sand Washing Machine is built to withstand heavy-duty use in harsh operating conditions. It offers adjustable settings and customizable features to meet the specific requirements of different materials, ensuring optimal washing performance and efficiency.
Easy to operate and maintain, the Sand Washing Machine is designed for user convenience and efficiency. It is a reliable and cost-effective solution for achieving clean and high-quality sand products, making it an essential tool for sand and gravel processing plants and construction sites. Trust the Sand Washing Machine to deliver superior cleaning results and enhance the quality of your sand and gravel
Technical Parameters
| Model | Maximum feed size | Capacity | Impeller specification | Power | Overall dimension | ||
| XSD Series | (mm) | (t/h) | (mm) | (kw) | (mm) | ||
| XSD2610 | ≤10 | 20-50 | 2600 | 5.5 | 3107x2272x2739 | ||
| XSD3016 | ≤10 | 50-120 | 3000 | 11 | 3650x2839x3070 | ||
| XSD3620 | ≤10 | 120-180 | 3600 | 15 | 4300x3564x3685 | ||
| XSD3624 | ≤10 | 140-220 | 3600 | 18.5 | 4300x3970x3685 | ||
| XSD4530 | ≤10 | 180-250 | 4500 | 22 | 6010x4450x4622 | ||
| Model | Capacity | Water requirement | Spiral diameter | Sink length | Feed size | Motor Power | Overall dimension |
| LXS Series | (m3/h) | (m3/h) | (mm) | (mm) | (mm) | (kw) | (mm) |
| LXS920 | 30-100 | 10-80 | 920 | 8016 | ≤10 | 11 | 8715x1632x2075 |
| 2LXS920 | 60-200 | 20-160 | 920 | 8016 | ≤10 | 11x2 | 8715x2602x2075 |
| LXS1120 | 40-120 | 20-150 | 1120 | 8532 | ≤10 | 18.5 | 9231x1833x2126 |
| 2LXS1120 | 80-240 | 40-300 | 1120 | 8532 | ≤10 | 18.5x2 | 9231x2995x2126 |
| Model | Power | Capacity | Feed size | Dewatering screen specification | Sieve plate area | Overall dimension | |
| TS Series | (kw) | (t/h) | (mm) | (mm) | (m2) | (mm) | |
| TS0918 | 1.1x2 | 10-30 | ≤10 | 900x1800 | 1.6 | 1885x1290x1077 | |
| TS0924 | 1.1x2 | 10-30 | ≤10 | 900x2400 | 2.2 | 2483x1290x1215 | |
| TS1224 | 2.2x2 | 30-60 | ≤10 | 1200x2400 | 2.88 | 2485x1590x1424 | |
| TS1230 | 2.2x2 | 30-60 | ≤10 | 1200x2400 | 2.88 | 3084x1590x1439 | |
| TS1236 | 3x2 | 30-60 | ≤10 | 1200x3600 | 4.32 | 3677x1590x1498 | |
| TS1530 | 3x2 | 60-100 | ≤10 | 1500x3000 | 4.5 | 3083x1890x1433 | |
| TS1536 | 3x2 | 60-100 | ≤10 | 1500x3600 | 5.4 | 3683x1890x1445 | |
| TS1836 | 5.5x2 | 100-130 | ≤10 | 1800x3600 | 6.48 | 3717x2423x1927 | |
| TS1842 | 5.5x2 | 100-130 | ≤10 | 1800x4200 | 7.56 | 4368x2421x2104 |
Product Uses
Manufactured sand washing : Removes stone powder from granite/basalt crushed sand (controls MB value <1.0)
Natural sand purification : De-muds and purifies river/sea sand (reduces mud content from 15% to <3%)
Case : Sand for a high-speed rail project meets GB/T 14684-2022 Class I standards
Tailings sand recovery : Recovers 0.075-1mm valuable minerals from metal ore tailings
Quartz sand purification : Upgrades SiO₂ content from 95% to >99% (glass-grade purity)
Special design : Acid-resistant washers for phosphate ore cleaning
Recycled construction aggregate washing : Removes soil impurities from crushed concrete
RDF fuel preparation : Cleans refuse-derived fuel (15% higher calorific value)
Sludge treatment : Works with filter presses for sludge reduction
Foundry sand processing : Achieves AFS 50-70 fineness requirements
Ceramic material refinement : Separates impurities from kaolin/feldspar powder
PV silicon material cleaning : Meets solar-grade silica standards
Coastal areas : 316L stainless steel anti-corrosion version (salt spray resistant)
Arctic environments : -40°C cold-start design (Siberian gold mine case)
Desert operations : Closed-loop water system for zero discharge
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
