SMR Series Gearbox

SMR Series Shaft Mounted Gearbox – Advantages & Features

1. Key Advantages

● Space-Saving Direct Mount Design

Eliminates need for couplings/adapters

Mounts directly to driven shaft

40% more compact than traditional reducers

● Superior Power Transmission

Torque range: 100-18,000 Nm

Power capacity up to 200kW

Efficiency up to 96%

● Robust Construction

Hardened alloy steel gears (HRC 58-62)

Heavy-duty cast iron housing

IP65 protection standard

● Easy Installation & Maintenance

Split-type housing for quick assembly

No alignment required

Grease-lubricated for minimal maintenance

● Versatile Configuration Options

Multiple mounting positions (0°, 90°, 180°)

Custom shaft sizes available

Various ratio options (5:1 to 100:1)

2. Key Features

Feature Specification

Ratio Range :  5:1 - 100:1

Efficiency :  Up to 96%

Housing Material :  Cast Iron (GGG50)

Gear Material :  20CrMnTi alloy steel

Lubrication :  Synthetic grease

Backlash :  <20 arcmin

Service Factor :  1.5-2.0

Features:

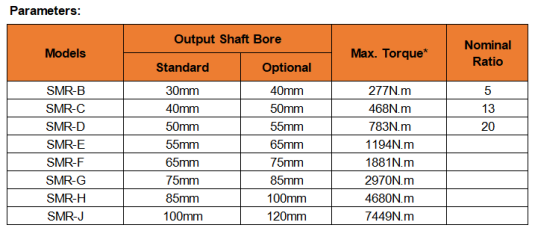

 1. High strength of gear box, gears and shafts, sturdy and durable                                                                               2. 2 metric output shaft bore diameters(Standard and Optional)                                                                                   3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5                                 4. Double lips skeleton oil seal combines the functions of seal and dust-proof                                                               5. Widely used in belt conveyor and pulley drive system Max. Torque for output speed 100RPM
