ANP Series Motors

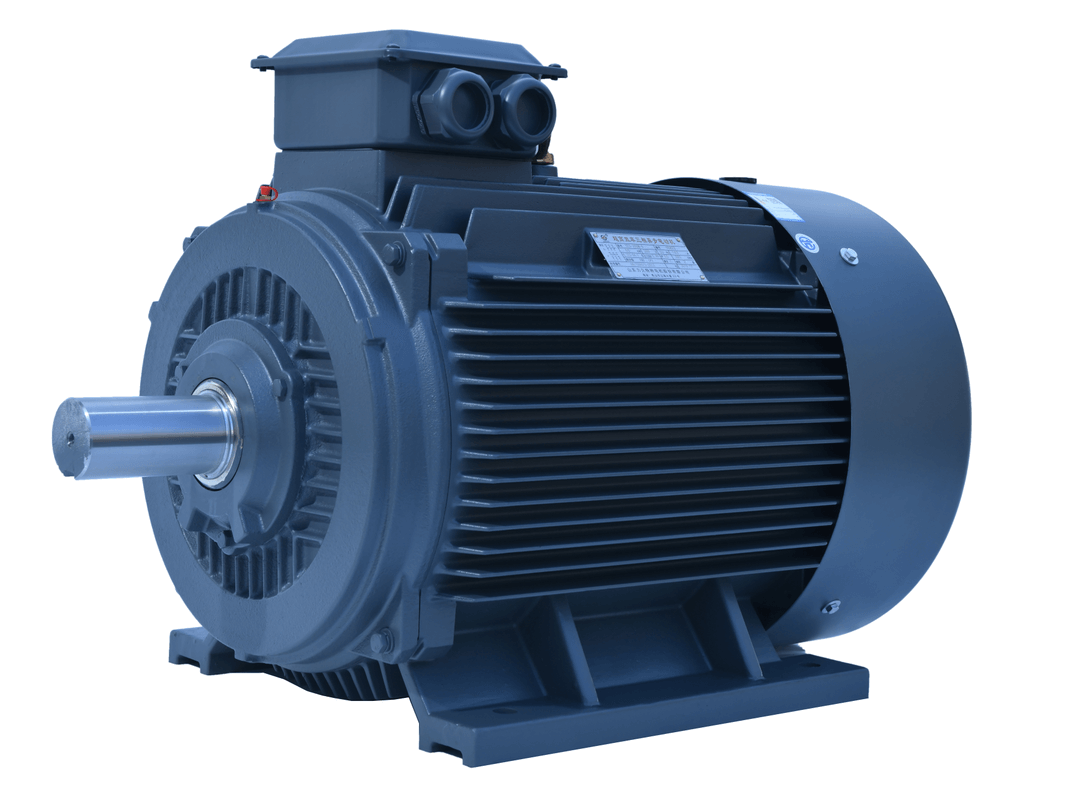

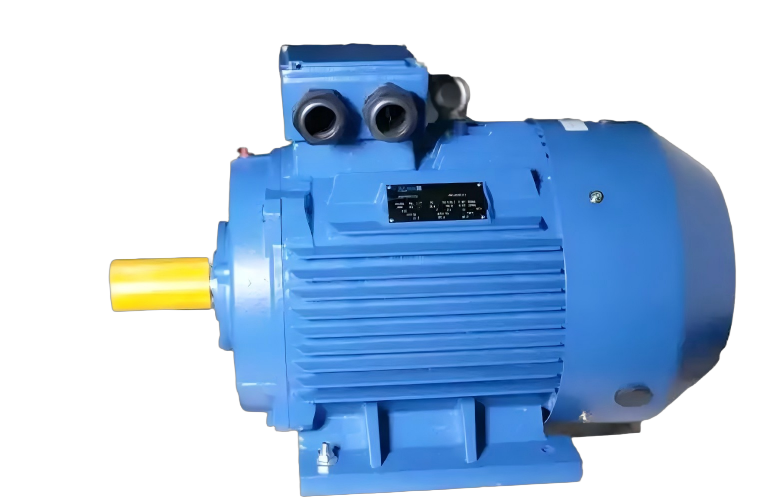

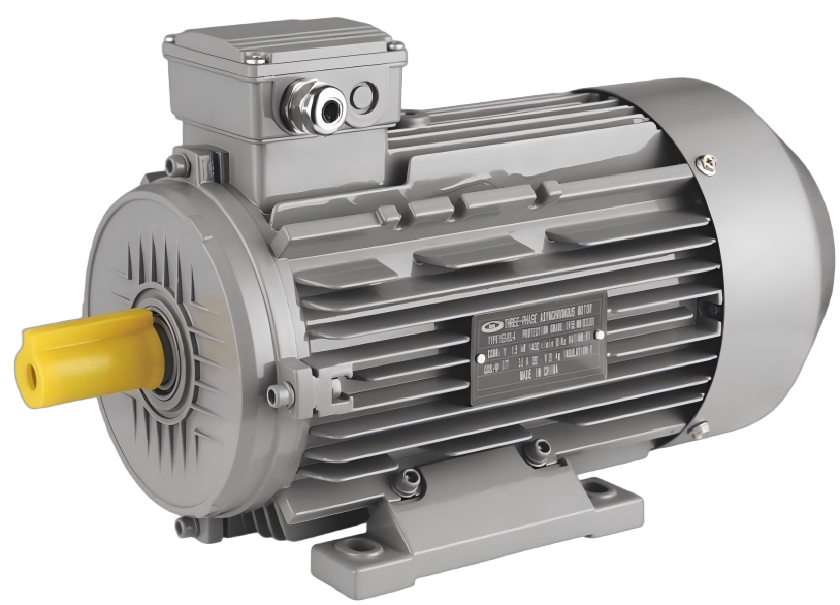

AXSON AИP series three-phase electrical motors are totally enclosed and fan-cooling.The power rating and installation size conform to GOST standard,220v/380v(56-112),380/660v(132-355)rated voltage with 50Hz rated frequency,F grade insulation,IP54/P5 degree of covering protection,C411 cooling method.With high efficiency,energy-saving,low noise,little vibration reliable running,it is widely used as drivers for various kind of machines, such as pumps,blower,conveyer,mixer,agriculture machinery and mine machinery etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

AИP Series Three-Phase Electrical Motors – Advantages & Features

1. Key Advantages

● High Energy Efficiency

IE3/IE4 efficiency standards (compliant with IEC 60034-30-1)

Reduces energy consumption by 15-30% compared to standard motors

● Robust & Durable Construction

Cast iron/aluminum frame for superior heat dissipation

Class F/H insulation (up to 155°C/180°C) for long service life

● Optimized Performance

High starting torque (up to 300% of rated torque)

Low noise & vibration (<68 dB) for smooth operation

● Smart & Connected

IoT-enabled versions for predictive maintenance

VFD compatibility for adjustable speed control

● Global Compliance

CE, CCC, UL, CSA certified

Meets international efficiency regulations

2. Key Features

Feature Specification

Efficiency Class : IE3/IE4 (IEC 60034-30-1)

Power Range : 0.75 kW – 400 kW

Voltage/Frequency : 380V-690V/50Hz, 460V/60Hz (customizable)

Speed Options : 750-3600 RPM (2/4/6/8-pole)

Protection Grade : IP55 (standard), IP66/IP67 (optional)

Cooling Method : IC411/IC416 (Fan-cooled/Forced ventilation)

Ambient Temperature : -30°C to +60°C (extended range available)

Mounting Options : B3, B5, B35, V1

Technical Table

Model	PH,KBT	N,o6,/MNH	3φφeKTWBHOCTb	cosφ	IHA(U=380B)	In/IH	Mm/MH	Mn/MH	Macca,KT
Model	Rated Power KW	Rated Power 1/min	Effciency %	Power factor	InA(U=380B)	Is/ln	Tmax/Tn	Ts/Tn	Effciency %
2P=2,n=3000 o6,MNH
ANP56A2	0.18	2700	65.7	0.77	0.55	5.3	2.2	2.2	4.7
ANP56B2	0.25	2720	68	0.78	0.73	5.3	2.2	2.2	5.1
ANP63A2	0.37	2730	69.7	0.81	1	5.7	2.2	2.2	5.5
ANP63B2	0.55	2770	72.7	0.82	1.4	5.7	2.3	2.2	6.4
ANP71A2	0.75	2820	74	0.83	1.9	6.1	2.3	2.2	8.5
ANP71B2	1.1	2790	77.6	0.83	2.7	6.7	2.3	2.2	9.6
ANP80A2	1.5	2830	78.1	0.84	3.6	7	2.3	2.2	15.5
ANP80B2	2.2	2840	80.6	0.85	5	7	2.3	2.2	19.5
ANP90L2	3	2845	83.4	0.86	6.5	7.2	2.3	2.2	25.4
ANP100S2	4	2870	83.7	0.88	8.4	7.5	2.3	2.2	33
ANP100L2	5.5	2870	84.8	0.89	11	7.5	2.3	2.2	38
ANP112M2	7.5	2880	85.4	0.88	15.2	7.2	2.4	2.2	49
ANP132M2	11	2900	87.4	0.9	21.8	7.2	2.3	2.2	83
ANP160S2	15	2925	88.4	0.88	30	7.1	2.4	2.2	120
ANP160M2	18.5	2925	89.3	0.89	36.3	7.1	2.4	2.2	140
ANP180S2	22	2940	89.8	0.9	42.7	7.2	2.5	2	170
ANP180M2	30	2940	90.7	0.9	56.9	7.3	2.5	2.1	203
ANP200M2	37	2940	91.2	0.89	71	7.1	2.4	2.1	247
ANP200L2	45	2945	91.8	0.89	84.9	7.1	2.4	2.1	255

Model	PH,KBT	N,o6,/MNH	3φφeKTWBHOCTb	(cosφ)	IH A(U=380B)	In/IH	Mm/MH	Mn/MH	Macca,KT
Model	Rated Power KW	Rated Power 1/min	Effciency %	Power factor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=2,n=3000o6,MNH
ANP225M2	55	2960	92	0.9	103	7.1	2.4	2.1	325
ANP250S2	75	2970	92.6	0.9	139	6.9	2.6	2	450
ANP250M2	90	2970	92.5	0.9	167	6.4	2.5	2	530
ANP280S2	110	2970	93.4	0.91	201	6.7	2.3	1.9	650
ANP280M2	132	2975	93.5	0.91	240	6.4	2.4	1.9	700
ANP315S2	160	2975	94.4	0.91	289	6.7	2.3	1.9	1170
ANP315M2	200	2975	94.7	0.92	358	6.6	2.3	1.9	1460
ANP355S2	250	2980	95.4	0.92	433	6.9	2.2	1.7	1930
ANP355M2	315	2980	95.6	0.92	548	6.9	2.2	1.7	2300
2P=4,n=1500 o6,MNH
ANP56A4	0.12	1325	56.5	0.66	0.5	4.6	2.2	2.1	4.5
ANP56B4	0.18	1325	61.2	0.68	0.7	4.9	2.2	2.1	5.1
ANP63A4	0.25	1325	64.5	0.73	0.82	5.1	2.2	2.1	5.6
ANP63B4	0.37	1325	66.3	0.76	1.12	5.1	2.2	2.1	6.4
ANP71A4	0.55	1350	70	0.73	1.75	5.4	2.3	2.2	8.2
ANP71B4	0.75	1360	71.3	0.77	2.2	5.7	2.3	2.2	9.6
ANP80A4	1.1	1375	74.5	0.76	3.04	5.8	2.3	2.3	16
ANP80B4	1.5	1390	77.5	0.78	3.95	6.2	2.3	2.3	19.5
ANP90L4	2.2	1400	80	0.81	5.3	6.8	2.3	2.3	25
ANP100S4	3	1420	81.4	0.82	7.2	7	2.3	2.3	34
ANP100L4	4	1420	82.8	0.81	9.5	7	2.3	2.3	37
ANP112M4	5.5	1430	84.1	0.82	12.3	6.6	2.3	2.3	55
ANP132S4	7.5	1440	86	0.84	16.1	6.7	2.3	2.2	76
ANP132M4	11	1450	87.1	0.84	23.1	6.8	2.3	2.2	88
ANP160S4	15	1455	88.7	0.85	30.8	6.8	2.3	2.2	138
ANP160M4	18.5	1455	89.8	0.86	37.8	6.8	2.3	2.2	142
ANP180S4	22	1465	90.6	0.86	44.4	7	2.4	2.1	177
ANP180M4	30	1465	91.2	0.86	59.6	6.8	2.3	2.1	190
ANP200M4	37	1470	92	0.87	3.1	7	2.3	2.2	247
ANP200L4	45	1465	92.3	0.87	88.4	6.9	2.4	2.2	260
ANP225M4	55	1480	92.4	0.87	106	6.7	2.3	2.2	326
ANP250S4	75	1475	92.9	0.86	146	6.9	2.3	2.2	477
ANP250M4	90	1475	93.3	0.87	170	6.4	2.4	2.2	485
ANP280S4	110	1480	93.8	0.88	207	6.6	2.2	2.1	731
ANP280M4	132	1480	93.8	0.88	244	6.7	2.3	2.3	710
ANP315S4	160	1480	94.8	0.89	297	6.8	2.4	2.3	1053
ANP315M4	200	1480	95	0.89	369	6.4	2.4	2.2	1243
ANP355S4	250	1490	95.4	0.9	443	6.7	2.4	2.1	1745
ANP355M4	315	1490	95.6	0.9	558	6.7	2.4	2.1	1957
2P=6,n=1000 o6,MNH
ANP63A6	0.18	860	55.5	0.64	0.8	4.1	2	1.9	6.4
ANP63B6	0.25	860	58.3	0.65	1.1	4	2	1.9	7.2
ANP71A6	0.37	895	62.8	0.68	1.33	4.7	2	1.9	8.8
ANP71B6	0.55	895	65.7	0.7	1.9	4.7	2	1.9	9.8
ANP80MA6	0.75	910	69	0.72	2.29	5.3	2.1	2	16.7
ANP80MB6	1.1	910	72.1	0.74	3.18	5.3	2.1	2	20
ANP90L6	1.5	920	76	0.74	4.2	6	2.1	2	25
ANP100L6	2.2	930	77.1	0.76	5.9	6.3	2.1	2	38
ANP112MA6	3	935	80.1	0.76	7.9	5.7	2.2	2.1	46
ANP112MB6	4	935	80.7	0.77	10.3	5.7	2.1	2.1	50
ANP132S6	5.5	955	82.8	0.78	13.4	6.3	2.1	2.1	75
ANP132M6	7.5	960	84.1	0.8	17.2	6.2	2.2	2.1	87

Model	PH,KBT	N,o6,/MNH	3φφeKTWBHOCTb	cosφ	IH A(U=380B)	In/IH	Mm/MH	Mn/MH	Macca,KT
Model	Rated Power KW	Rated Power 1/min	Effciency %	Power factor	In A(U=380B)	Is/In	Tmax/Tn	Ts/Tn	Effciency %
2P=6,n=1000 o6,MNH
ANP160S6	11	965	86.8	0.79	24.6	6.3	2.2	2	141
ANP160M6	15	965	88.2	0.81	33	6.5	2.2	2	155
ANP180M6	18.5	970	88.9	0.82	39	6.6	2.1	2.1	200
ANP200M6	22	975	89.7	0.83	45.2	6.3	2.2	2.1	233
ANP200L6	30	975	89.8	0.84	61.8	6.5	2.2	2.1	250
ANP225M6	37	980	91.3	0.85	73.5	6.6	2.1	2.1	360
ANP250S6	45	980	92	0.85	90.1	6.7	2.2	2.1	465
ANP250M6	55	985	92.4	0.84	110	6.8	2.3	2.2	520
ANP280S6	75	985	93	85	150	6.6	2.1	2	800
ANP280M6	90	985	92.9	0.85	177	6.6	2.2	2.2	800
ANP315S6	110	985	94.2	0.86	207	6.3	2.2	2	1045
ANP315M6	132	985	94.4	0.87	244	6.1	2.2	2	1103
ANP355S6	160	990	94.7	0.87	292	6.6	2.2	1.9	1748
ANP355M6	200	990	94.7	0.87	364	6.7	2.2	1.9	1934
ANP355MB6	250	990	95.2	0.88	451	6.6	2.5	1.9	2050
2P=8,n=750 o6,MNH
ANP71B8	0.25	655	54.5	0.6	1.17	3.7	1.9	1.8	9.1
ANP80MA8	0.37	675	60.1	0.62	1.5	4.3	1..9	1.8	18
ANP80MB8	0.55	675	62.9	0.62	2.18	4	2	1.8	18.9
ANP90LA8	0.75	685	72.4	0.7	2.33	4	2	1.9	30
ANP100L8	1.1	685	73	0.69	3.27	4	2	1.9	26
ANP100L4	1.5	690	73.5	0.72	4.5	4.7	2	1.9	38
ANP112MA8	2.2	700	75.6	0.71	6.4	4.9	2.1	2	46
ANP112MB8	3	700	76.9	0.71	8.6	5	2.1	2	53
ANP132S8	4	715	81.9	0.78	10.8	5.6	2.1	2.1	82
ANP132M8	5.5	715	80.9	0.74	14.7	5.6	2.1	2.1	90
ANP160S8	7.5	720	85.2	0.74	19.2	5.8	2.1	2	148
ANP160M8	11	720	86.4	0.76	27.3	5.8	2.1	2	155
ANP180M8	15	725	87.6	0.78	34.5	6.2	2	2	210
ANP200M8	18.5	730	89	0.78	41.6	6.2	2.1	1.9	250
ANP200L8	22	730	89.6	0.78	49.4	6.2	2.1	2	260
ANP225M8	30	735	90.6	0.78	65.3	6.5	2.1	2	360
ANP250S8	37	735	90.5	0.77	82.1	6.2	2.3	2.1	465
ANP250M8	45	735	91.5	0.77	99.1	6.2	2.3	2.1	520
ANP280S8	55	735	92	0.8	121	6	2	1.9	725
ANP280M8	75	740	92	0.81	154	5.8	2.1	1.9	800
ANP315S8	90	740	93.8	0.82	178	6.2	2.3	2	1160
ANP315M8	110	740	94	0.82	217	6.1	2.2	2	1175
ANP355S8	132	740	93.9	0.82	261	6.3	2.2	1.7	2000
ANP355M8	160	740	94.3	0.82	306	6.3	2.2	1.7	2150
ANP355MB8	200	740	94.7	0.83	386	6.5	2.5	1.8	2250
2P=10,n=600o6,MNH
ANP250S10	22	585	86	0.7	55.5	6	2	1.6	475
ANP250M10	30	585	88.5	0.7	73.6	6	2	1.6	535
ANP280S10	37	590	89	0.7	90.2	6	2	1.6	720
ANP280M10	45	590	91	0.72	110	6	2	1.6	835
ANP315S10	55	590	92	0.75	121	6.2	2	1.5	1150
ANP315M10	75	590	92.5	0.76	162	6.2	2	1.5	1220
ANP355S10	90	590	92.8	0.77	192	6.1	2	1.4	2080
ANP355MA10	110	590	93.2	0.78	230	6	2	1.3	1800
ANP355MB10	132	590	93.5	0.78	275	6	2	1.3	2500
ANP355M10	160	590	93.5	0.78	333	6	2	1.3	2500

FAQ

1 Q: Is AXSON a factory or a trading company?

A; AXSON is a factory.

2 Q: How long is the warranty period?

A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).

3 Q:What is the payment terms?

A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).

4 Q: Does AXSON offer on-site support?

A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.

5 Q: How long is your delivery time?

A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.

6 Q: Can you provide a turnkey solution for the complete crushing plant?

A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets

7 Q: How to select the proper equipment model?

A: Please confirm the following details:

1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)

2.>Feed size of raw material? (in millimeters)

3.>Required finished product size? (in millimeters)

4.>Production capacity requirements? (in tons per hour)

8 Q: Do you provide customized components and optional configurations?

A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.

9 Q: Why Choose Us as Your Equipment Manufacturer?

A: We don’t just deliver high-quality, cost-effective products—we also provide:

1.Customized solutions tailored to your needs

2. Professional end-to-end service

3. A more patient, detail-oriented, and responsible team

4. 24/7 support to ensure smooth operations
