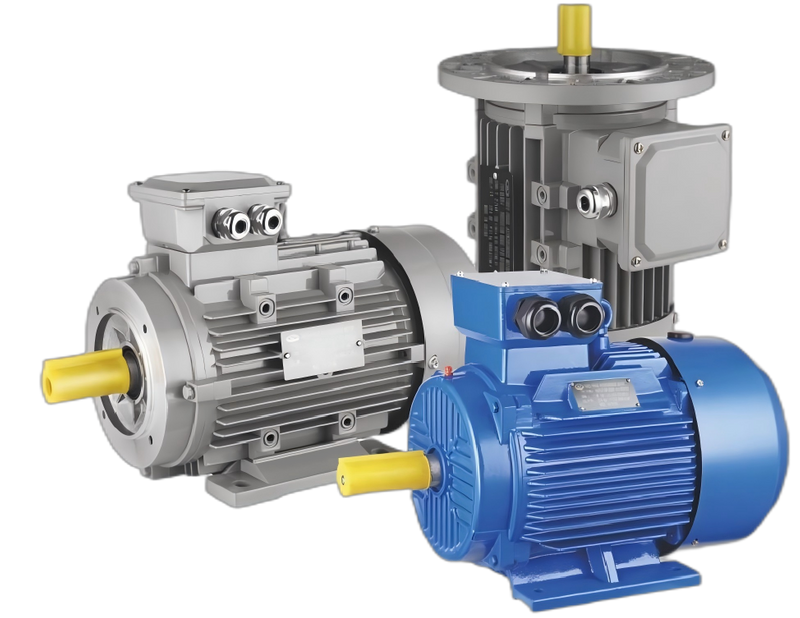

YEJ2 Series motor

AXSON YEJ2 series electromagnetic braking motors are improved products of YEJ series.It is in accordance with JB/T6456 requirements,and its electrical performance is in accord with Y2 series technical standard.The electric power of the controller should be synchronized with the electric power of the motor.
The electric motors are equipped with the electromagnetic brake on the non-shaft end.When electricity off,the retarding disc will automatically press in endshield which produces friction brake torque and stops the running of motor,the no-load brake duration is changed with the frame size of the motor,the range is 0.15-0.45 seconds.This kind of motor is considered as the driving force of various machinery and widely used in mechanical workout machine tool,transport machinery,package, woodworking,food machinery chemical engineering,textile,construction, shop,roll door machinery.

Availability:

Quantity:



Inquire Add to Basket

Product Description

YEJ2 Series Electromagnetic Brake Motors – Advantages & Features

1. Key Advantages

● Instant Braking Performance

Fast response time (<0.2 sec) for quick stopping

Reliable holding torque (10-20% of rated torque)

Spring-loaded fail-safe brake (works even during power failure)

● Energy Efficient Operation

IE2 efficiency standard (IE3 optional)

Optimized electromagnetic design reduces power consumption

● Compact Integrated Design

Motor + brake in one unit saves installation space

Lightweight aluminum housing (cast iron option available)

● Durable Construction

Class F insulation (155°C thermal class)

IP54/IP55 protection against dust and moisture

● Quiet & Smooth Operation

Noise level <65dB in operation

Vibration <2.5mm/s for precision applications

2. Key Features

Feature Specification

Power Range : 0.12–15kW

Brake Torque : 2–300Nm

Voltage : 220V/380V 50Hz (other voltages available)

Speed : 750/1000/1500 RPM

Insulation Class : Class F (155°C)

Protection Class : IP54 (IP55 optional)

Brake Type : DC electromagnetic

Response Time : <0.2 second

Technical Table

Type 型号	Rated Output 功率		Rated speed 转速 (r/min)	Current 电流 (A)	Eff 效率 (%)	Power factor 功率因数 (cosφ)	堵转电流额定电流 Ist/In	堵转转矩额定转矩 Tst/Tn	最大转矩额定转矩 Tmax/Tn	Exciting Voltage 励磁电压 (v)	Static braking torque not less than(N.m) 静态制动扭矩	No-load brake lag time limitation (s) 空载制动延迟时间
Type 型号	KW	Hp	Rated speed 转速 (r/min)	Current 电流 (A)	Eff 效率 (%)	Power factor 功率因数 (cosφ)	堵转电流额定电流 Ist/In	堵转转矩额定转矩 Tst/Tn	最大转矩额定转矩 Tmax/Tn	Exciting Voltage 励磁电压 (v)	Static braking torque not less than(N.m) 静态制动扭矩	No-load brake lag time limitation (s) 空载制动延迟时间
YEJ系列电机技术参数/Technical data-YEJ series motor-2 Poles-380V/50Hz
801-2	0.75	1	2825	1.9	73	0.84	7	2.2	2.2	100	7.36	0.2
802-2	1.1	1.5	2825	2.6	76	0.86	7	2.2	2.2	100	7.36	0.2
90S-2	1.5	2	2840	3.4	79	0.85	7	2.2	2.2	100	14.7	0.25
90L-2	2.2	3	2840	4.7	82	0.86	7	2.2	2.2	100	14.7	0.25
100L-2	3	4	2880	6.4	82	0.87	7	2.2	2.2	100	29.4	0.3
112M-2	4	5.5	2890	8.2	85.5	0.87	7	2.2	2.2	170	39.2	0.35
132S1-2	5.5	7.5	2900	11.1	86.2	0.88	7	2.2	2.2	170	73.6	0.4
132S2-2	7.5	10	2900	15	86.2	0.88	7	2.2	2.2	170	73.6	0.4
160M1-2	11	15	2930	21.8	87.2	0.88	7	2.2	2.2	170	147.2	0.5
160M2-2	15	20	2930	29.4	88.2	0.88	7	2.2	2.2	170	147.2	0.5
160L-2	18.5	25	2930	35.5	89	0.89	7	2.2	2.2	170	147.2	0.5
180M-2	22	30	2940	42.2	89	0.89	7	2.2	2.2	170	215.8	0.6
200L1-2	30	40	2950	56.9	90	0.89	7	2.2	2.2	170	294.3	0.7
200L2-2	37	50	2950	69.8	90.5	0.89	7	2.2	2.2	170	294.3	0.7
225M-2	45	60	2970	83.9	91.5	0.89	7	2.2	2.2	170	441.5	0.8
YEJ系列电机技术参数/Technical data-YEJ series motor-4 Poles-380V/50Hz
801-4	0.55	0.75	1390	1.6	70.5	0.76	6.5	2.2	2.2	100	7.36	0.2
802-4	0.75	又	1390	2.1	72.5	0.76	6.5	2.2	2.2	100	7.36	0.2
90S-4	1.1	1.5	1400	2.7	79	0.78	6.5	2.2	2.2	100	14.7	0.25
90L-4	1.5	2	1400	3.7	79	0.79	6.5	2.2	2.2	100	14.7	0.25
100L1-4	2.2	3	1420	5	81	0.82	7	2.2	2.2	100	29.4	0.3
100L2-4	3	4	1420	6.8	82.5	0.81	7	2.2	2.2	100	29.4	0.3
112M-4	4	5.5	1440	8.8	84.5	0.82	7	2.2	2.2	170	39.2	0.35
132S-4	5.5	7.5	1440	11.6	85.5	0.84	7	2.2	2.2	170	73.6	0.4
132M-4	7.5	10	1440	15.4	87	0.85	7	2.2	2.2	170	73.6	0.4
160M-4	11	15	1460	22.6	88	0.84	7	2.2	2.2	170	147.2	0.5
160L-4	15	20	1460	30.3	88.5	0.85	7	2.2	2.2	170	147.2	0.5
180M-4	18.5	25	1470	35.9	91	0.86	7	2.2	2.2	170	215.8	0.6
180L-4	22	30	1470	42.5	91.5	0.86	7	2.2	2.2	170	215.8	0.6
200L-4	30	40	1470	56.8	92.5	0.87	7	2.2	2.2	170	294.3	0.7
225S-4	37	50	1480	69.8	91.8	0.87	7	2.2	2.2	170	414.5	0.8
225M-4	45	60	1480	84.2	92.3	0.88	7	2.2	2.2	170	414.5	0.8

Type 型号	Rated Output 功率		Rated speed 转速 (r/min)	Current 电流 (A)	Eff 效率 (%)	Power factor 功率因数 (cosφ)	堵转电流额定电流 Ist/In	堵转转矩额定转矩 Tst/Tn	最大转矩额定转矩 Tmax/Tn	Exciting Voltage 励磁电压 (v)	Static braking torque not less than(N.m) 静态制动扭矩	No-load brake lag time limitation (s) 空载制动延迟时间
Type 型号	KW	Hp	Rated speed 转速 (r/min)	Current 电流 (A)	Eff 效率 (%)	Power factor 功率因数 (cosφ)	堵转电流额定电流 Ist/In	堵转转矩额定转矩 Tst/Tn	最大转矩额定转矩 Tmax/Tn	Exciting Voltage 励磁电压 (v)	Static braking torque not less than(N.m) 静态制动扭矩	No-load brake lag time limitation (s) 空载制动延迟时间
YEJ系列电机技术参数/Technical data-YEJ series motor-6 Poles-380V/50Hz
90S-6	0.75	1	910	2.3	72.5	0.7	6	2	2.2	100	14.7	0.25
90L-6	1.1	1.5	910	3.2	73.5	0.72	6	2	2	100	14.7	0.25
100L-6	1.5	2	940	4	77.5	0.74	6	2	2	100	29.4	0.3
112M-6	2.2	3	940	5.6	80.5	0.74	6	2	2	170	39.2	0.35
132S-6	3	4	960	7.2	83	0.76	6.5	2	2	170	73.6	0.4
132M1-6	4	5.5	960	9.4	84	0.77	6.5	2	2	170	73.6	0.4
132M2-6	5.5	7.5	960	12.6	85.3	0.78	6.5	2	2	170	73.6	0.4
160M-6	7.5	10	970	17	86	0.78	6.5	2	2	170	147.2	0.5
160L-6	11	15	970	24.6	86	0.78	6.5	2	2	170	147.2	0.5
180L-6	15	20	970	31.4	89.5	0.81	6.5	1.8	2	170	215.8	0.6
200L1-6	18.5	25	970	37.7	89.8	0.83	6.5	1.8	2	170	294.2	0.7
200L2-6	22	30	970	44.6	90.2	0.83	6.5	1.8	2	170	294.2	0.7
225M-6	30	40	980	59.5	90.2	0.85	6.5	1.8	2	170	441.5	0.8
YEJ系列电机技术参数/Technical data-YEJ series motor-8 Poles-380V/50Hz
132S-8	2.2	3	710	5.8	81	0.71	5.5	2	2	170	73.6	0.4
132M-8	3	4	710	7.7	82	0.72	5.5	2	2.2	170	73.6	0.4
160M1-8	4	5.5	720	9.9	84	0.73	6	2	2	170	147.2	0.5
160M2-8	5.5	7.5	720	13.3	85	0.74	6	2	2	170	147.2	0.5
160L-8	7.5	10	720	17.3	86	0.75	5.5	2	2	170	147.2	0.5
180L-8	11	15	730	27.7	86.5	0.77	6	1.7	2	170	215.8	0.6
200L-8	15	20	730	34.1	88	0.76	6	1.8	2	170	294.3	0.7
225S-8	18.5	25	730	41.3	89.5	0.76	6	1.7	2	170	441.5	0.8
225M-8	22	30	730	47.6	90	0.78	6	1.8	2	170	441.5	0.8
