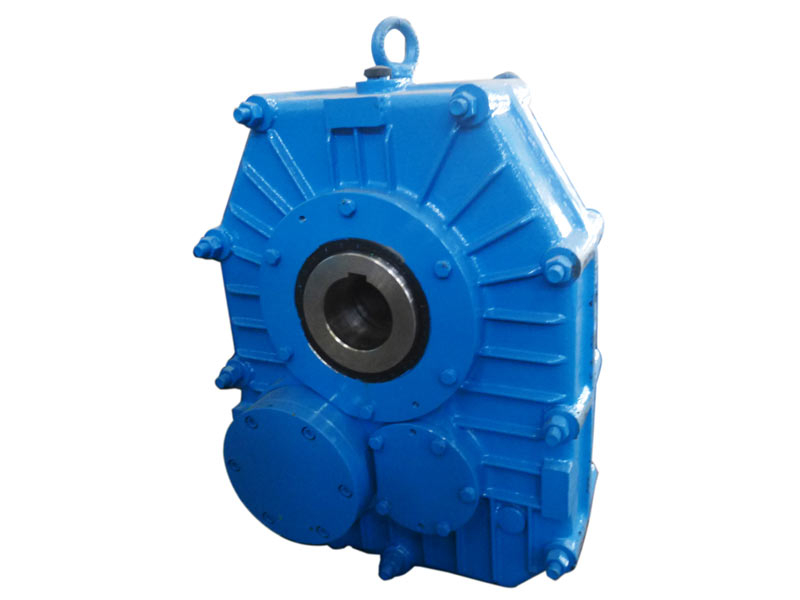

Product Description
● Ultra-High Load Capacity
Torque range: 500–50,000 Nm – Handles extreme industrial loads
Power transmission up to 1,000 kW – For heavy-duty applications
97% peak efficiency (helical-bevel models) – Minimizes energy loss
● Precision Engineering
≤15 arcmin backlash (P1 precision grade) – Ensures accurate motion control
Hardened & ground gears (20CrMnTi, HRC 58-62) – 3× longer life than standard gears
SKF/FAG premium bearings – Rated for 100,000+ hours operation
● Maintenance Optimized
Split housing design – Enables internal inspection without full disassembly
Sealed lubrication system – Synthetic oil lasts 50,000+ service hours
Quick-access service ports – For grease replenishment without downtime
● Smart Connectivity (Optional)
Vibration/temperature sensors – Real-time condition monitoring
IoT gateway compatibility – Integrates with Industry 4.0 systems
● Extreme Environment Ready
IP66 protection – Complete dust/water resistance
-30°C to +120°C range – Arctic to desert operation
ATEX versions – Certified for explosive atmospheres
Category Specification
Gear Types : Helical / Bevel-Helical / Planetary
Ratio Range : 5:1 to 200:1
Housing Material : GGG50 cast iron
Input Config. : IEC standard motor flanges
Lubrication : Synthetic oil (ISO VG 320)
Noise Level : ≤72 dB(A)
Technical Table
| Models | Output Shaft Bore | Input Power | Max. Torque | Ratio | Weight |
| ZJY106 | 45mm | 2.3kW~12kW | 750N.m | 10, 11.2, 12.5, 14, 16, 18, 20, 22.4, 25 | 27kg |
| ZJY125 | 55mm | 3.8kW~19kW | 1250N.m | 40kg | |
| ZJY150 | 60mm | 7.1kW~33kW | 2120N.m | 67kg | |
| ZJY180 | 70mm | 11kW~56kW | 3550N.m | 110kg | |
| ZJY212 | 85mm | 19kW~92kW | 6000N.m | 173kg | |
| ZJY250 | 100mm | 32kW~157kW | 10000N.m | 250kg | |
| ZJY300 | 120mm | 46kW~225kW | 14720N.m | 380kg |
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
