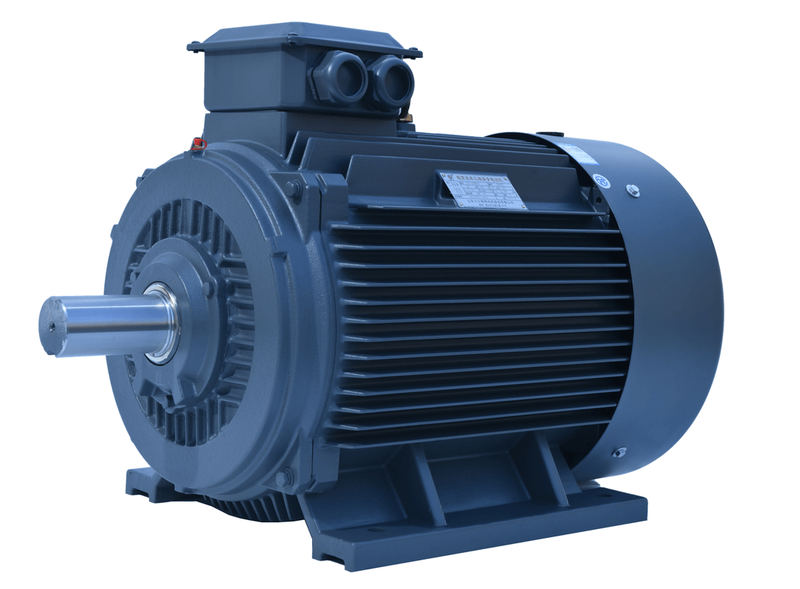

Product Description
1>High Energy Efficiency
Meet IE2 efficiency standard (IE3 optional)
Optimized electromagnetic design reduces energy losses
2>Robust Construction
Heavy-duty cast iron frame
Class F insulation (155°C thermal class)
IP55 protection standard (IP56 optional)
3> Superior Performance
High starting torque (up to 250% of rated torque)
Low vibration (<2.8mm/s) and noise (<75dB)
Excellent overload capacity (150% for 2 minutes)
4>Versatile Application
Wide power range: 0.55-315kW
Multiple speed options: 2/4/6/8 pole
Various mounting configurations available
Feature Specification
Efficiency Class ：IE2 (IE3 optional)
Power Range ： 0.55-315kW
Technical Table
| Type 型号 | Rated Output 功率 | FullLoad全负荷 | Ist 堵转电流 (A) | 堵转转矩 额定转矩 Tst/Tn | 最大转矩 额定转矩 Tmax/Tn | ||||
| Kw | Hp | Speed 转速 (r/min) | Current 电流 (A) | Eff 效 率 (%) | (cosφ) | ||||
| JY09B-2 | 0.18 | 1/4 | 2800 | 1.89 | 60 | 0.72 | 12 | 1.8 | 2.2 |
| JY09A-2 | 0.25 | 1/3 | 2800 | 2.51 | 63 | 0.72 | 15 | 1.8 | 2.2 |
| JY1B-2 | 0.37 | 1/2 | 2800 | 3.54 | 66 | 0.72 | 21 | 1.8 | 2.2 |
| JY1A-2 | 0.55 | 3/4 | 2800 | 5.26 | 66 | 0.72 | 30 | 1.8 | 2.2 |
| JY2B-2 | 0.75 | 1 | 2850 | 6.49 | 70 | 0.75 | 37 | 1.8 | 2.2 |
| JY2A-2 | 1.1 | 1.5 | 2850 | 9.15 | 71 | 0.77 | 53 | 1.8 | 2.2 |
| JY09A-4 | 0.18 | 1/4 | 1400 | 2.36 | 56 | 0.62 | 12 | 1.8 | 2.2 |
| JY1B-4 | 0.25 | 1/3 | 1400 | 3.05 | 60 | 0.62 | 15 | 1.8 | 2.2 |
| JY1A-4 | 0.37 | 1/2 | 1400 | 4.24 | 64 | 0.62 | 21 | 1.8 | 2.2 |
| JY2B-4 | 0.55 | 3/4 | 1400 | 5.49 | 67 | 0.68 | 29 | 1.8 | 2.2 |
| JY2A-4 | 0.75 | 1 | 1400 | 7.27 | 69 | 0.68 | 37 | 1.8 | 2.2 |
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
