Pulley

Conveyor Pulley– Advantages &  Features

1. Advantages

• High Load Capacity

Handles belt tensions up to 10,000 kN (mining/steel mills).

• Long Service Life

Rubber lagging extends lifespan 3x vs. bare pulleys.

Replaceable end discs reduce maintenance costs.

• Energy Efficient

Precision-balanced pulleys reduce motor power consumption by 5–10%.

• Safety & Reliability

Anti-explosion designs for coal mines.

Fail-safe locking assemblies prevent shaft slippage.

• Low Maintenance

Sealed bearings operate 50,000+ hours without servicing.

2. Key Features

① Robust Construction

Shell Material: High-grade steel (Q235B, Q345B), stainless steel, or custom alloys.

Shaft Material: Forged 45# carbon steel or 40Cr alloy steel (heat-treated for strength).

Welding Process: Submerged arc welding (SAW) for crack-resistant joints.

Balancing: Dynamic balancing (G6.3 grade) to minimize vibration.

② Lagging Options

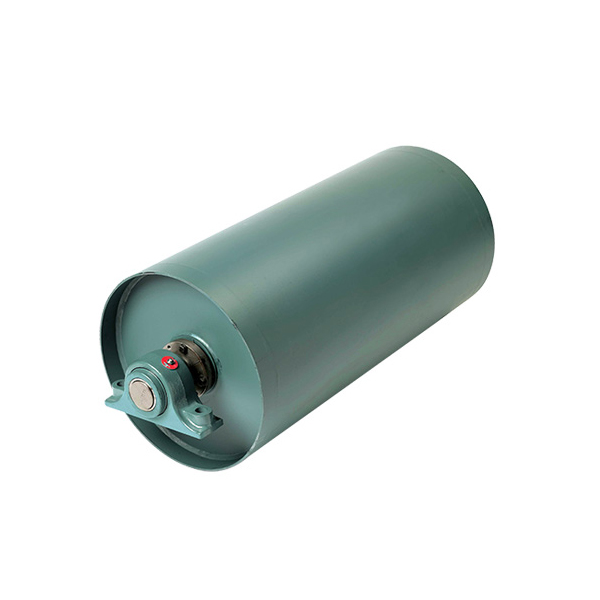

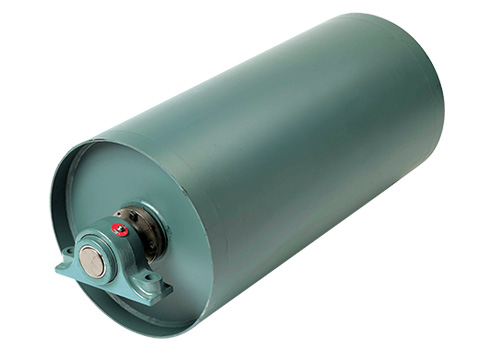

Plain (Bare) Pulley: Standard for general use.

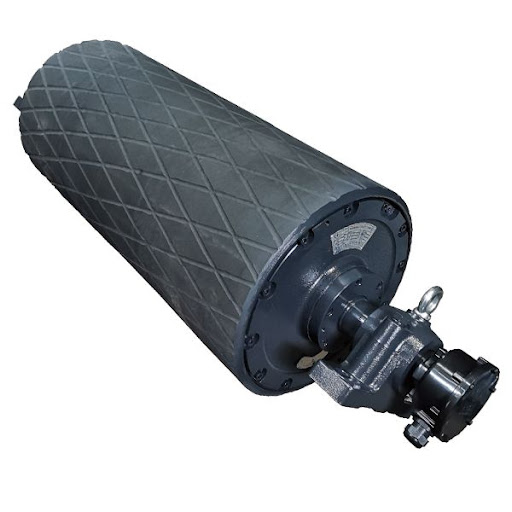

Rubber Lagging:

Diamond Groove – Superior grip in wet/muddy conditions.

Herringbone Groove – Best for high-torque applications.

Ceramic Lagging – Extreme abrasion resistance (mining, slag handling).

③ Bearing & Hub Assembly

Bearing Types: Spherical roller bearings (22200/22300 series) for heavy loads.

Seals: Labyrinth + grease purge system for long life in dusty environments.

④ Custom Designs

Diameters: 200–2000mm (larger sizes for mining).

Face Widths: Matched to belt width (500–3000mm).

Special Types:

Wing Pulleys – Self-cleaning for sticky materials.

Magnetic Pulleys – For tramp iron removal.

Conveyor Pulley– Product Uses

 1. Drive Pulley (Head Pulley)

* Function: Transmits power from the motor to move the conveyor belt.

* Applications:

Mining: Drives long-distance coal/ore conveyors

Cement Plants: Powers clinker and raw material belts

Ports: Drives ship loaders/unloaders

Steel Mills: Heavy-duty sinter/pellet conveyors

Key Features:

• Rubber or ceramic lagging for better traction

• High-torque designs for heavy loads

2. Tail Pulley

* Function: Redirects the belt at the conveyor's return end.

* Applications:

Quarries: Reverses aggregate belts

Power Plants: Coal/ash conveyor systems

Recycling: Returns waste sorting belts

Key Features:

• Self-cleaning wing pulleys for sticky materials

• Shaft-mounted designs for compact spaces

3. Bend Pulley (Snub Pulley)

* Function: Increases belt wrap angle on drive pulleys.

* Applications:

Underground Mining: Boosts traction in steep inclines

Food Processing: Tightens belts in hygienic zones

Packaging: Adjusts belt tension in sorting lines

Key Features:

• Smaller diameter than drive pulleys

• Smooth surface to reduce belt wear

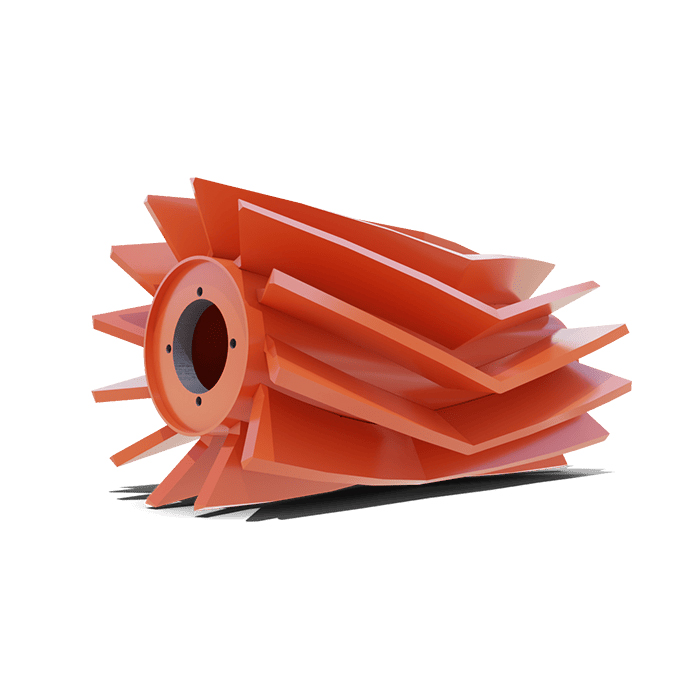

4. Wing Pulleys Self-cleaning for sticky loads
