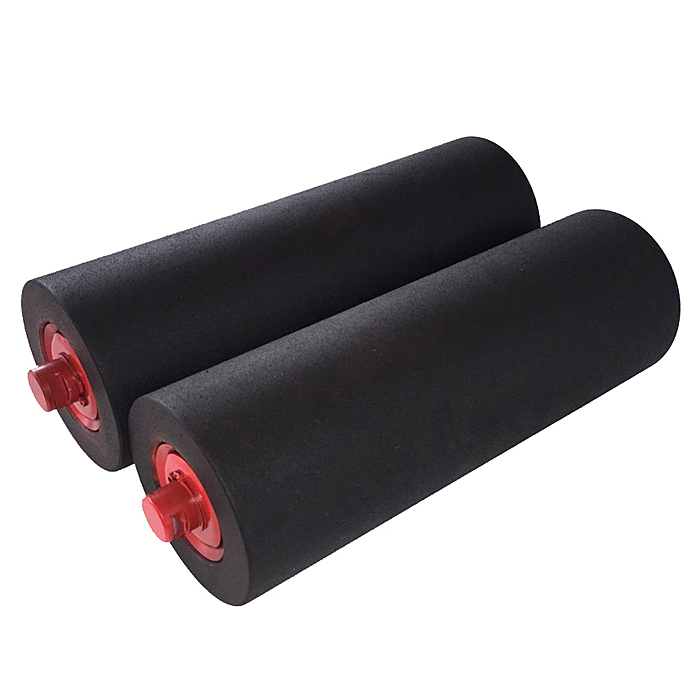

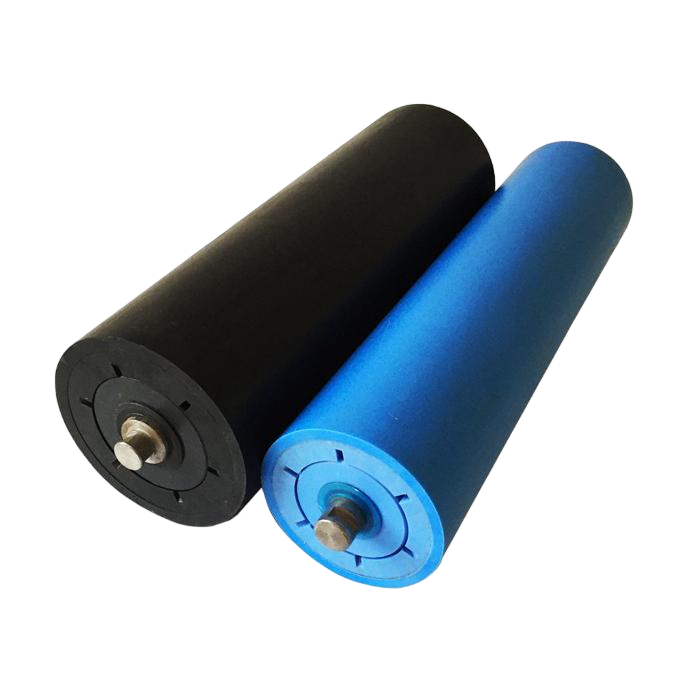

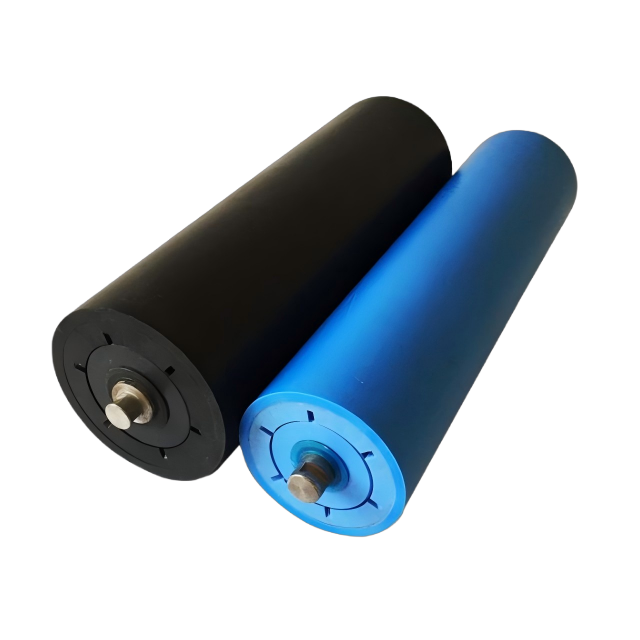

HDPE Roller

HDPE Roller – Advantages &  Features

1. Core Advantages

* Superior Corrosion Resistance

Impervious to rust, acids, alkalis, and saltwater – ideal for chemical plants, marine environments, and food processing.

* Lightweight & Energy Efficient

30-50% lighter than steel rollers, reducing conveyor motor load and power consumption by up to 20%.

* Hygienic & Food-Safe

FDA/USDA/EU compliant versions available for food, pharmaceutical, and packaging industries.

Smooth, non-porous surface prevents bacterial growth and material buildup.

* Low Noise & Vibration

Operates below 65 dB, making it suitable for indoor facilities like warehouses and clean rooms.

* Low Maintenance

No lubrication required – sealed bearings and UV-stabilized HDPE resist degradation.

50,000+ hour lifespan in typical conditions.

2. Key Features

① Material Specifications

Base Material: High-Density Polyethylene (HDPE) with optional UV stabilization

Load Capacity: 50–500 kg per roller (custom reinforcements available)

Temperature Range: -40°C to +80°C (short peaks to 100°C)

② Structural Design

Tube Wall Thickness: 5–15 mm (impact-resistant)

Shaft Options:

Standard: Carbon steel with HDPE overmolding

Premium: Stainless steel core (316L for corrosive environments)

Bearing Systems:

Sealed deep groove bearings (IP66)

Optional ceramic bearings for washdown areas

③ Customization Options

Diameters :  50–200 mm

Surface Treatments:

Anti-static coating (for explosive atmospheres)

Grooved/spiral patterns (improved belt tracking)

Color-coding (industry-specific identification)

HDPE Roller -Product Uses

• Food & Beverage: Grain, sugar, frozen food conveyors.

• Chemical Plants: Acid/alkali-resistant material handling.

• Wastewater Treatment: Sludge/solid waste conveyors.

• Marine/Ports: Saltwater-resistant cargo handling.

• Packaging: Lightweight parcel/sorting systems.
