Product Description

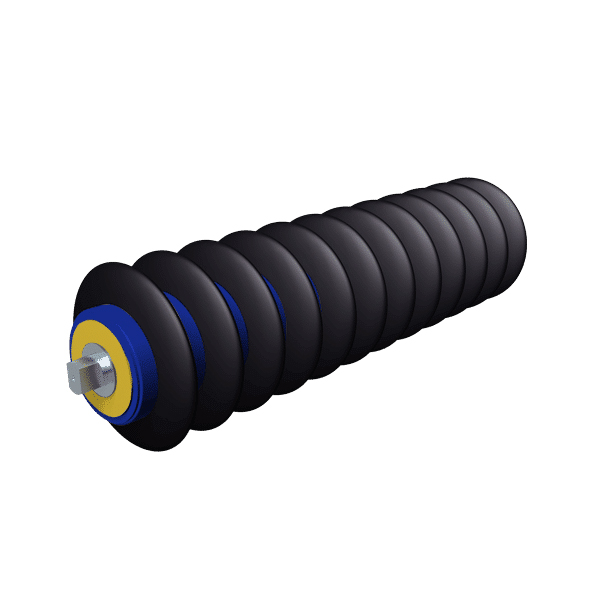

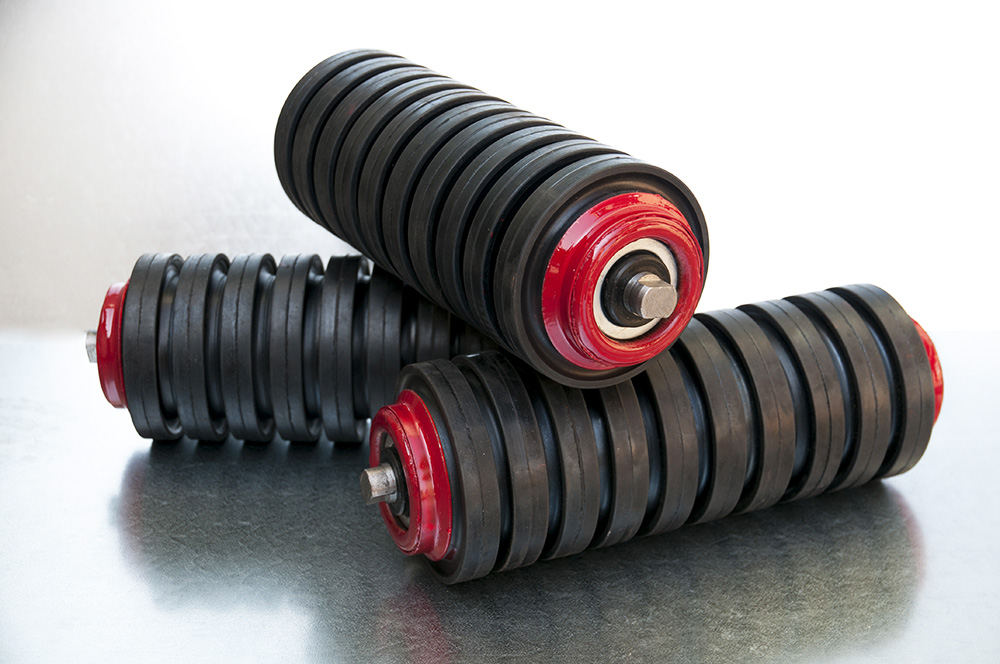

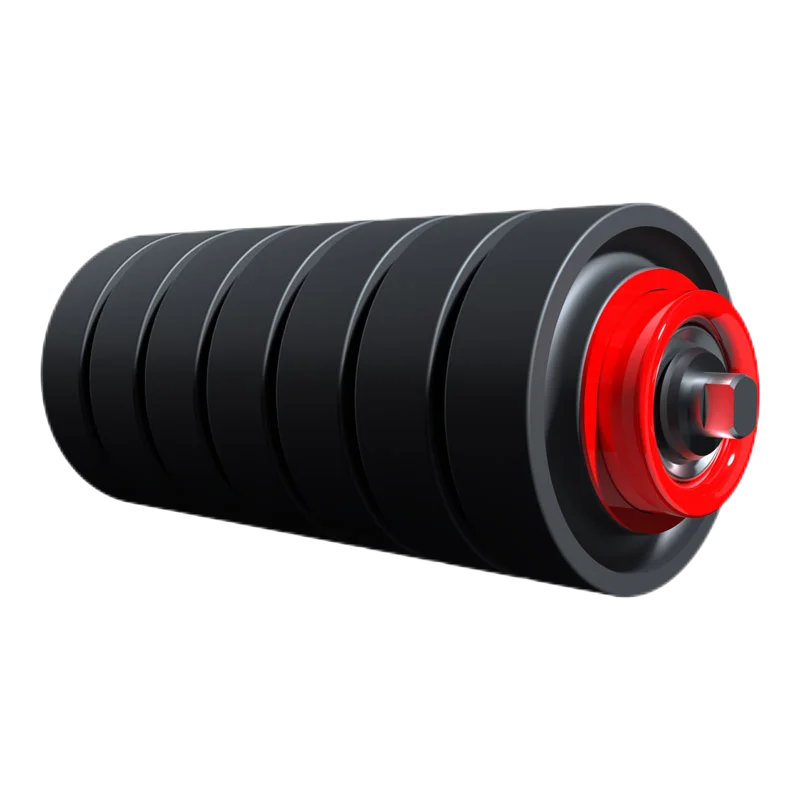

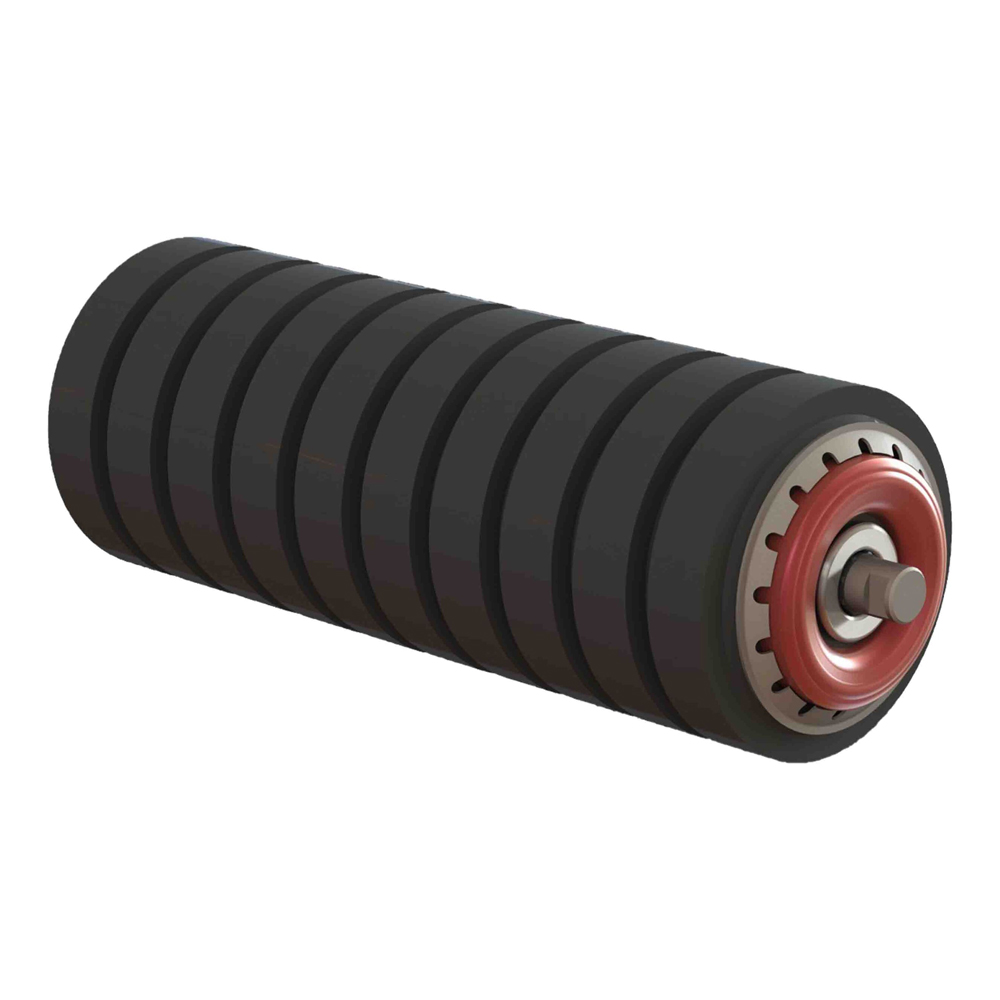

Impact rollers - Features & Advantages
Shock Absorption
Rubber discs or rings cushion impacts (reduces force by 30–50%).
Prevents belt punctures from sharp materials.
Heavy-Duty Construction
Steel core with high-strength rubber buffers.
Reinforced bearings (tapered or spherical) for high-load capacity.
Long Service Life
Abrasion-resistant rubber (HRC 60-70) for harsh conditions.
Sealed & lubricated bearings (IP66) for minimal maintenance.
Noise Reduction
Rubber dampens material impact noise (reduces by 10–15 dB).
Easy Installation
Compatible with standard conveyor frames (bolt-on or snap-in).
Technical Parameters
| Description |
| Standard: JIS / CEMA / DIN / ISO |
| Bearing: 6204~6310 |
| Roller Diameter Ø89~Ø159mm [Ø3.5"~Ø6.25"] |
| Roller Length: 100-2400mm. |
| Shaft Diameter: 20, 25, 30, 35, 40, 45, 50mm |
| Seals: labyrinth |
| Rubber material:natural rubber |
| Size: be customized |
Product Uses
Carrying rollers-Product Uses
Mining: Coal, iron ore, copper loading points.
Quarries: Crushed stone, gravel transfer.
Cement Plants: Limestone/clinker impact zones.
Recycling: Shredded metal, MSW handling.
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
