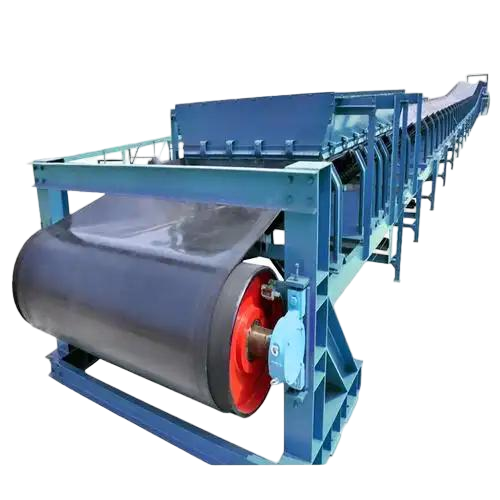

TD75 Fixed Belt Conveyor Advantages & Features                                                                Main Advantages

• Cost-Effective Solution

Lower initial investment compared to newer models (like DTⅡ), making it ideal for budget-conscious projects.

Simple structure reduces long-term maintenance costs.

• Proven Reliability

Mature design with decades of successful industrial applications.

Stable performance in various harsh environments (dust, moisture, moderate temperatures).

• Easy Installation & Maintenance

Standardized components (rollers, idlers, frames) allow quick assembly and replacement.

Open structure provides easy access for inspection and cleaning.

• Flexible Configuration

Adaptable to horizontal, inclined (≤18°), or slightly curved layouts.

Handles bulk materials (coal, ore, grain) and packaged goods.

Supports lump sizes up to 500mm (depending on belt width).

• Energy Efficient

Optimized motor and reducer system minimizes power consumption.

Smooth belt operation reduces friction losses.

2. Key Technical Features

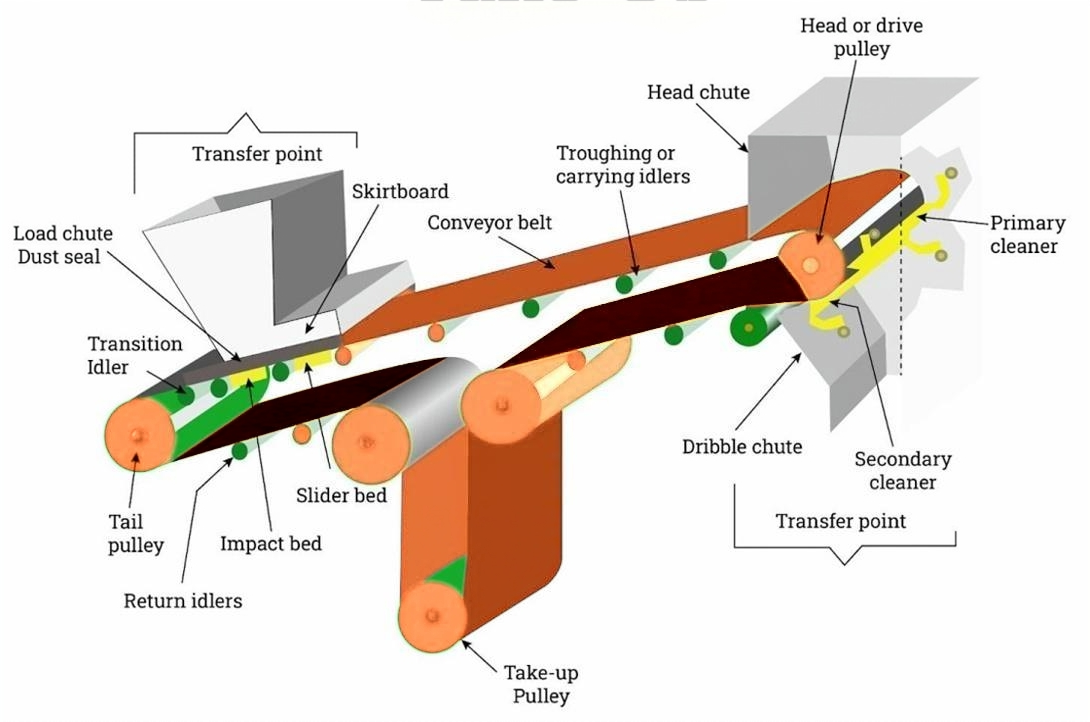

① Structural Design

Frame: Sturdy steel construction with standardized sections (modular assembly).

Idlers:

Carrying idlers: 3-roll troughing type (30°/35°/45° angles).

Return idlers: Flat or V-type for belt stability.

Drive Unit:

Electric motor + gear reducer + drum pulley system.

Optional frequency control for speed adjustment.

② Conveyor Belt Options

Standard: Rubber belt (fabric ply: EP, NN).

Special Types:

Heat-resistant (up to 180°C for materials like cement clinker).

Cold-resistant (-40°C for frozen materials).

Oil-/chemical-resistant (for industrial applications).

③ Safety & Protection

Anti-runaway device – Prevents reverse movement on inclined conveyors.

Belt misalignment switches – Automatic shutdown if belt drifts.

Emergency pull-cord stops – Along the conveyor length.

④ Performance Parameters

Specification Range

Belt Width 500–1400mm (6 standard sizes)

Belt Speed 0.8–4.0 m/s (adjustable)

Capacity Up to 2000 t/h

Max Incline ≤18° (standard)

Operating Temp. -20°C to +40°C (wider with special belts)

3. Comparison with DTⅡ Conveyor

Feature TD75 DTⅡ (Upgraded Version)

Max Capacity 2000 t/h 3000 t/h

Belt Width 500–1400mm 500–2400mm

Frame Strength Standard duty Heavy-duty reinforcement

Applications General-purpose Large-scale, heavy materials

Cost Lower initial cost Higher investment

4. Ideal Applications

Coal & Mining: Transporting raw coal, iron ore, aggregates.

Cement Plants: Moving limestone, clinker, gypsum.

Power Stations: Coal/ash handling systems.

Ports & Grain: Bulk cargo loading/unloading.

Steel Industry: Sinter, pellets, slag conveyance.

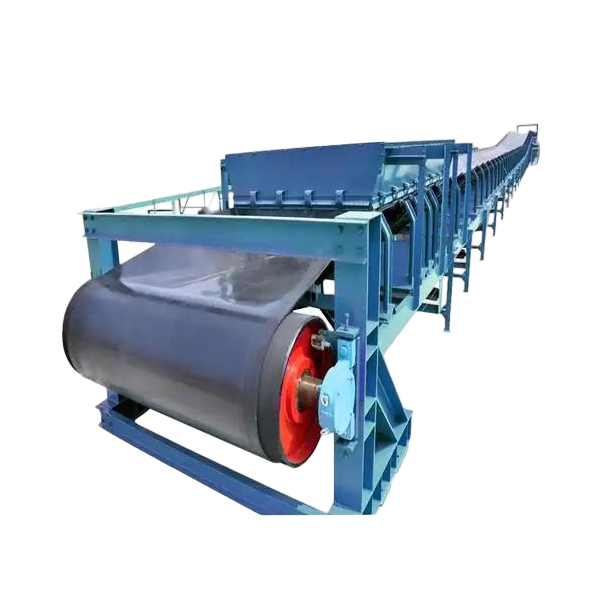

TD75 Fixed Belt Conveyor – Product Uses

The TD75 Fixed Belt Conveyor is a versatile and economical bulk material handling solution widely applied across multiple industries. Its robust yet simple design makes it ideal for continuous transportation of various materials in fixed installations.

1. Mining & Mineral Processing

Coal Mining: Transporting raw coal from mines to washing plants or stockyards

Metallic Ores: Handling iron, copper, bauxite, and other mined ores

Quarry Operations: Moving crushed stone, sand, and aggregates

2. Cement & Building Materials

Raw Material Handling: Conveying limestone, clay, gypsum to crushers

Clinker Transport: Moving cement clinker to storage or grinding mills

Finished Products: Distributing bagged cement or bulk powder

3. Power Generation

Coal Handling Systems: Feeding boilers from coal yards

Ash Removal: Transporting fly ash and bottom ash

Biomass Plants: Handling wood chips or agricultural waste

4. Ports & Terminals

Bulk Cargo Operations: Loading/unloading ships with grain, fertilizers

Stockyard Management: Stacking and reclaiming bulk materials

5. Steel & Metallurgy

Raw Material Feeding: Transporting iron ore, sinter, pellets

Byproduct Handling: Moving slag and mill scale

6. Chemical & Fertilizer

Raw Material Transport: Handling sulfur, phosphate rock

Finished Products: Moving packaged or bulk fertilizers

7. Food Processing

Grain Handling: In flour mills, feed mills, and silos

Sugar Production: Transporting raw cane or refined sugar

8. Light Industry

Paper Mills: Moving wood chips, recycled paper

Textile Plants: Handling raw cotton or synthetic fibers

9. Waste Management

MSW Processing: Conveying sorted waste

Recycling Plants: Moving scrap metal, plastics

1 Q: Is AXSON a factory or a trading company?

A; AXSON is a factory.

2 Q: How long is the warranty period?

A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).

3 Q:What is the payment terms?

A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).

4 Q: How long is your delivery time?

A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
