Product Description

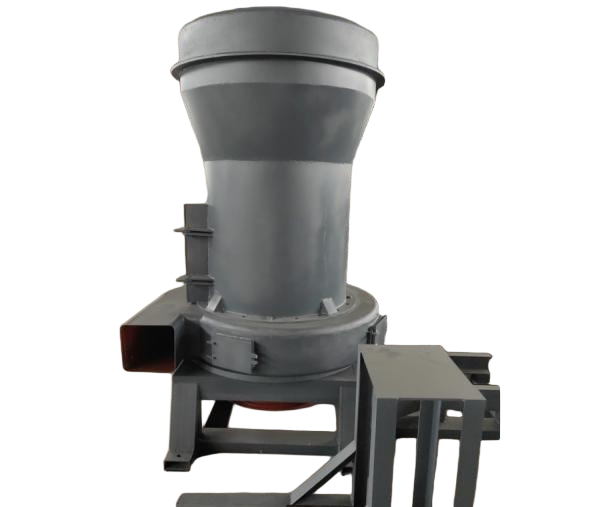

* Vertical roller design: Material undergoes layered grinding on the mill table, 30-50% more energy-efficient than ball mills
* High-efficiency classification system: Dynamic separator ensures adjustable fineness (80-600 mesh)
* Case: A cement plant reduced raw meal grinding power consumption from 27kWh/t to 18kWh/t
* Vertical structure: Saves 40% floor space compared to same-capacity ball mills
* Integrated design: Combines crushing/grinding/classification/collection in one unit
* Special versions:
Modular assembly (for underground mine installation)
Containerized (meets shipping size limits)
* Automatic grinding pressure adjustment: Real-time optimization based on feed rate (±2% accuracy)
* Remote monitoring: 4G/5G connectivity for real-time tracking of vibration/bearing temperature/production data
* Predictive maintenance: AI vibration analysis provides 200-hour advance fault warnings
* Key wear-resistant parts:
Grinding table liner: High-chromium alloy (service life ≥18,000 hours)
Roller: Composite ceramic coating (3x longer lifespan)
* Easy maintenance: Hydraulic roller swing-out enables single-person roller sleeve replacement in 4 hours
* Fully enclosed operation: Dust emissions <10mg/m³ (with pulse dust collector)
* Noise control: <75dB (multi-layer soundproofing)
* Zero wastewater discharge: Dry collection system
Technical Table
| Model | Grinding roll | Grinding ring | Feeding Size | Motor Power | Finished particle size | Different fineness corresponds to production capacity(t/h) | |||||
| Number | Diameter | Height | Inner diameter | Height | 0.125 | 0.075 | 0.044 | ||||
| YGM Series | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (mm) | (mm) | (mm) | (mm) | |
| YGM7815 | 3 | 260 | 150 | 780 | 150 | ≤15 | 18.5 | 0.613-0.033 | 1.5-3.0 | 1.1-2.2 | 0.8-1.4 |
| YGM8514 | 3 | 270 | 140 | 850 | 140 | ≤20 | 22 | 0.613-0.033 | 1.8-5.0 | 1.3-2.8 | 1.0-2.0 |
| YGM9518 | 4 | 310 | 180 | 950 | 180 | ≤25 | 37 | 0.613-0.033 | 2.0-8.2 | 1.8-3.6 | 1.3-3.0 |
| YGM4121 | 5 | 410 | 210 | 1280 | 210 | ≤30 | 75 | 0.95-0.044 | 2.3-13.6 | 2.0-4.5 | 1.8-4.0 |
| YGM4528 | 6 | 450 | 280 | 1600 | 280 | ≤35 | 132 | 1.6-0.045 | 4.9-13.7 | 1.1-2.2 | 2.0-8.0 |
| Model | Number of ring rolls | Diameter | Number of grinding rings and raceways | speed of the main engine | Feeding Size | Finished particle size | Capacity | Overall dimension | |||
| SCM Series | (mm) | (r/min) | (mm) | (mesh) | (kg/h) | (mm) | |||||
| SCM8021 | 21 | 800 | 1x3 | 230-400 | ≤10 | 325-2500 | 500-4500 | 13x3x5.8 | |||
| SCM9024 | 24 | 900 | 2x4 | 200-220 | ≤20 | 325-2500 | 800-6500 | 14.7x4.8x8.6 | |||
| SCM1036 | 36 | 1000 | 2x4 | 180-200 | ≤20 | 400-7500 | 1000-8500 | 18x4.6x8.6 | |||
| SCM1250 | 44 | 1300 | 2x4 | 135-155 | ≤20 | 325-2500 | 2500-14000 | 14x9x10.25 | |||
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
