Product Description
Vibration motor drive: Adjustable amplitude ensures continuous, uniform material flow without clogging or interruptions
Low energy consumption: 30%~50% more efficient than traditional belt feeders

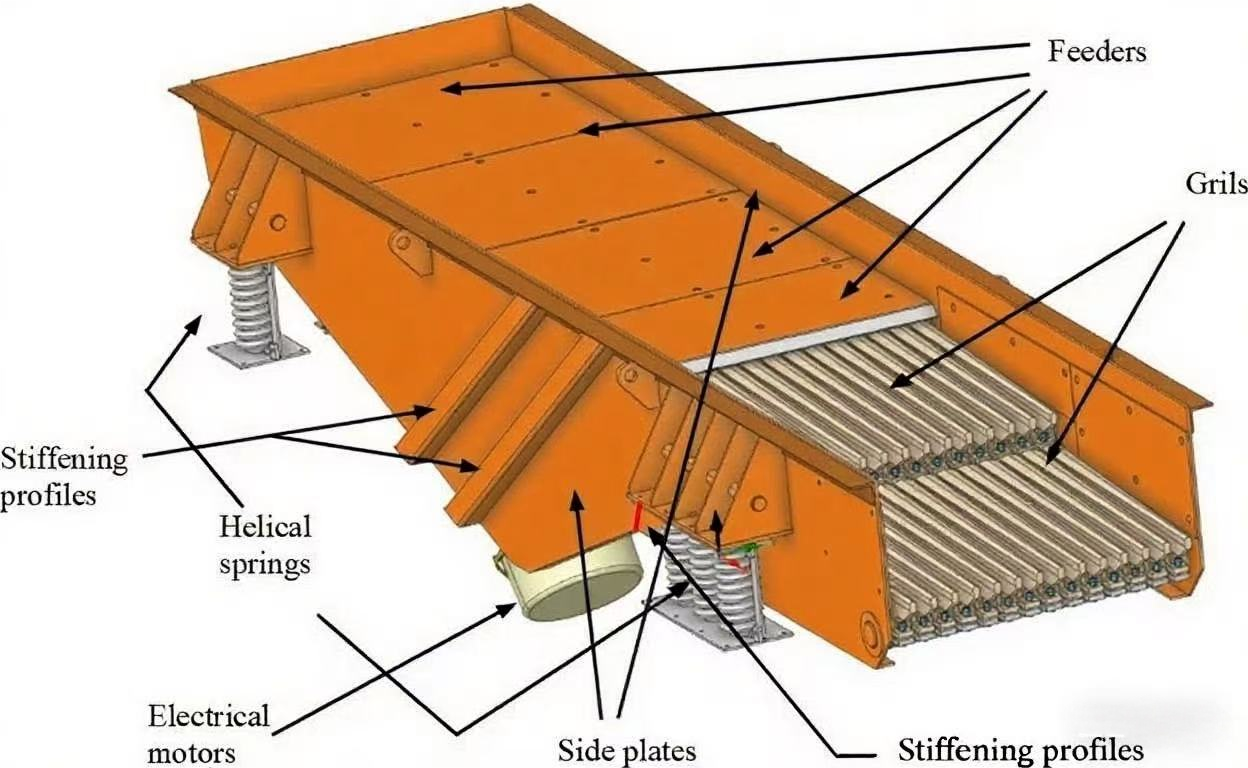

Heavy-duty trough design: Uses wear-resistant steel (NM400) or rubber/ceramic liners (3x lifespan)
No transmission parts: 60% fewer mechanical failures vs. chain feeders
Quick maintenance: Modular design allows liner replacement in 1~2 hours
Wide material compatibility: Handles powders (e.g., cement) to lump ore (≤800mm)
Harsh conditions: Heat-resistant (≤150°C), dust-proof (IP65), corrosion-resistant (stainless steel optional)
Variable frequency drive: Precise feed rate control (700~3000 vibrations/minute)
Automation-ready: PLC/DCS integration for remote monitoring & fault alerts
Energy-saving mode: Reduces power by 40% during idle operation
Fast ROI: 6~12 months payback period (vs. conventional feeders)
Long-life components: Vibration motor bearings last 50,000+ hours
Technical Parameters
| Model | Tank specification | Bar specification | Installation angle | Double-amplitude | Eccentric shaft speed | Max feed size | Capacity | Power | Normal selection processing capacity(t/h) | Overall dimension |
| FG Series | (mm) | (mm) | (°) | (mm) | (r/min) | (mm) | (t/h) | (kw) | (t/h) | (mm) |
| FG1045 | 1000×4500 | 1×1200 | 5(0-10) | 8.5 | 1000(500-1000) | 700 | 400 | 15 | ≤320 | 4475x1660x1485 |
| FG1345 | 1300×4500 | 1×1200 | 5(0-10) | 8.5 | 1000(500-1000) | 900 | 600 | 22 | ≤550 | 4475x1960x1485 |
| FG1360 | 1300×6000 | 2×1200 | 5(0-10) | 8.5 | 1000(500-1000) | 900 | 600 | 30 | ≤550 | 6195x1960x1680 |
| FG1660 | 1600×6000 | 2×1200 | 5(0-10) | 8.5 | 1000(500-1000) | 1200 | 1000 | 30 | ≤850 | 6195x2260x1680 |
| FG2060 | 2000×6000 | 2×1200 | 5(0-15) | 8.5 | 1000(500-1000) | 1500 | 1600 | 45 | ≤1350 | 6195x2260x1680 |
| FG1354G | 1300×5000 | 4×900 | 5(0-10) | 8 | 1000(500-1000) | 900 | 500 | 22 | ≤550 | 4998x2601x2571 |
| FG1654G | 1600×5000 | 4×900 | 5(0-10) | 8 | 1000(500-1000) | 1200 | 850 | 30 | ≤850 | 4998x2931x2571 |
| FG2054G | 2000×5000 | 4×900 | 5(0-10) | 8 | 1000(500-1000) | 1200 | 1200 | 45 | ≤1300 | 4998x3481x2625 |
| Vibrating Feeder(shock excitation electric engine) | ||||||||||
| Model | Tank size | Maximum feed size | Capacity | Double-amplitude | Installation angle | Bar length | Speed | Power | Overall Dimension | |
| FG Series | (mm) | (mm) | (t/h) | (mm) | (°) | (mm) | (r/min) | (kw) | (mm) | |
| FG0936 | 900×3600 | 500 | 280 | 5-8 | 0 | 2×700 | 1000 | 2.9×2 | 3600×1520×1481 | |
| FG0942 | 900×4200 | 500 | 280 | 5-8 | 0 | 2×700 | 1000 | 2.9×2 | 4200×1520×1481 | |
| FG1245 | 1200×4500 | 700 | 450 | 5-8 | 0 | 2×900 | 1000 | 6×2 | 4500×1840×1555 | |
| Model | Tank specification | Max feed size | Capacity | Double-amplitude | Installation angle | Vibrational frequency | Power | Overall dimension | ||
| FP Series | (mm) | (mm) | (t/h) | (mm) | (°) | (rpm) | (kw) | (mm) | ||
| FPZ0816 | 800×1600×250 | 265 | 180-220 | 3-4 | 0 | 1470 | 0.75x2 | 1789x1284x1544 | ||
| FPZ1220 | 1200×2000×300 | 400 | 400-500 | 3-4 | 0 | 1470 | 1.2x2 | 2217x1597x1548 | ||
| FPZ1623 | 1600×2250×300 | 500 | 700-850 | 3-4 | 0 | 970 | 2×2 | 2467x2151x1211 | ||
| Model | Slot size | Rotate speed | Max feed size | Capacity | Power | Overall dimension | ||||
| ZSW Series | (mm) | (r/min) | (mm) | (t/h) | (kw) | (mm) | ||||
| ZSW180x80 | 1800×800 | 970 | 300 | 30-80 | 2x1.5 | 2200×1100×800 | ||||
| ZSW200x120 | 2000×1200 | 970 | 300 | 80-500 | 2x2.2 | 2000×1200×855 | ||||
| ZSW300x90 | 3000×900 | 970 | 300 | 40-100 | 2x2.2 | 3050×1430×1550 | ||||
| Model | Feed size(mm) | Capacity | Power | Frequency of vibration | Double-amplitude | Exciting force | ||||
| GZG Series | (mm) | (t/h) | (kw) | (hz) | (mm) | (kn) | ||||
| GZG-25 | 60 | 25 | 0.25x2 | 25 | 2-3 | 2.5x2 | ||||
| GZG-30 | 80 | 30 | 0.4x2 | 25 | 2-3 | |||||
| GZG-50 | 90 | 50 | 0.4x2 | 25 | 2-3 | |||||
| GZG-60 | 90 | 60 | 0.4x2 | 25 | 2-4 | |||||
| GZG-80 | 100 | 80 | 0.75x2 | 25 | 2-4 | |||||
| GZG-100 | 150 | 100 | 0.75x2 | 25 | 2-5 | |||||
| GZG-200 | 180 | 200 | 1.5x2 | 25 | 2-5 | |||||
| GZG-250 | 200 | 250 | 1.5x2 | 25 | 2-5 | |||||
| GZG-300 | 200 | 300 | 1.5x2 | 25 | 2-5 | |||||
| GZG-400 | 250 | 400 | 2x2 | 25 | 2-5 | |||||
| GZG-500 | 300 | 500 | 2x2 | 25 | 2-5 | |||||
| GZG-750 | 350 | 750 | 2.5x2 | 25 | 3-5 | |||||
| GZG-1000 | 400 | 1000 | 3.75x2 | 25 | 4-6 | |||||
Product Uses
Project: Primary crushing station at a copper mine in Chile
Equipment : GZD-1800×8000 heavy-duty vibrating feeder (corrosion-resistant stainless steel trough)
Results :
* Stable handling of ≤1000mm copper ore (with 12% clay content)
* Achieved 2000TPH production when paired with jaw crusher
* Liner service life reached 18 months (3x longer than previous chain feeder)
Project : Granite aggregate plant in Vietnam
Equipment : ZSW-600×1500 variable-frequency vibrating feeder
Results :
* Precise feed control (±3% accuracy) optimized cone crusher cavity filling rate
* Energy-saving mode reduced power consumption by 35%
* Remote monitoring enabled unmanned operation
Project : Blast furnace feeding system at an Indian steel mill
Equipment : High-temperature vibrating feeder (handles 150°C sintered ore)
Results:
* 3 years of continuous operation without failure
* 70% lower maintenance costs compared to traditional apron feeder
Project : Waste incineration plant in Germany
Equipment: Sealed dust-proof vibrating feeder (IP66 rating)
Results:
* Processed mixed waste (containing plastics/metals) without jamming
* Dust emissions <5mg/m³ (meets EU standards)
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: Does AXSON offer on-site support?
A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.
5 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
6 Q: Can you provide a turnkey solution for the complete crushing plant?
A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets
7 Q: How to select the proper equipment model?
A: Please confirm the following details:
1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)
2.>Feed size of raw material? (in millimeters)
3.>Required finished product size? (in millimeters)
4.>Production capacity requirements? (in tons per hour)
8 Q: Do you provide customized components and optional configurations?
A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.
9 Q: Why Choose Us as Your Equipment Manufacturer?
A: We don’t just deliver high-quality, cost-effective products—we also provide:
1.Customized solutions tailored to your needs
2. Professional end-to-end service
3. A more patient, detail-oriented, and responsible team
4. 24/7 support to ensure smooth operations
