Product Description

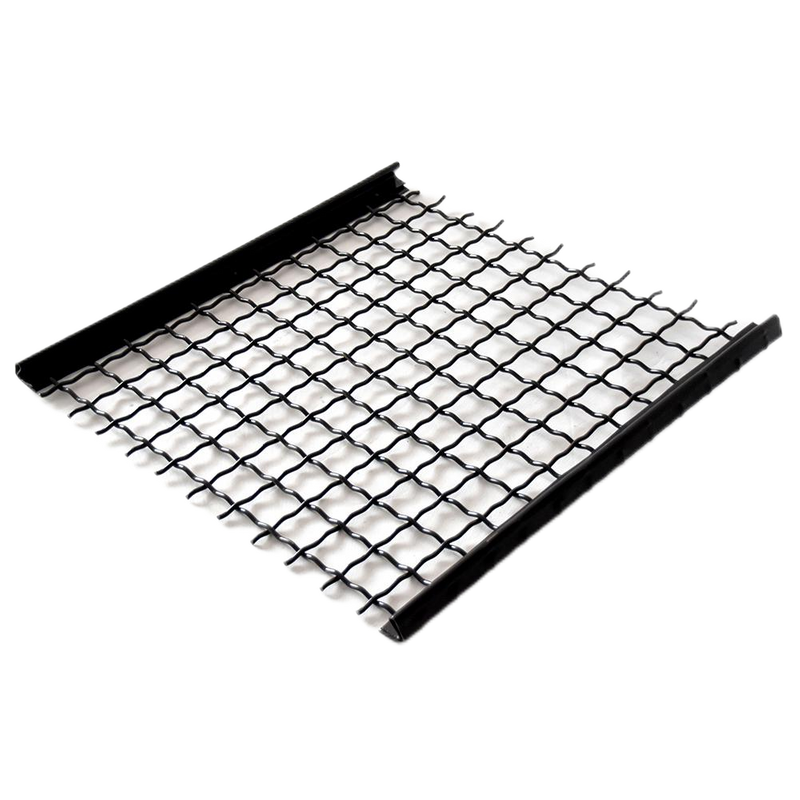

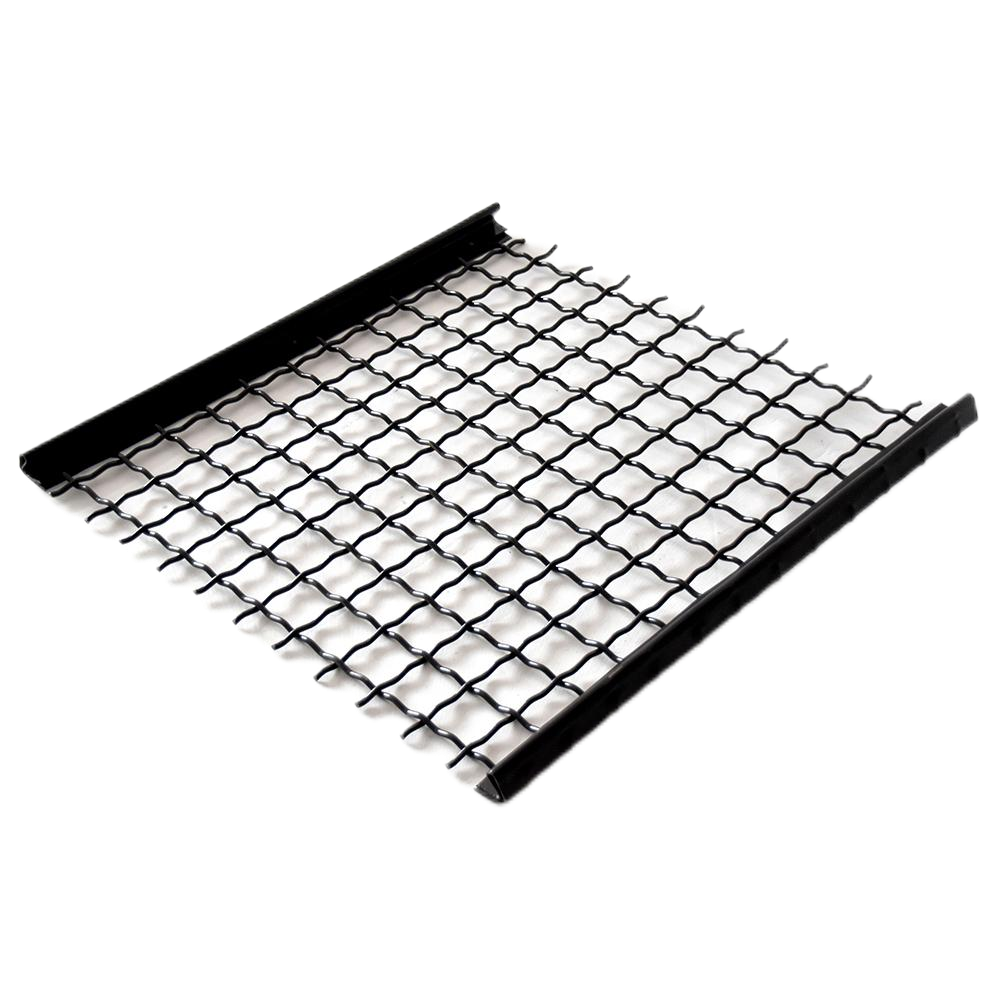

Metal Screen Mesh Advantages & Features
1.High Strength & Durability
Made from metals like high-carbon steel, stainless steel, or manganese steel, ensuring long-lasting performance under heavy loads.
2.Excellent Wear & Abrasion Resistance
Ideal for screening abrasive materials like rocks, ores, and aggregates without rapid degradation.
3.Corrosion Resistance
Stainless steel & galvanized options resist rust, making them suitable for wet or chemically harsh environments.
4.Precise Screening & Filtration
Uniform mesh openings ensure accurate particle separation for better efficiency in mining and aggregate processing.
5.Heat & Fire Resistance
Metal meshes withstand high temperatures, unlike plastic or rubber alternatives.

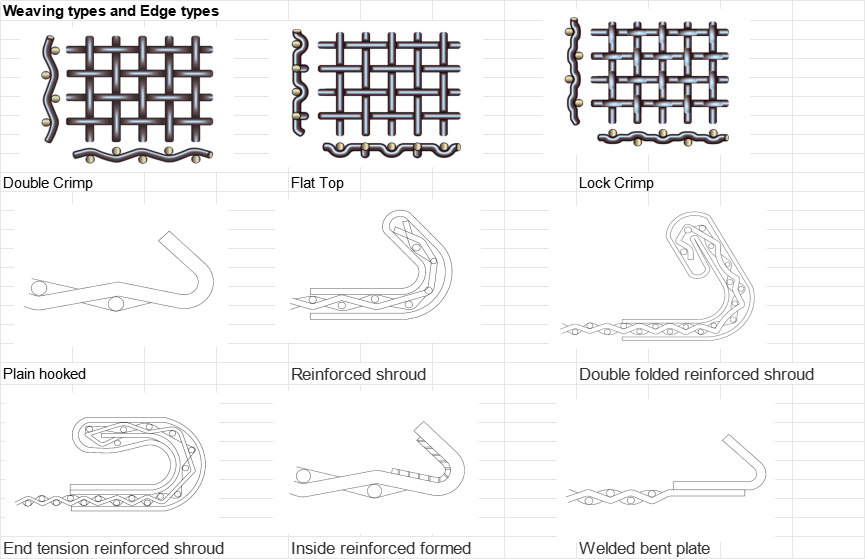

6.Customizable Openings & Weave Patterns
Available in square, rectangular, or slotted openings with different wire thicknesses for specific needs.
7.Easy Installation & Low Maintenance
Modular designs allow quick replacement, reducing downtime in industrial operations.
8.Cost-Effective Long-Term Solution
Longer lifespan compared to synthetic meshes, reducing replacement frequency.
9.Vibration & Impact Resistance
Reinforced metal meshes handle heavy vibrations from screening machines without warping.
Technical Parameters
| NO. | GRADE | C | Si | Mn | mm |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.00-6.00 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | |
| 4 | 60 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.00-14.0 |
| Table 1: 65MN Material Chemical Composition (%) | ||||||
| Material | C | Si | Mn | Cr | Ni | Cu |
| 65Mn steel | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.25 | ≤0.30 | ≤0.25 |
| Example: 6.5mm | 0.66 | 0.25 | 0.98 | 0.04 | 0.01 | 0.03 |
| Item# | Mesh Aperture | Wire Dia. | Item# | Mesh Aperture | Wire Dia. | Item# | Mesh Aperture | Wire Dia. |
| 1 | 1.0mm | 0.6mm 0.7mm 0.8mm | 16 | 12.5mm | 4mm 5mm 6mm | 31 | 28.0mm | 6mm,7mm,8mm |
| 2 | 1.5mm | 0.9mm 0.8mm 1mm | 17 | 13.0mm | 4mm 5mm 6mm | 31 | 30.0mm | 6mm 7mm 8mm |
| 3 | 1.6mm | 1.2mm 1.3mm 1.4mm | 18 | 14.0mm | 4mm 5mm 7mm | 32 | 32.0mm | 6mm 7mm 8mm |
| 4 | 2.0mm | 1.5mm 1.6mm 1.8mm | 19 | 15.0mm | 4mm 5mm 7mm | 33 | 35.0mm | 6mm 7mm 8mm |
| 5 | 3.0mm | 1.8mm 1.9mm 2mm | 20 | 16.0mm | 5mm 6mm 7mm | 34 | 38.0mm | 6mm 7mm 8mm |
| 6 | 4.0mm | 2mm 2.5mm 3mm | 21 | 17.0mm | 5mm 6mm 7mm | 35 | 40.0mm | 6mm 7mm 8mm |
| 7 | 5.0mm | 2mm 2.5mm 3mm | 22 | 18.0mm | 5mm 7mm 8mm | 36 | 45.0mm | 7mm 9mm 10mm |
| 8 | 6.0mm | 2.5mm 3mm 4mm | 23 | 19.0mm | 5mm 7mm 8mm | 37 | 50.0mm | 8mm 9mm 10mm |
| 9 | 7.0mm | 2.5mm 3mm 4mm | 24 | 20.0mm | 5mm 7mm 8mm | 38 | 55.0mm | 8mm 9mm 10mm |
| 10 | 8.0mm | 3mm 4mm 5mm | 25 | 21.0mm | 6mm 7mm 8mm | 39 | 60.0mm | 10mm 11.2mm 12.7mm |
| 11 | 9.0mm | 3mm 4mm 5mm | 26 | 22.0mm | 6mm 7mm 8mm | 40 | 65.0mm | 10mm 11.2mm 12.7mm |
| 12 | 9.5mm | 3mm 4mm 5mm | 27 | 23.0mm | 6mm 7mm 8mm | 41 | 75.0mm | 10mm 11.2mm 12.7mm |
| 13 | 10.0mm | 3mm 4mm 5mm | 28 | 24.0mm | 6mm 7mm 8mm | 42 | 80.0mm | 10mm 11.2mm 12.7mm |
| 14 | 11.0mm | 3mm 4mm 5mm | 29 | 25.0mm | 6mm 7mm 8mm | 43 | 90.0mm | 10mm 11.2mm 12.7mm |
| 15 | 12.0mm | 4mm 5mm 6mm | 30 | 26.0mm | 6mm 7mm 8mm | 44 | 100.0mm | 10mm 11.2mm 12.7mm |
Product Uses
1.Mining and Aggregate Processing
Ore Screening: Used for particle size classification of coal, iron ore, gold ore, and other minerals.
Aggregate Screening: Separates sand, gravel, and crushed stone at quarries for construction materials.
Ore Washing and Dewatering: Stainless steel mesh is used for dewatering and slurry filtration in wet mineral processing.
2.Construction and Building Materials Industry
Concrete Aggregate Screening: Ensures sand and gravel meet construction size specifications.
Reinforcing Mesh: Welded metal mesh used for concrete reinforcement (e.g., floors, walls).
Scaffolding Safety Netting: Galvanized wire mesh serves as protective fencing.
FAQ
1 Q: Is AXSON a factory or a trading company?
A; AXSON is a factory.
2 Q: How long is the warranty period?
A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).
3 Q:What is the payment terms?
A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).
4 Q: How long is your delivery time?
A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.
