Vibrating Screen YK Series

AXSON Vibrating screen is the use of oscillators excited by the oscillating type vibration and work. The upper rotating weight of the vibrator causes the screen surface to produce plane cyclotron vibration, while the lower rotating weight causes the screen surface to produce conical gyrotron vibration, and the combined effect causes the screen surface to produce complex rotational vibration. Its vibration trajectory is a complex space curve. The curve is projected as a circle on the horizontal plane and as an ellipse on the vertical plane. The amplitude can be changed by adjusting the exciting force of the upper and lower rotating weights.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Vibrating Screen Key Advantages & Features

1. High Efficiency & Superior Capacity

Multi-layer screen design : 2-5 layers optional, grading accuracy >95% (meets GB/T 14684 standard)

High throughput : Max. screening area up to 25㎡ per unit, capacity up to 1500TPH (aggregate applications)

Case study : 40% higher screening efficiency in an iron ore project, replacing two conventional screens

2. Smart Adjustment & Precise Control

Variable frequency drive : 0-100% stepless vibration frequency adjustment (700-3600 RPM)

Adjustable angle : 15°-35° electric screen tilt adjustment for different materials

IoT function : Real-time monitoring of bearing temperature/vibration amplitude with fault pre-warning

3. Robust Construction & Easy Maintenance

Heavy-duty box : Q345B steel + robotic welding (50% longer lifespan vs standard screens)

Modular screen panels : Quick-change system (single operator completes in 30 mins)

Lubrication system : Automatic centralized lubrication (500-hour maintenance intervals)

4. Eco-Friendly & Energy Saving

Enclosed design : Pulse dust collection ports (emissions <5mg/m³)

Energy-saving motors : 25-40% less power consumption (patented technology)

Noise reduction : Operational noise <75dB (CE noise certified)

5. Multi-Functional Adaptability

Cross-industry applications :

* Mining : Handles wet/sticky ores (optional anti-clogging screens)

* Construction waste : Automatic rebar separation (magnetic separator available)

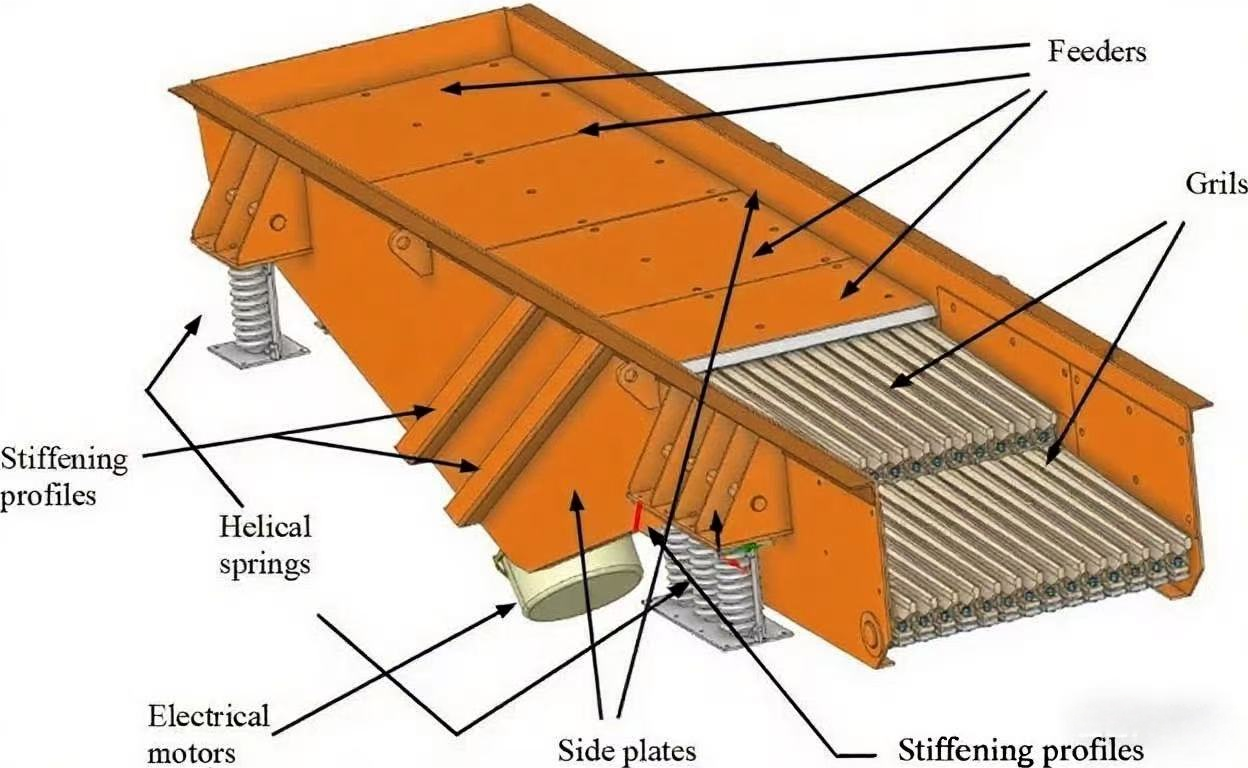

* Food processing : Food-grade stainless steel (304/316L optional)

Technical Parameters

Model	Deck dimension	Decks	Leaning angle of screen	Top deck max.opening	Maximum feed size	Speed	Double amplitude	Capacity	Power	Overall dimension
YK Series	(mm)	(/)	(°)	(mm)	(mm)	(r/min)	(mm)	(t/h)	(kw)	(mm)
2YK1545	1500×4500	2	18(18-25)	2-70	200	800-900	7-12	45-380	11	4796x3190x2829
3YK1545	1500×4500	3	18(18-25)	2-70	200	800-900	7-12	45-380	15	4796x3190x3407
2YK1845	1800×4500	2	18(18-25)	2-70	200	800-900	7-12	60-450	15	4797x3490x2853
3YK1845	1800×4500	3	18(18-25)	2-70	200	800-900	7-12	60-450	22	4797x3623x3431
2YK1860	1800x6000	2	18(18-25)	2-70	200	800-900	7-10	75-600	15	6223x3607x3437
3YK1860	1800x6000	3	18(18-25)	2-70	200	800-900	7-12	75-600	30	6223x3648x4016
4YK1860	1800x6000	4	18(18-25)	2-70	200	800-900	7-12	75-600	37	6223x3670x4436
2YK2160	2100x6000	2	18(18-25)	2-70	200	800-900	7-12	85-700	22	6223x3907x3437
3YK2160	2100x6000	3	18(18-25)	2-70	200	800-900	7-12	85-700	30	6223x3948x4016
4YK2160	2100x6000	4	18(18-25)	2-70	200	800-900	7-11	85-700	37	6223x3970x4436
2YK2460	2400x6000	2	18(18-25)	2-70	200	800-900	7-12	100-800	22	6223x4207x3437
3YK2460	2400x6000	3	18(18-25)	2-70	200	800-900	7-11	100-800	30	6223x4248x4016
4YK2460	2400x6000	4	18(18-25)	2-70	200	800-900	7-10	100-800	37	6223x4270x4436
2YK2760	2700x6000	2	18(18-25)	2-70	200	800-900	7-12	120-900	30	6223x4550x3469
3YK2760	2700x6000	3	18(18-25)	2-70	200	800-900	7-11	120-900	37	6223x4570x4308
2YK3072	3000x7200	2	20(20-25)	2-90	250	800-900	7-11	150-1200	37	7277x4820x4238
2YK3075	3000x7500	2	20(20-25)	2-150	270	800-900	7-12	200-1850	22x2	7419x4909x4298
3YK3075	3000x7500	3	20(20-25)	2-150	270	800-900	7-12	200-1850	30x2	7419x4930x5069
2YK3680	3600x7500	2	20(20-25)	2-150	300	800-900	7-12	225-2250	30x2	7923x5540x4267
3YK3680	3600x7500	3	20(20-25)	2-150	300	800-900	7-12	225-2250	37x2	7844x5601x5308

Product Uses

Vibrating Screen - Product Uses

1. Mining Industry

Ore Classification :

● Pre-screening after primary crushing (separation of ≤300mm ores)

● Precise grading after fine crushing (multi-range: 0-5mm/5-10mm/10-25mm)

● Case: A copper mine replaced spiral classifiers with a 3-layer vibrating screen, reducing energy consumption by 60%

Tailings Dry Discharge :

* Achieves <15% moisture content in tailings when paired with dewatering screens

* Equipped with polyurethane screen panels (service life >12 months)

2. Aggregate Production

Natural Sand Screening :

* Removes impurities (shells, silt) from river/sea sand

* Controls fineness modulus (FM 2.2-3.0 adjustable)

Manufactured Sand Lines :

* Synchronized output with sand makers (0-3mm/3-5mm/5-10mm)

* Case: A 1000TPH granite aggregate project achieved 98% screening efficiency

3. Metallurgy Industry

Sinter/Pellet Screening :

* High-temperature design (≤200°C)

* Stainless steel screens for corrosive high-sulfur materials

Steel Slag Processing :

* Size classification after magnetic separation (0-10mm/10-30mm)

* Wear-resistant tungsten carbide screen plates

4. Recycling & Environmental

Construction Waste Recycling :

* Separates rebar/light materials (air separation + magnetic separation)

* RDF fuel preparation (screens combustibles with >4000kcal/kg calorific value)

Municipal Waste Treatment:

* Organic waste screening (50mm aperture bouncing screens)

* Plastic film sorting (3-tier step screens)

5. Chemical & Food Industries

Fertilizer/Plastic Pellet Grading :

* Food-grade 304 stainless steel construction

* Anti-static design (for PE/PP pellets)

Grain Processing :

* Removes impurities from rice/wheat (multi-layer precision screening)

* ATEX-certified explosion-proof vibration motors

FAQ

1 Q: Is AXSON a factory or a trading company?

A; AXSON is a factory.

2 Q: How long is the warranty period?

A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).

3 Q:What is the payment terms?

A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).

4 Q: Does AXSON offer on-site support?

A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.

5 Q: How long is your delivery time?

A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.

6 Q: Can you provide a turnkey solution for the complete crushing plant?

A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets

7 Q: How to select the proper equipment model?

A: Please confirm the following details:

1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)

2.>Feed size of raw material? (in millimeters)

3.>Required finished product size? (in millimeters)

4.>Production capacity requirements? (in tons per hour)

8 Q: Do you provide customized components and optional configurations?

A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.

9 Q: Why Choose Us as Your Equipment Manufacturer?

A: We don’t just deliver high-quality, cost-effective products—we also provide:

1.Customized solutions tailored to your needs

2. Professional end-to-end service

3. A more patient, detail-oriented, and responsible team

4. 24/7 support to ensure smooth operations
