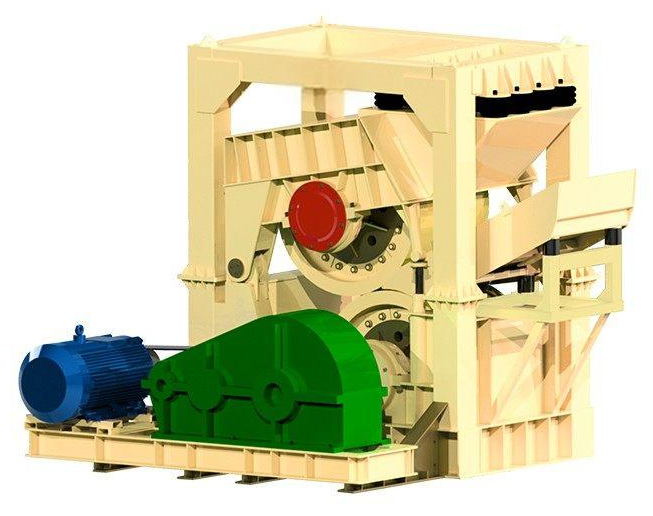

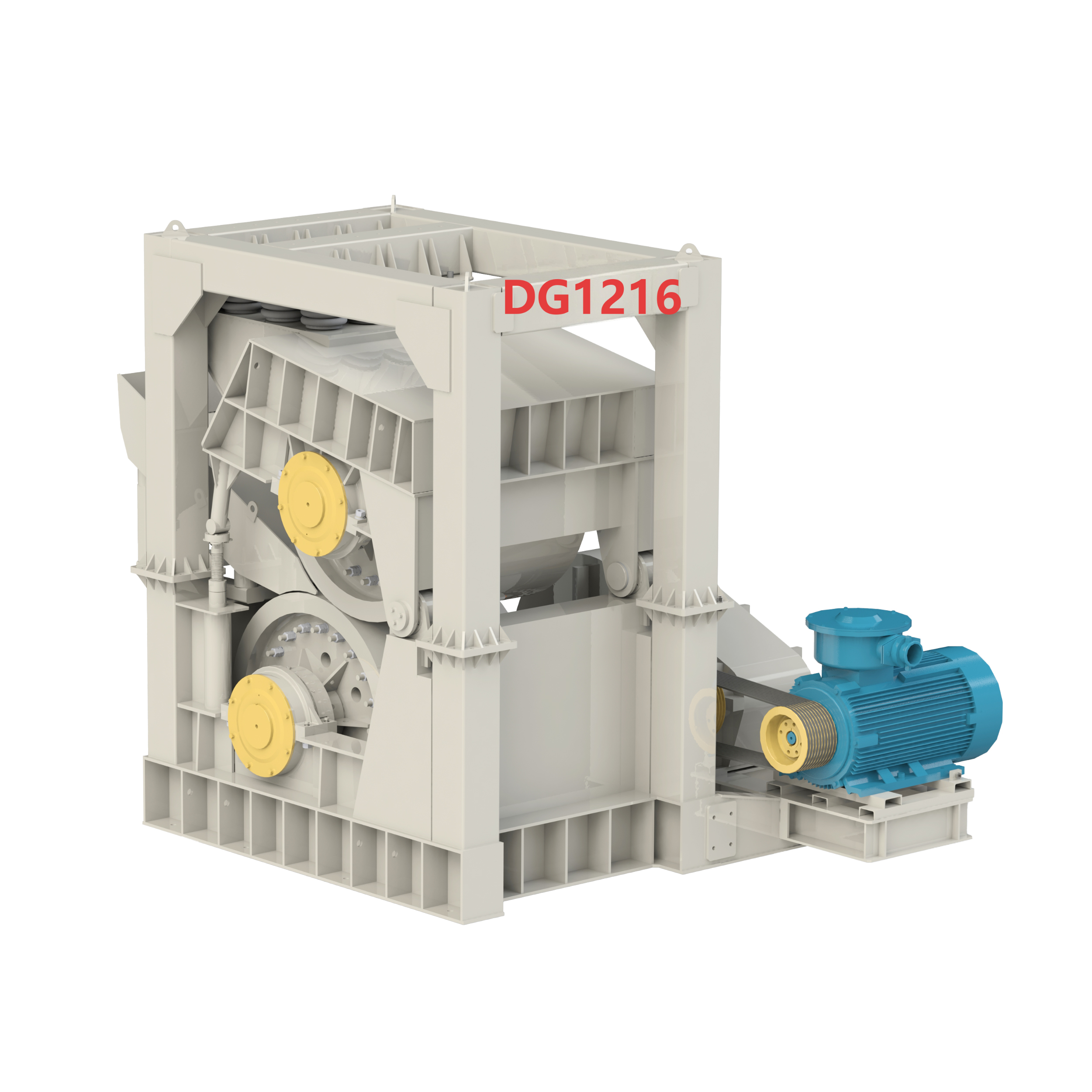

Double Roller Sand Making Machine DR Series

High-Pressure Double Roller Sand Making Machine  Advantages & Features

1.High-Efficiency Sand Production

Utilizes two high-strength rollers to crush and shape raw materials (e.g., granite, basalt, limestone) into uniform sand particles.

Adjustable roller gap (0.1–5mm) ensures customizable output size for different applications.

2.Superior Wear Resistance

Rollers made of tungsten carbide or high-chromium alloy for extended durability in abrasive environments.

Replaceable roller sleeves minimize downtime and maintenance costs.

3.High-Pressure Grinding Technology

Generates 50–300 N/mm² interparticle crushing force, improving sand yield and reducing energy consumption by 20–30% compared to conventional crushers.

Produces micro-cracks in particles, enhancing downstream grinding efficiency.

4.Low Dust & Noise Pollution

Enclosed structure with dust suppression system meets ISO environmental standards.

Smooth rolling operation reduces vibration and noise (<75 dB).

5.Smart Control System (Optional)

IoT-enabled monitoring of roller pressure, temperature, and wear for predictive maintenance.

Automated gap adjustment via hydraulic system.

High-Pressure Double Roller Sand Making Machine - Product Uses

1. Artificial Sand Production

Concrete Sand Manufacturing: Produces high-quality, cubical-shaped sand (0.1–5mm) for ready-mix concrete, prefabricated components, and high-strength construction applications.

Asphalt & Road Base Materials: Generates uniformly graded sand for bituminous pavements and highway sublayers.

Dry-Mix Mortar: Provides fine aggregates with low moisture content for premium masonry/plastering mortars.

2. Mining & Mineral Processing

Ore Pre-Crushing: Reduces iron/copper/gold ores to 1–5mm before ball milling, improving grinding efficiency by 15–25%.

Diamond/Kimberlite Crushing: Handles ultra-hard materials (up to 300MPa compressive strength) without contamination.

Industrial Mineral Processing: Crushes limestone (for cement), quartz (for glass), and feldspar (for ceramics).

3. Recycling & Waste Valorization

Steel Slag Reprocessing: Transforms metallurgical slag into 0–3mm construction sand, achieving 90%+ utilization rates.

Construction Waste Recycling: Converts demolished concrete/bricks into recycled aggregates (EN 12620 compliant).

Tailings Sand Production: Processes mine tailings to recover fine particles for backfill or secondary use.

4. Specialty Applications

Foundry Sand: Produces high-purity silica sand (AFS 40–100) for casting molds.

Abrasive Material Processing: Crushes garnet, corundum, or silicon carbide for blasting/media applications.

Battery Raw Materials: Prepares spodumene (lithium ore) and graphite to optimize downstream extraction.

1 Q: Is AXSON a factory or a trading company?

A; AXSON is a factory.

2 Q: How long is the warranty period?

A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).

3 Q:What is the payment terms?

A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).

4 Q: Does AXSON offer on-site support?

A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.

5 Q: How long is your delivery time?

A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.

6 Q: Can you provide a turnkey solution for the complete crushing plant?

A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets

7 Q: How to select the proper equipment model?

A: Please confirm the following details:

1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)

2.>Feed size of raw material? (in millimeters)

3.>Required finished product size? (in millimeters)

4.>Production capacity requirements? (in tons per hour)

8 Q: Do you provide customized components and optional configurations?

A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.

9 Q: Why Choose Us as Your Equipment Manufacturer?

A: We don’t just deliver high-quality, cost-effective products—we also provide:

1.Customized solutions tailored to your needs

2. Professional end-to-end service

3. A more patient, detail-oriented, and responsible team

4. 24/7 support to ensure smooth operations
