Vibrating Screen 4YK Series

Vibrating Screen Key Advantages & Features

Our Vibrating Screen features a robust design and high-quality components to ensure reliable performance and long service life. The screen deck is made of high-strength steel mesh or polyurethane panels, which can be easily replaced for different screening requirements. The adjustable amplitude and frequency settings allow for precise control of the screening process, while the simple structure and easy maintenance make it user-friendly. With its high screening efficiency and low energy consumption, our Vibrating Screen is the ideal choice for your screening needs.

Key Features & Benefits

Advanced Circular Vibration Technology

• Uses a cylinder‑type eccentric shaft and eccentric block to generate strong excitation force for circular motion.

• Ensures uniform material movement across the screen surface for reliable classification.

Multi‑Layer Screening Capabilities

• Available in multiple deck configurations (1–4 layers) to meet different separation and sizing requirements.

• Supports grading of materials into different size categories in one pass.

High Screening Efficiency

• Designed with high vibration frequency and optimized inclination angle to maximize throughput and screening accuracy.

• Superior performance in both wet and dry screening applications.

Durable Construction

• Screen box and beam connected with high‑strength bolts for enhanced durability and easier maintenance.

• Heavy‑duty frame built for continuous industrial operation in harsh environments.

Working Principle

The 4YK Series uses an internal eccentric shaft driven by the motor to create a powerful circular vibrating motion. The material on the screen deck is lifted and thrown, causing smaller particles to pass through the mesh while larger particles move forward to discharge outlets. This process enables efficient separation and precise size grading across multiple layers.

Typical Applications

The 4YK Series Vibrating Screen is ideal for use in:
✔ Quarries & Aggregate Processing – Screening stone, gravel, sand, and crushed rock.
✔ Mining & Mineral Processing – Classifying ores and minerals by size.
✔ Construction Materials – Sorting raw and processed building materials.
✔ Coal & Energy Industry – Dewatering, classification, and preparation tasks.
✔ Chemical & Metallurgical Plants – Handling powder, granules, and bulk solids.

Technical Highlights

• Multi‑layer configurations: 1 to 4 decks for differing size outputs.

• High screening efficiency: Optimized vibration parameters for fast classification.

• Robust structure: Bolted construction for strength and simplified maintenance.

• Wide adaptability: Suitable for dry or wet screening applications.

Vibrating Screen - Product Uses

1. Mining Industry

Ore Classification :

● Pre-screening after primary crushing (separation of ≤300mm ores)

● Precise grading after fine crushing (multi-range: 0-5mm/5-10mm/10-25mm)

● Case: A copper mine replaced spiral classifiers with a 3-layer vibrating screen, reducing energy consumption by 60%

Tailings Dry Discharge :

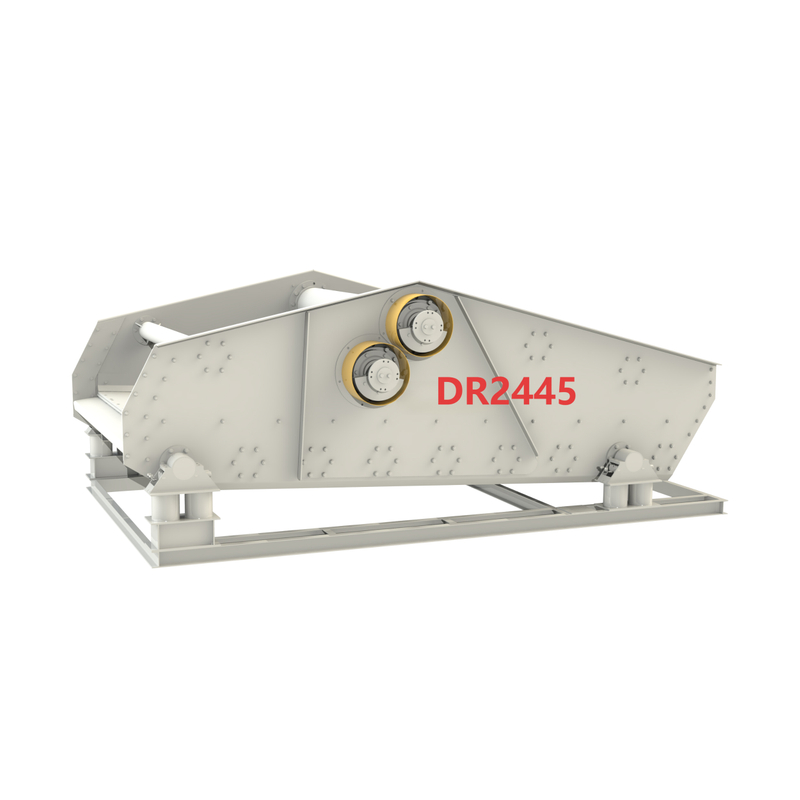

* Achieves <15% moisture content in tailings when paired with dewatering screens

* Equipped with polyurethane screen panels (service life >12 months)

2. Aggregate Production

Natural Sand Screening :

* Removes impurities (shells, silt) from river/sea sand

* Controls fineness modulus (FM 2.2-3.0 adjustable)

Manufactured Sand Lines :

* Synchronized output with sand makers (0-3mm/3-5mm/5-10mm)

* Case: A 1000TPH granite aggregate project achieved 98% screening efficiency

3. Metallurgy Industry

Sinter/Pellet Screening :

* High-temperature design (≤200°C)

* Stainless steel screens for corrosive high-sulfur materials

Steel Slag Processing :

* Size classification after magnetic separation (0-10mm/10-30mm)

* Wear-resistant tungsten carbide screen plates

4. Recycling & Environmental

Construction Waste Recycling :

* Separates rebar/light materials (air separation + magnetic separation)

* RDF fuel preparation (screens combustibles with >4000kcal/kg calorific value)

Municipal Waste Treatment:

* Organic waste screening (50mm aperture bouncing screens)

* Plastic film sorting (3-tier step screens)

5. Chemical & Food Industries

Fertilizer/Plastic Pellet Grading :

* Food-grade 304 stainless steel construction

* Anti-static design (for PE/PP pellets)

Grain Processing :

* Removes impurities from rice/wheat (multi-layer precision screening)

* ATEX-certified explosion-proof vibration motors

1 Q: Is AXSON a factory or a trading company?

A; AXSON is a factory.

2 Q: How long is the warranty period?

A; The warranty period for the equipment is 12 months from the Bill of Lading (B/L) date, with a 6-month warranty for spare parts (excluding wear parts).

3 Q:What is the payment terms?

A; 30% deposit by TT, with the remaining 70% payable before shipment or against copy of Bill of Lading (B/L).

4 Q: Does AXSON offer on-site support?

A; Yes, AXSON can dispatch engineers to provide on-site services, with the client bearing all associated costs for accommodation, meals, and interpreter services.

5 Q: How long is your delivery time?

A; If items are in stock, shipment will be made within 7-10 days. For made-to-order production, the lead time is 30 days.

6 Q: Can you provide a turnkey solution for the complete crushing plant?

A; We offer end-to-end solutions from design to commissioning, with full technical support. We have successfully executed multiple similar mining projects in China and overseas markets

7 Q: How to select the proper equipment model?

A: Please confirm the following details:

1.>Type of ore to be processed? (e.g. gold ore/granite/limestone)

2.>Feed size of raw material? (in millimeters)

3.>Required finished product size? (in millimeters)

4.>Production capacity requirements? (in tons per hour)

8 Q: Do you provide customized components and optional configurations?

A: We offer full customization including engines, screens, painting, etc., along with extensive optional packages.

9 Q: Why Choose Us as Your Equipment Manufacturer?

A: We don’t just deliver high-quality, cost-effective products—we also provide:

1.Customized solutions tailored to your needs

2. Professional end-to-end service

3. A more patient, detail-oriented, and responsible team

4. 24/7 support to ensure smooth operations
