Crusher Wear Parts- Types And Material Selection Guide

I. Overview of Crusher Wear Parts
As essential components of mining equipment, crusher wear parts are widely used in rock crushing and mineral processing. During operation, these parts endure significant impact and abrasion, making the selection of high-quality wear parts critical for ensuring crusher stability and performance.

II. Key Crusher Wear Parts

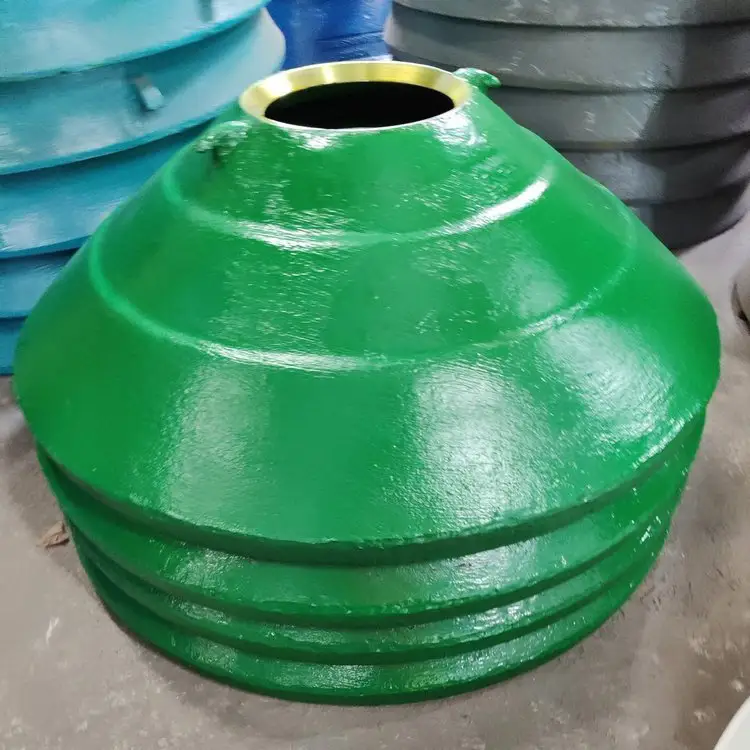

Mantle (Crushing Liner)

A core wear component that forms the crushing chamber with the concave.

Function: Compresses and crushes materials against the concave.

Material: High-strength wear-resistant alloys (e.g., high manganese steel, alloy steel) for optimal abrasion/impact resistance.

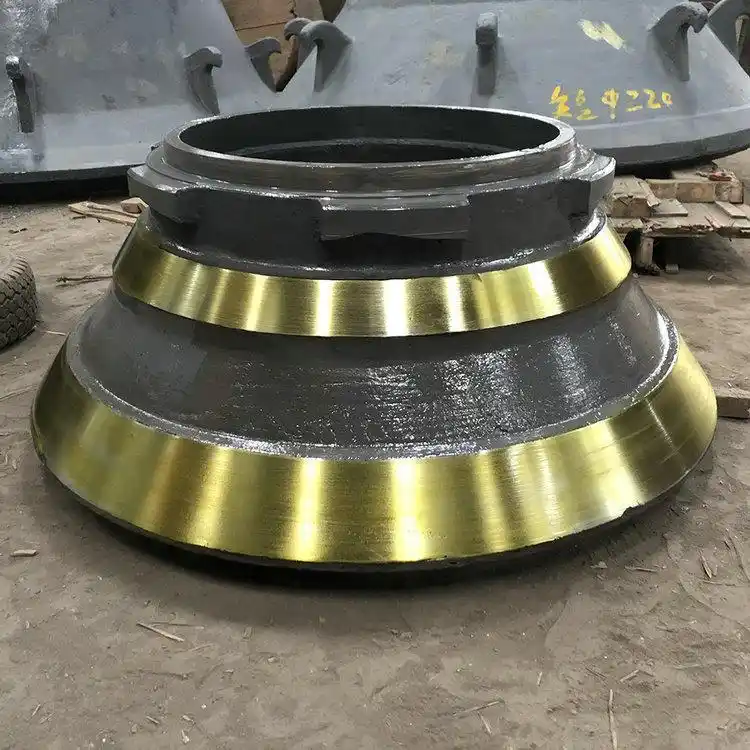

Concave (Fixed Liner)

Works synergistically with the mantle to shape the crushing chamber.

Function: Withstands material impact and compressive forces to achieve desired particle size.

Material: Matches the mantle’s durability standards (high manganese/alloy steel).

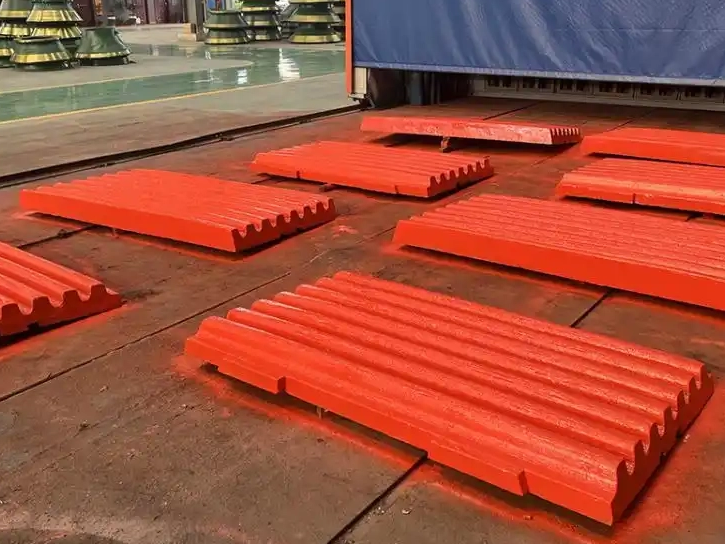

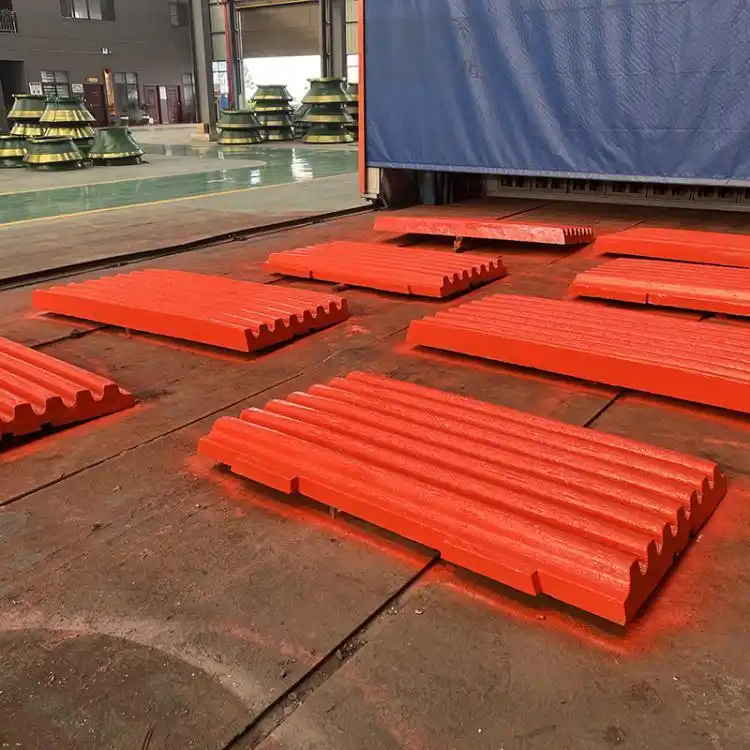

Jaw Plates (for Jaw Crushers)

Installed at the feed inlet for primary size reduction.

Function: Pre-crushes materials to reduce load on the mantle/concave.

Design: Optimized for material type and crushing requirements to balance efficiency and wear life.

III. Material Selection Criteria
Wear part materials are chosen based on:

Material Hardness/Abrasiveness (e.g., granite vs. limestone)

Crusher Type & Operating Conditions (e.g., impact vs. compression crushing)
Common materials include:

High Manganese Steel (Mn13/Mn18): Superior impact resistance for heavy-duty applications.

Alloy Steel/Chromium-Molybdenum (Cr-Mo): Enhanced wear resistance for abrasive materials.

Composite Ceramics: For extreme abrasion environments (optional).

IV. Maintenance Best Practices
To maximize wear part lifespan:

Regular Inspection: Monitor wear patterns (e.g., thickness measurement) and replace parts at recommended intervals.

Contamination Control: Prevent foreign objects (e.g., tramp metal) from entering the crushing chamber.

Lubrication & Cleaning: Ensure proper greasing of bearings and keep components free of debris.

V. Conclusion
Crusher wear parts are pivotal to operational efficiency and product quality. By selecting appropriate materials, adhering to maintenance protocols, and understanding part functionalities, operators can significantly extend equipment service life and boost productivity.

---

Technical Note:

For high-abrasion applications (e.g., quartzite), consider ultra-high chrome iron (Cr27) liners with 2–3× longer life than standard Mn steel.

AXSON’s Smart Wear Monitoring System provides real-time thickness alerts to optimize replacement schedules.

Crusher Wear Parts Selection Guide: Key Considerations

1. Crusher Type-Specific Requirements

Different crushers demand tailored wear part materials due to varying stress modes:

Jaw Crushers:

Primary Stress: Impact loading (e.g., large rock compression)

Recommended Material: High Manganese Steel (Mn18, Mn22) for superior toughness and work-hardening capability.

Impact Crushers (e.g.,反击破):

Primary Stress: Abrasive wear (e.g., sand/stone collisions)

Recommended Material: High-Chromium Iron (Cr20-Cr26) for exceptional abrasion resistance.

Cone Crushers:

Primary Stress: Combined compression + abrasion

Recommended Material: Alloyed Manganese Steel (Mn13Cr2) or Martensitic Steel for balanced wear/impact resistance.

2. Material Characteristics

Select wear parts based on processed materials:

Material Property	Wear Part Requirement	Example Solutions
High Hardness (e.g., granite, basalt)	Ultra-wear-resistant material	Cr27 High-Chrome Iron or Carbide-Enhanced Steel
High Moisture/Corrosivity (e.g., wet limestone)	Corrosion-resistant coating	Ceramic-Embedded Liners or Stainless-Clad Surfaces
Large Feed Size (>500mm)	Impact-resistant alloy	Mn18Cr2 Steel with reinforced support structures

3. Operational Conditions

Adapt materials to workload intensity:

High-Frequency Crushing: Prioritize fatigue-resistant alloys (e.g., Ni-Hard Iron).

Heavy Load/High Impact: Use multi-layer composite materials (e.g., Bimetallic Castings with steel backing + hardened surface).

Continuous Operation: Opt for thermally stable alloys to prevent heat-induced brittleness.

AXSON's Custom Solutions

We engineer wear parts for YOUR specific:
✅ Crusher model (e.g., HP300 cone, CJ612 jaw)
✅ Material profile (SiO2 content, moisture, abrasiveness)
✅ Operational data (tonnage, power draw, maintenance cycles)

Need a wear life optimization plan? Our engineers provide:
① Free Material Lab Analysis (test your ore’s abrasiveness)
② 3D Wear Simulation to predict part longevity
③ On-Site Audits for crusher performance tuning
