Axson Industry Presents: How To Select The Right Crusher

Crusher selection requires a comprehensive evaluation considering material characteristics, crushing requirements, production environment, and other factors. The key points are as follows:

I. Clarify Material Characteristics

Material Type: Different materials suit different crusher types. For example:

    1.） Ore (high hardness): Suitable for jaw crushers or cone crushers.

    2.） Construction waste (mixed materials): Suitable for impact crushers or mobile crushers.

    3.）Coal (brittle): Suitable for hammer crushers.

Material Hardness (Mohs Scale):

    1.） Above Mohs 5 (e.g., granite): Choose a combination like jaw crusher + cone crusher.

    2.） Below Mohs 5 (e.g., limestone): Impact crushers or hammer crushers are viable options.

Material Moisture & Stickiness:** High moisture content (>10%) causes clogging. Select crushers with screening or cleaning devices (e.g., impact crushers) and avoid hammer crushers (prone to clumping).

II. Determine Crushing Requirements

Product Size & Shape:

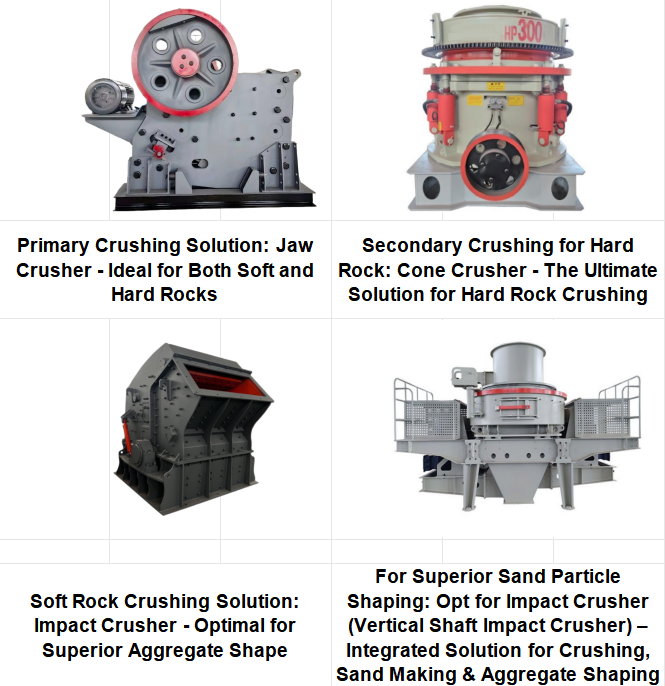

     1.）For uniform particle size and good particle shape (e.g., concrete aggregate), prioritize impact crushers or vertical shaft impactors (VSIs).

     2.）For primary crushing only (e.g., mine primary crushing), a jaw crusher is more suitable.

Production Capacity:** Select based on hourly throughput needs:

      1.）Small scale (<50 t/h): Consider mobile crushing plants or small jaw crushers.

      2.）Large scale (>500 t/h): Requires a combined production line like jaw crusher + cone crusher.

Crushing Stage:

     1.）Single-stage crushing: Choose a hammer crusher or impact crusher.

     2.）Multi-stage crushing (Primary → Secondary → Tertiary): Typically combines a "Jaw crusher + Cone crusher/Impact crusher".

III. Consider Production Environment

Site Conditions:

      1.）Fixed, spacious site: Choose a fixed production line (lower installation cost, stable capacity).

      2.）Dispersed sites or need for mobility (e.g., construction waste processing): Choose a mobile crushing station.

  Environmental Requirements: In areas with strict regulations, select low-noise crushers with good dust control (e.g., enclosed crushers + dust removal systems).

  Automation Needs: For high efficiency and energy savings, choose models with intelligent control systems (e.g., Metso HPe series) capable of real-time monitoring and automatic adjustment.

IV. Other Practical Factors

Equipment Cost & Maintenance:

      Hammer crushers have lower initial costs but frequent wear part (hammers) replacement.

      Cone crushers offer greater durability but are more expensive. Weigh budget against long-term operational costs.

Compatibility with Supporting Equipment:Ensure the crusher matches downstream screening and conveying equipment (e.g., discharge size matching screen aperture) to avoid capacity bottlenecks.

Recommendation: Initially test material samples with different crusher types to evaluate crushing performance. Then narrow down choices based on the factors above. Consult manufacturers for customized solutions if necessary.
