Granite & Tuff Aggregate Processing Plant

Raw Materials: Granite, Tuff

Production Capacity: 250-300 TPH

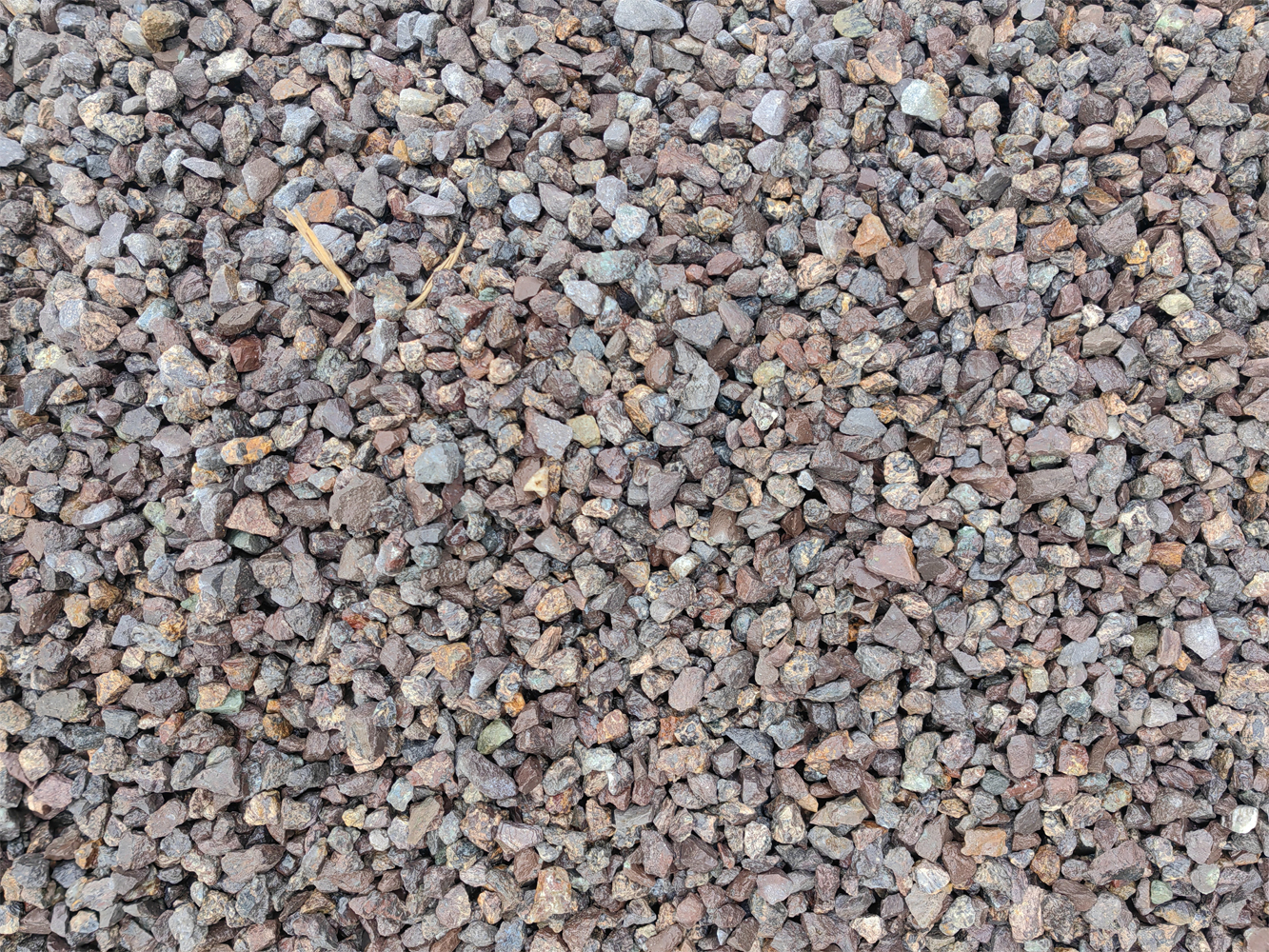

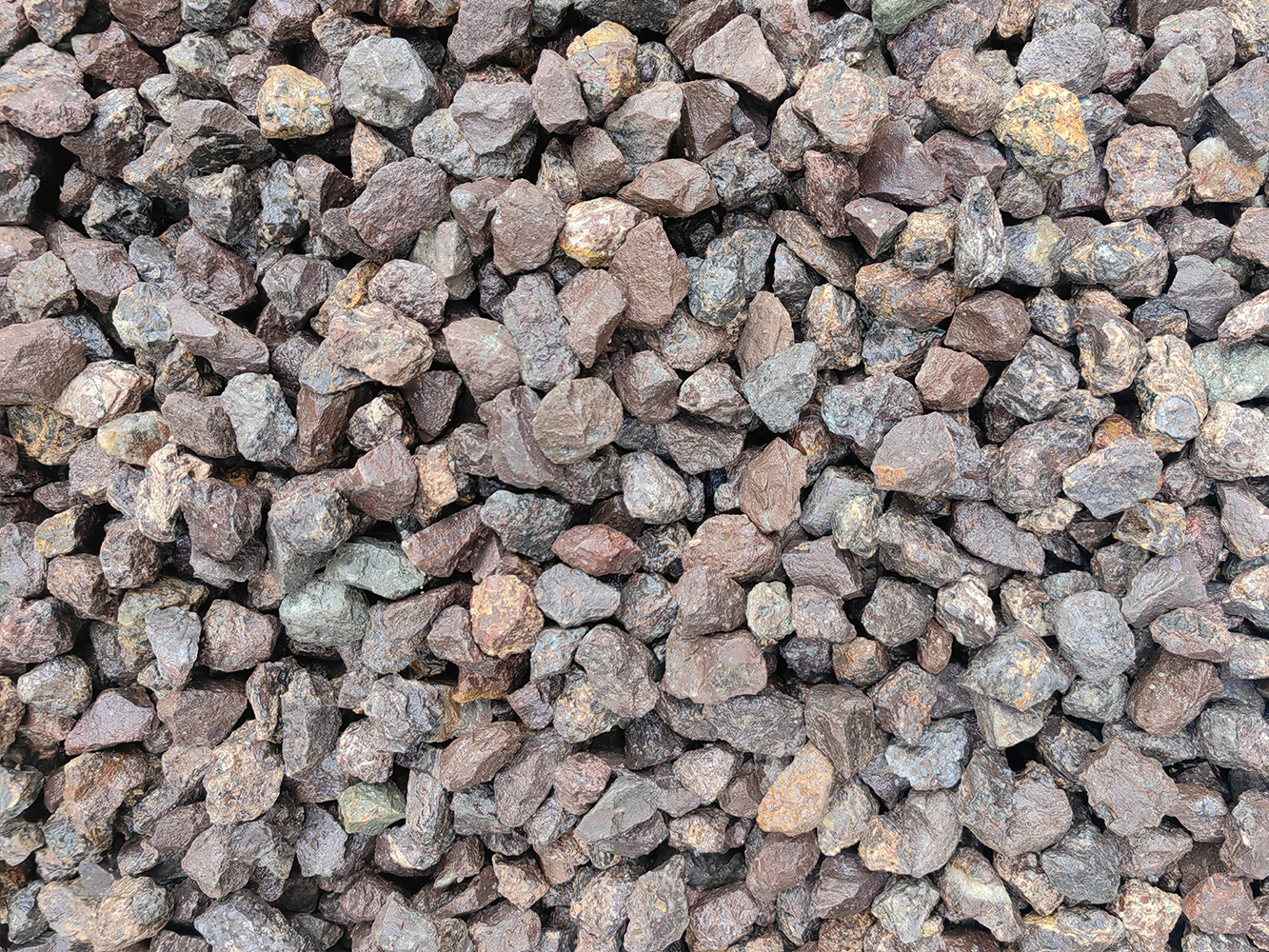

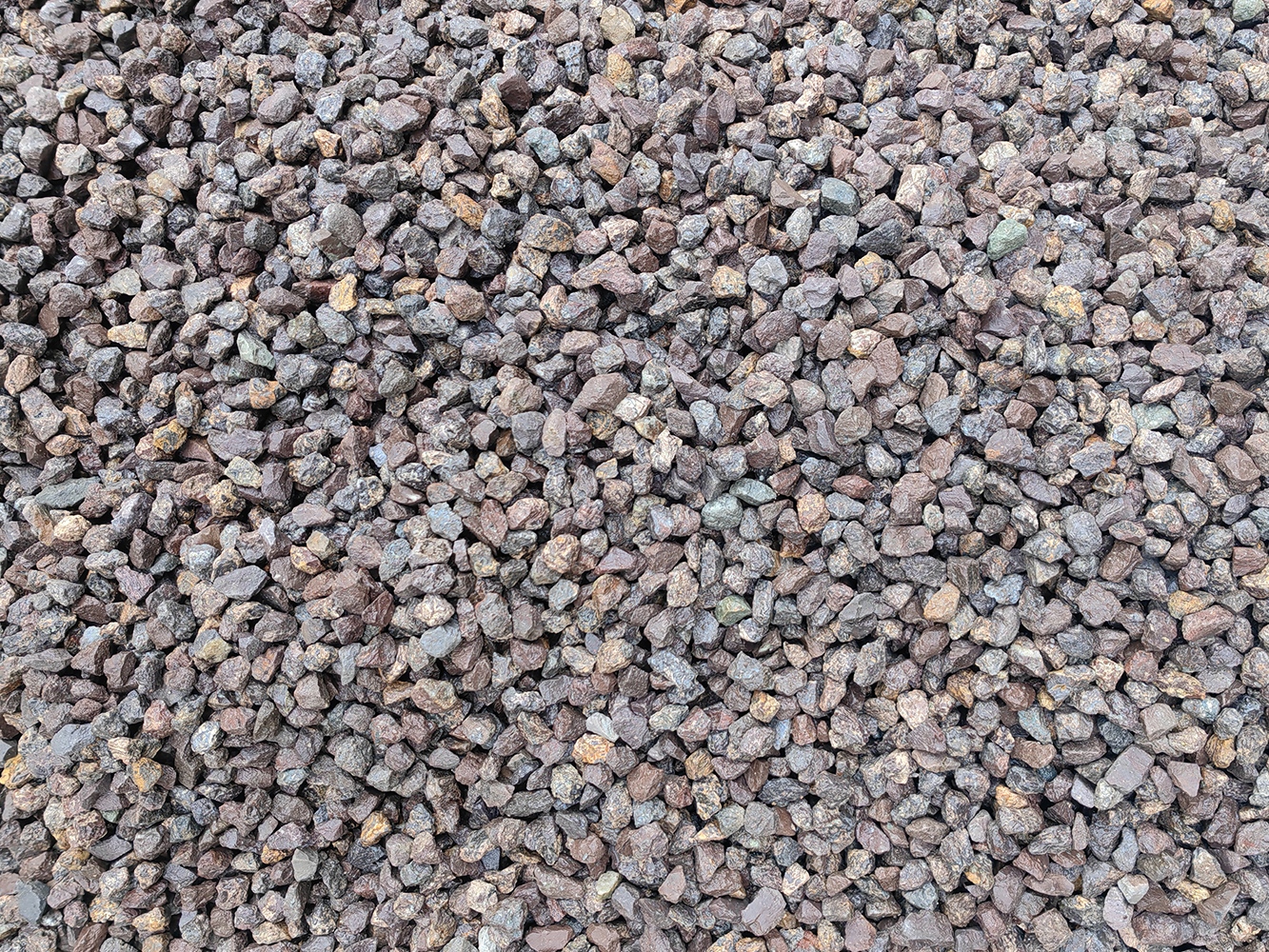

Product Gradation:

• 0-3.5mm (fine sand)

• 3.5-10mm (small aggregate)

• 10-16mm (medium aggregate)

• 16-31.5mm (large aggregate)

Applications:

• Expressway construction

• Ready-mix concrete plants

• Asphalt mixing stations

Project Background:

Located in Zhejiang Province, this project serves an expressway construction contractor specializing in concrete supply, precast components, and asphalt pavement works. All raw materials are sourced from the construction site with Aggregate Crushing Value (ACV) below 10, requiring premium particle shape control.

Main Equipment Configuration:

• FG1360 Vibrating Feeder

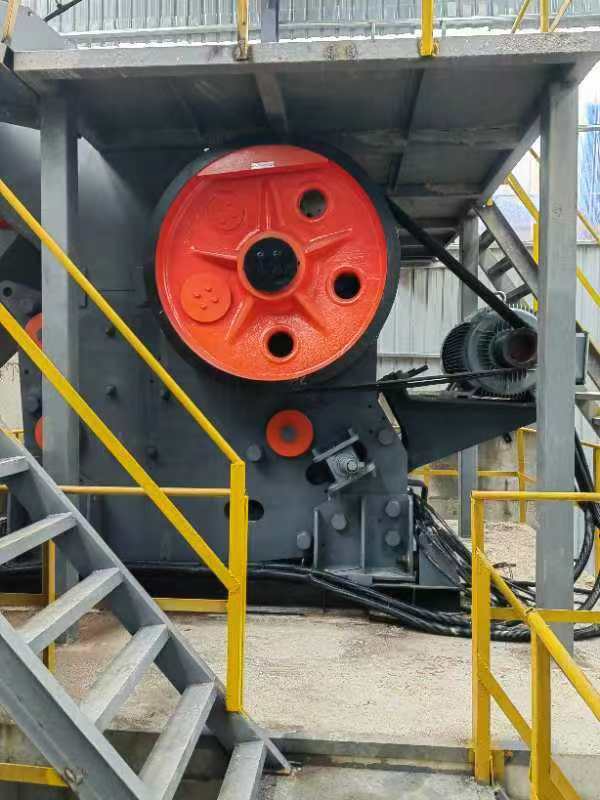

• C110 Jaw Crusher

• HP400 Multi-Cylinder Hydraulic Cone Crusher

• Multi-deck Vibrating Screens

• VSI1150 Vertical Shaft Impact Crusher

• 2× Wheel-type Sand Washers

• 1× Dewatering Screen

• Water Treatment System

Project Delivery:

Executed under EPC (Engineering-Procurement-Construction) contract by AXSON Industrial.

Project Status:

The plant has been successfully commissioned, achieving both designed production capacity and product quality meeting GB/T 14684-2022 standards.
